Zimmermann 303mm Brake Disc Set (2 pcs) 600.3246.20
Part No. 600.3246.20
Check this part fits your car
Select your vehicle and we will confirm it against the 10 variants listed for this part.
$384.00
incl. GST
Front axle
303 x 28 mm
Fits 10 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter303 mm
Thickness when new28 mm
Height57 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore76 mm
ApprovalECE R90 approved
Minimum (discard) thickness26 mm
Part weight8.4 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
600.3246.20
Fits OE / OEM numbers
2H0 615 301 D
2H0 615 301 A
Vehicle fitment
10 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| VW Amarok | 2HA, 2HB… | 2.0 BiTDI | 2010–2012 | 120 kW |
| VW Amarok | 2HA, 2HB… | 2.0 BiTDI 4motion, 2.0 BiTDI CD Highline 4motion | 2010–2012 | 120 kW |
| VW Amarok | 2HA, 2HB… | 2.0 TDI | 2010–2013 | 90 kW |
| VW Amarok | 2HA, 2HB… | 2.0 TDI 4motion | 2010–2013 | 90 kW |
| VW Amarok | 2HA, 2HB… | 2.0 TSI | 2010–2016 | 118 kW |
| VW Amarok | 2HA, 2HB… | 2.0 BiTDI | 2011–now | 132 kW |
| VW Amarok | 2HA, 2HB… | 2.0 BiTDI 4motion, 2.0 CD Highline Trendline BiTDI 4motion | 2011–now | 132 kW |
| VW Amarok | 2HA, 2HB… | 2.0 TDI, 2.0 TDI CS | 2012–now | 103 kW |
| VW Amarok | 2HA, 2HB… | 3.0 TDI 4motion, 3.0 TDI Highline V6 4motion | 2016–now | 165 kW |
| VW Amarok | 2HA, 2HB… | 3.0 TDI 4motion | 2018–now | 190 kW |
Product overview

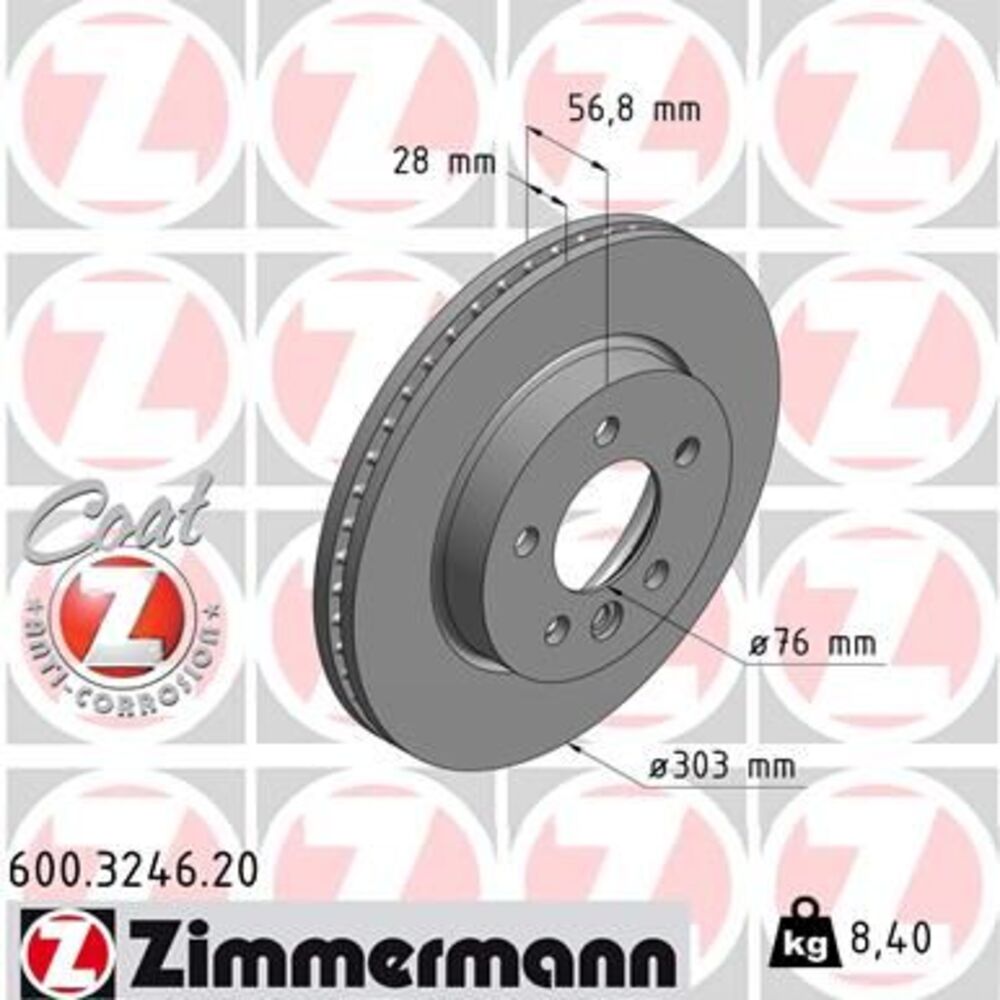

Zimmermann 600.3246.20 is a pair of internally vented brake discs (rotors). Each disc is 303 mm in diameter and 28 mm thick when new, with a 57 mm hat height. The minimum (discard) thickness is 26 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 76 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to VAG OE 2H0 615 301 D and 1 other OE number. Confirmed to fit 10 Australian-market variants; the full list is in the fitment table on this page.
