Zimmermann 345mm Brake Disc Set (2 pcs) 150.3461.20
Part No. 150.3461.20
Check this part fits your car
Select your vehicle and we will confirm it against the 12 variants listed for this part.
$430.00
incl. GST
Rear axle
345 x 24 mm
Fits 12 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeExternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter345 mm
Thickness when new24 mm
Height63 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalKBA 60787
Minimum (discard) thickness22.4 mm
Part weight9.4 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3461.20
Fits OE / OEM numbers
3421 6 763 827
Vehicle fitment
12 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 5 Series | E60 | 530 d | 2002–2005 | 160 kW |
| BMW 5 Series | E60 | 545 i | 2003–2005 | 245 kW |
| BMW 5 Series | E60 | 530 i | 2005–2007 | 190 kW |
| BMW 5 Series | E60 | 530 d | 2005–2007 | 170 kW |
| BMW 5 Series | E60 | 550 i | 2005–2009 | 270 kW |
| BMW 5 Series | E60 | 530 d | 2007–2009 | 173 kW |
| BMW 5 Series | E60 | 540 i | 2007–2009 | 225 kW |
| BMW 5 Series Touring | E61 | 530 i | 2007–2010 | 200 kW |
| BMW 6 Series | E63 | 645 Ci | 2003–2005 | 245 kW |
| BMW 6 Series | E63 | 650 Ci, 650 i | 2005–2010 | 270 kW |
Product overview

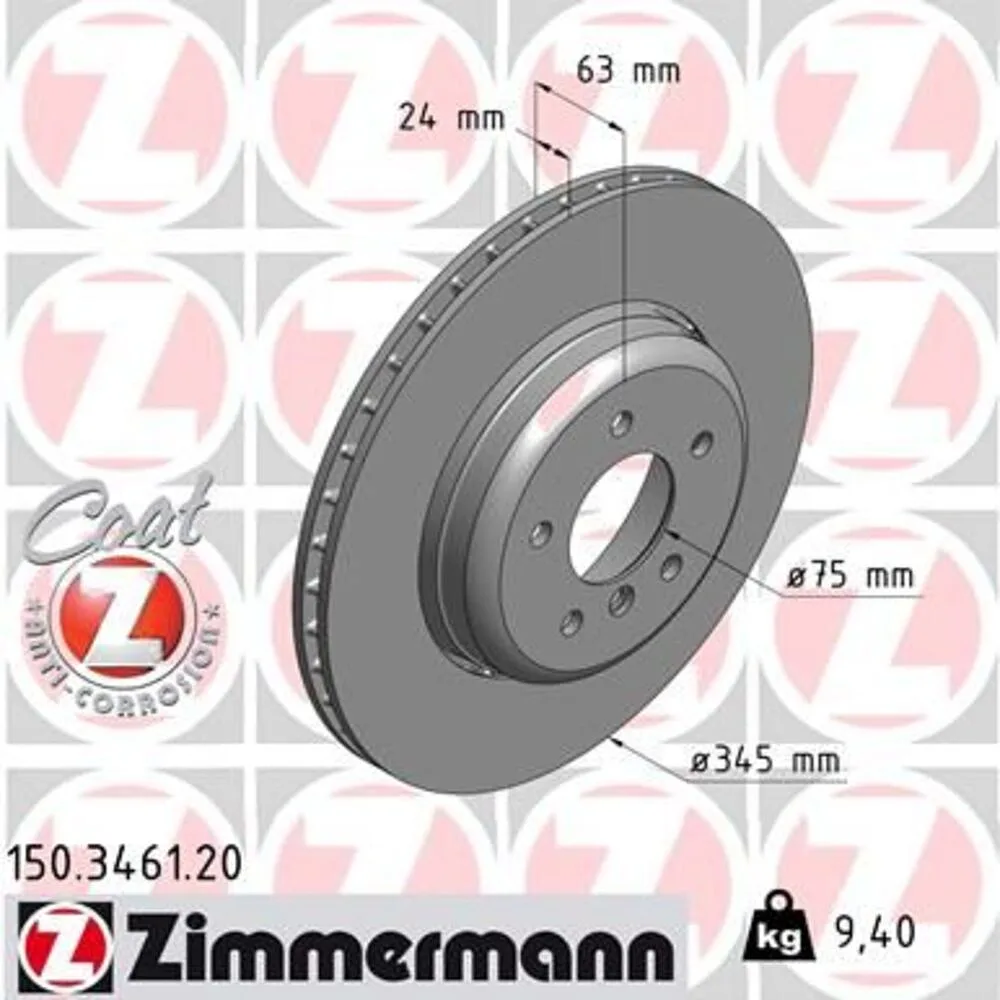

Zimmermann 150.3461.20 is a pair of externally vented brake discs (rotors). Each disc is 345 mm in diameter and 24 mm thick when new, with a 63 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They carry KBA type approval, marked KBA 60787. Cross-referenced to BMW OE 3421 6 763 827. Confirmed to fit 12 Australian-market variants; the full list is in the fitment table on this page.
