Zimmermann 348mm Brake Disc Set (2 pcs) 150.3434.20

Name: Zimmermann 348mm Brake Disc Set (2 pcs) 150.3434.20
Brand: Zimmermann
SKU: ZIM-00066
Price: 548.00 AUD
Availability: InStock

Part No. 150.3434.20

Low stock 1 OE reference

Check this part fits your car

Select your vehicle and we will confirm it against the 13 variants listed for this part.

$548.00 incl. GST

Front axle 348 x 30 mm Fits 13 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter348 mm

Thickness when new30 mm

Height77 mm

Stud holes5

Stud circle (PCD)120 mm

Centre bore79 mm

ApprovalECE R90 approved

Minimum (discard) thickness28.4 mm

Part weight10.1 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

150.3434.20

Fits OE / OEM numbers

3411 6 763 824

Vehicle fitment

13 variants

Make & model	Chassis	Variant	Years	Power
BMW 5 Series	E60	530 d	2002–2005	160 kW
BMW 5 Series	E60	545 i	2003–2005	245 kW
BMW 5 Series	E60	530 i	2005–2007	190 kW
BMW 5 Series	E60	530 d	2005–2007	170 kW
BMW 5 Series	E60	550 i	2005–2009	270 kW
BMW 5 Series	E60	530 d	2007–2009	173 kW
BMW 5 Series	E60	530 i	2007–2009	200 kW
BMW 5 Series	E60	540 i	2007–2009	225 kW
BMW 5 Series Touring	E61	530 i	2007–2010	200 kW
BMW 6 Series	E63	645 Ci	2003–2005	245 kW
BMW 6 Series	E63	650 Ci, 650 i	2005–2010	270 kW
BMW 6 Series Convertible	E64	645 Ci	2004–2005	245 kW
BMW 6 Series Convertible	E64	650 Ci, 650 i	2005–2010	270 kW
No vehicles match your search.

Product overview

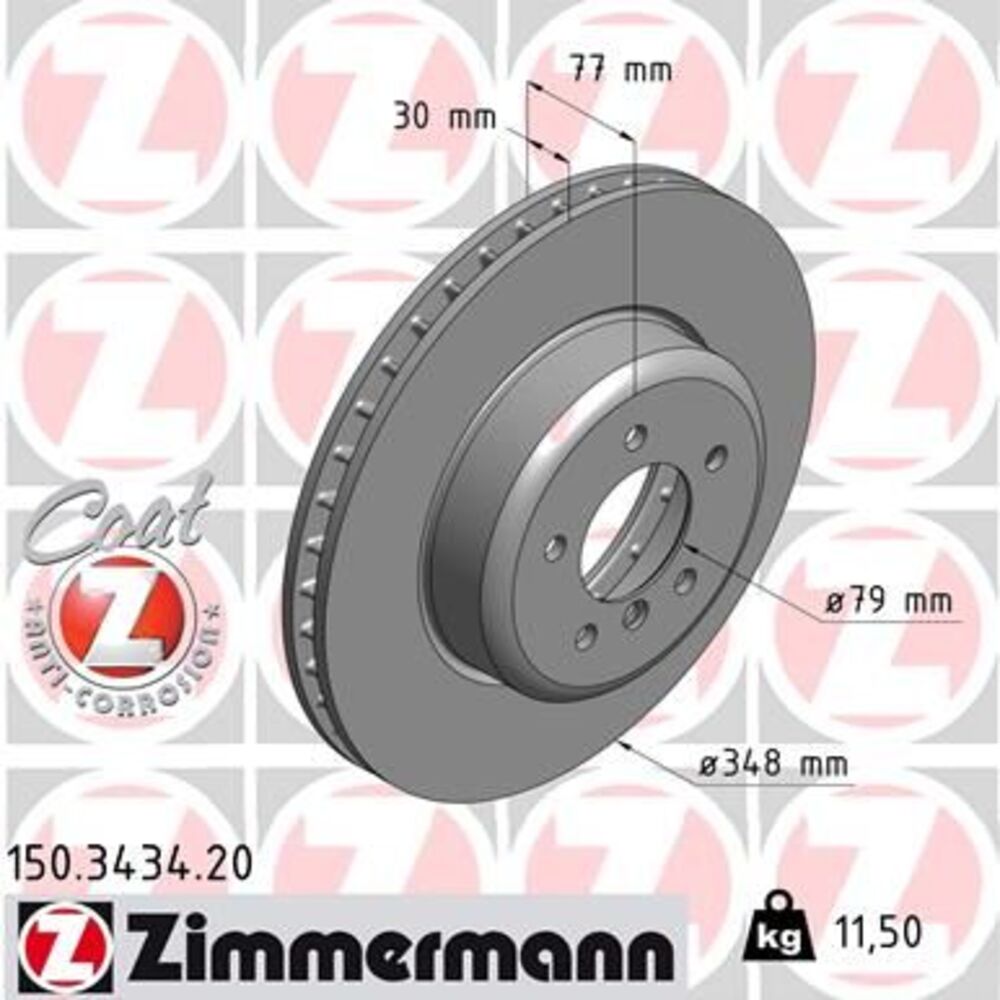

Zimmermann 150.3434.20 is a pair of internally vented brake discs (rotors). Each disc is 348 mm in diameter and 30 mm thick when new, with a 77 mm hat height. The minimum (discard) thickness is 28.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 763 824. Confirmed to fit 13 Australian-market variants; the full list is in the fitment table on this page.
