Zimmermann 330mm Brake Disc Set (2 pcs) 150.2951.20
Part No. 150.2951.20
Check this part fits your car
Select your vehicle and we will confirm it against the 11 variants listed for this part.
$570.00
incl. GST
Front axle
330 x 24 mm
Fits 11 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter330 mm
Thickness when new24 mm
Height66 mm
Stud holes5
Stud circle (PCD)112 mm
Centre bore67 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight9.6 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.2951.20
Fits OE / OEM numbers
3411 6 860 907
3410 6 865 722
3410 6 880 072
3410 6 865 722
Vehicle fitment
11 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 5 Series | G30, F90 | 520 d, 523 d | 2016–now | 140 kW |
| BMW 5 Series Touring | G31 | 520 d, 523 d | 2017–now | 140 kW |
| BMW X3 | G01, F97 | xDrive 20 d | 2017–2020 | 140 kW |
| BMW X3 | G01, F97 | xDrive 30 i, xDrive 30 i, X Line | 2017–now | 185 kW |
| BMW X3 | G01, F97 | xDrive 30 e Plug-in-Hybrid | 2019–now | 215 kW |
| BMW X4 | G02, F98 | xDrive 20 d | 2018–2020 | 140 kW |
| BMW X4 | G02, F98 | xDrive 20 i, xDrive 25i | 2018–now | 135 kW |
| BMW X4 | G02, F98 | xDrive 30 i | 2018–now | 185 kW |
| BMW X4 | G02, F98 | xDrive 30 i Mild Hybrid | 2021–now | 180 kW |
| BMW Z4 Roadster | G29 | sDrive 20 i, sDrive 25 i | 2018–now | 145 kW |
Product overview

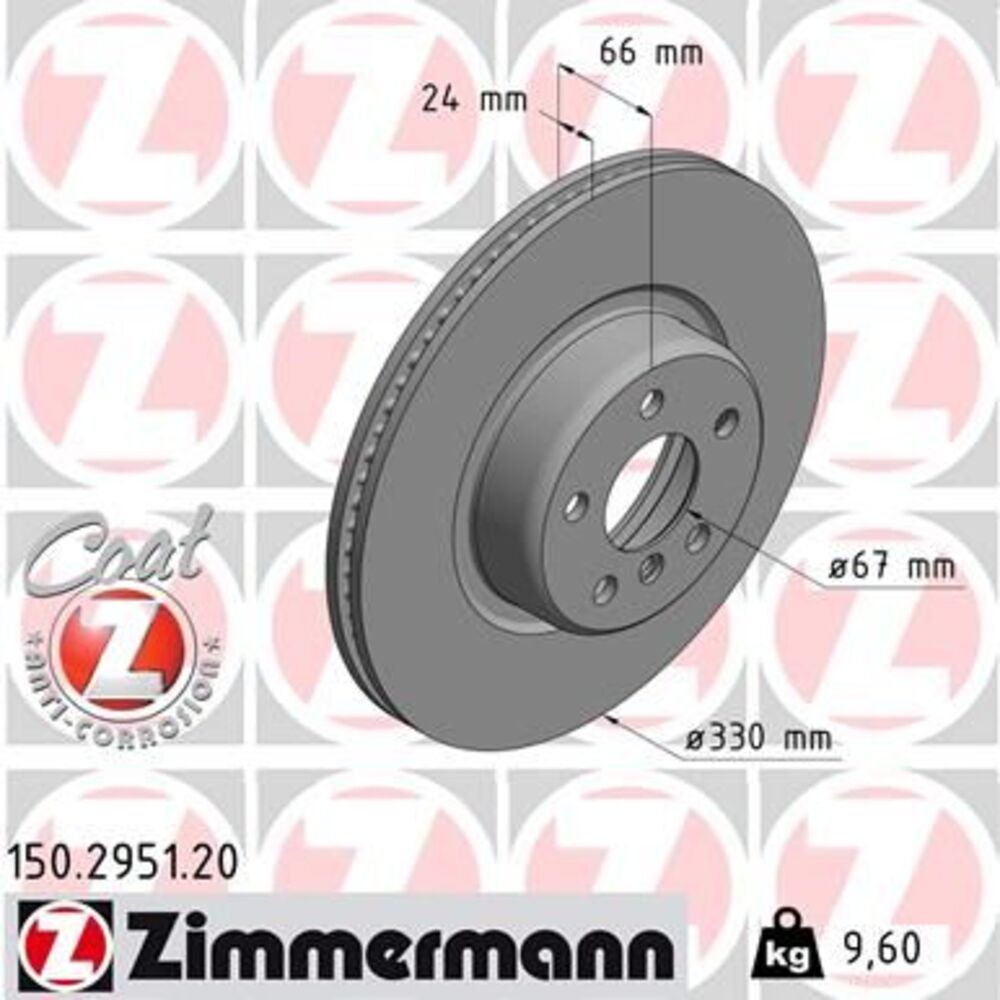

Zimmermann 150.2951.20 is a pair of internally vented brake discs (rotors). Each disc is 330 mm in diameter and 24 mm thick when new, with a 66 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 860 907 and 2 other OE numbers. Confirmed to fit 11 Australian-market variants; the full list is in the fitment table on this page.
