Zimmermann 330mm Brake Disc Set (2 pcs) 600.3229.20

Name: Zimmermann 330mm Brake Disc Set (2 pcs) 600.3229.20
Brand: Zimmermann
SKU: ZIM-00188
Price: 414.00 AUD
Availability: InStock

Part No. 600.3229.20

Low stock 6 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 49 variants listed for this part.

$414.00 incl. GST

Rear axle 330 x 28 mm Fits 49 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter330 mm

Thickness when new28 mm

Height74 mm

Stud holes5

Stud circle (PCD)130 mm

Centre bore85 mm

ApprovalECE R90 approved

Minimum (discard) thickness26 mm

Part weight8.6 kg

Hole pattern7/5

OE & OEM cross-reference

Supplier part number

600.3229.20

Fits OE / OEM numbers

955 352 401 30 955 352 401 31 7L6 615 601 D 7L6 615 601 J 7L8 615 601 C 7L8 615 601 G

Vehicle fitment

49 variants

Make & model	Chassis	Variant	Years	Power
Audi Q7	4LB	3.0 TDI quattro	2006–2008	171 kW
Audi Q7	4LB	4.2 FSI quattro	2006–2010	257 kW
Audi Q7	4LB	3.6 FSI quattro	2006–2010	206 kW
Audi Q7	4LB	4.2 TDI quattro	2007–2009	240 kW
Audi Q7	4LB	3.0 TDI quattro	2007–2015	176 kW
Audi Q7	4LB	6.0 TDI quattro	2008–2014	368 kW
Audi Q7	4LB	4.2 TDI quattro	2009–2015	250 kW
Audi Q7	4LB	3.0 TFSI quattro	2010–2015	245 kW
Audi Q7	4LB	3.0 TDI quattro	2011–2015	180 kW
Porsche Cayenne	92A	3.0 Diesel	2010–now	176 kW
Porsche Cayenne	92A	3.6, 3.6 V6	2010–now	220 kW
Porsche Cayenne	92A	4.8 S	2010–now	294 kW
Porsche Cayenne	92A	4.8 Turbo	2010–now	368 kW
Porsche Cayenne	92A	3.0 S E-Hybrid, 3.0 S E-Hybrid Platinium Edition, 3.0 S Hybrid	2011–2017	306 kW
Porsche Cayenne	92A	3.0 Diesel	2011–now	180 kW
Porsche Cayenne	92A	4.8 GTS	2012–now	309 kW
Porsche Cayenne	92A	4.2 S Diesel	2012–now	281 kW
Porsche Cayenne	92A	4.8 Turbo S	2012–now	405 kW
Porsche Cayenne	92A	3.0 Diesel	2014–now	193 kW
Porsche Cayenne	92A	3.6 S	2014–now	309 kW
Porsche Cayenne	92A	4.2 S Diesel	2014–now	283 kW
Porsche Cayenne	92A	4.8 Turbo	2014–now	382 kW
Porsche Cayenne	92A	4.8 Turbo S	2015–now	419 kW
Porsche Cayenne	92A	3.6 GTS, 3.6 GTS V6 Turbo	2015–now	324 kW
Porsche Cayenne	9PA	S 4.5	2002–2007	250 kW
Porsche Cayenne	9PA	Turbo 4.5	2002–2007	331 kW
Porsche Cayenne	9PA	Turbo S 4.5	2006–2007	383 kW
Porsche Cayenne	9PA	3.6	2007–2010	213 kW
Porsche Cayenne	9PA	S 4.8	2007–2010	283 kW
Porsche Cayenne	9PA	Turbo S 4.8	2007–2010	368 kW
Porsche Cayenne	9PA	GTS 4.8, S 4.8	2007–2010	298 kW
Porsche Cayenne	9PA	Turbo S 4.8	2008–2010	404 kW
Porsche Cayenne	9PA	3.0 TDI	2009–2010	176 kW
VW Touareg	7LA, 7L6, 7L7	3.2 V6	2002–2006	162 kW
VW Touareg	7LA, 7L6, 7L7	5.0 V10 TDI	2002–2010	230 kW
VW Touareg	7LA, 7L6, 7L7	4.2 V8	2002–2006	228 kW
VW Touareg	7LA, 7L6, 7L7	2.5 R5 TDI	2003–2010	128 kW
VW Touareg	7LA, 7L6, 7L7	3.0 V6 TDI	2004–2010	165 kW
VW Touareg	7LA, 7L6, 7L7	3.2 V6	2004–2006	177 kW
VW Touareg	7LA, 7L6, 7L7	3.6 V6 FSI	2005–2010	206 kW
VW Touareg	7LA, 7L6, 7L7	5.0 R50 TDI	2007–2010	257 kW
VW Touareg	7LA, 7L6, 7L7	3.0 V6 TDI	2007–2010	176 kW
VW Touareg	7P5, 7P6	3.0 V6 TDI	2010–2018	150 kW
VW Touareg	7P5, 7P6	3.0 V6 TDI	2010–2018	176 kW
VW Touareg	7P5, 7P6	4.2 V8 TDI	2010–2018	250 kW
VW Touareg	7P5, 7P6	3.6 V6 FSI	2010–2018	206 kW
VW Touareg	7P5, 7P6	3.0 V6 TDI	2011–2018	180 kW
VW Touareg	CR7	3.0 TDI 4motion	2017–now	210 kW
VW Touareg	CR7	3.0 TDI 4motion	2018–now	170 kW
No vehicles match your search.

Product overview

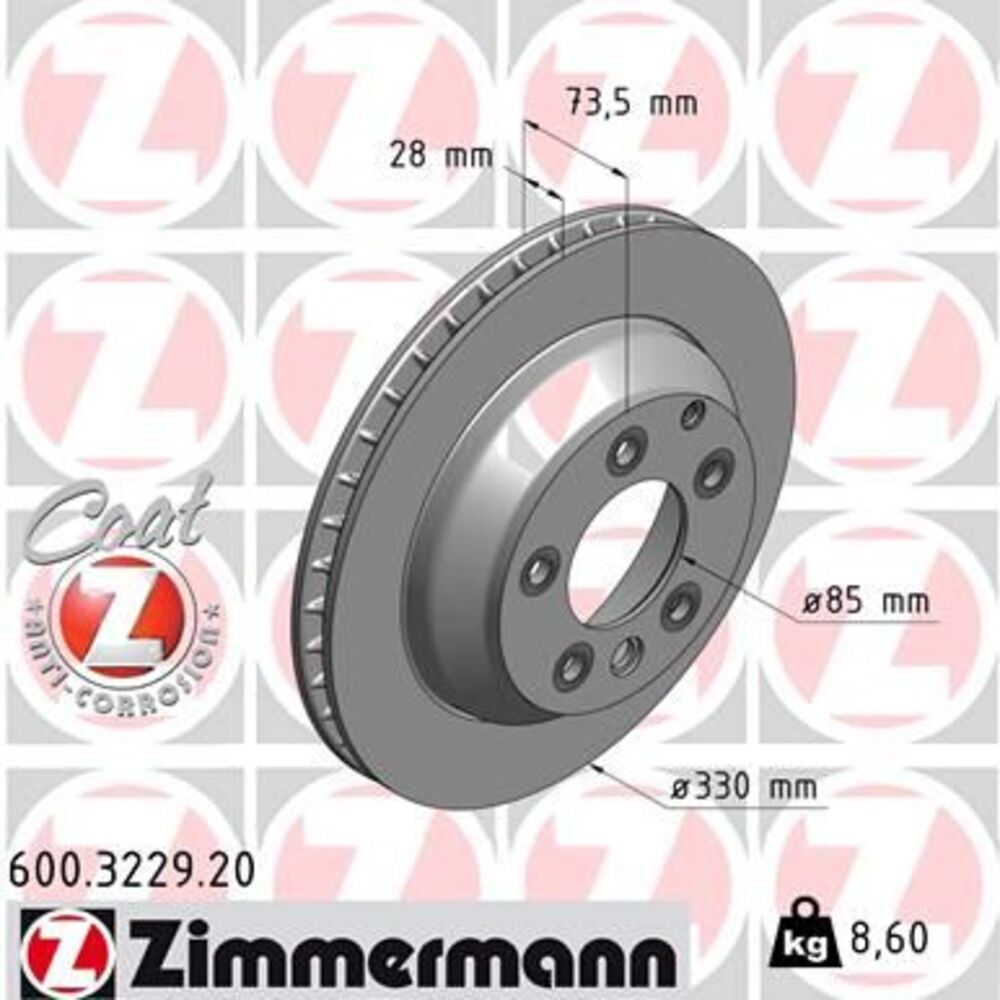

Zimmermann 600.3229.20 is a pair of internally vented brake discs (rotors). Each disc is 330 mm in diameter and 28 mm thick when new, with a 74 mm hat height. The minimum (discard) thickness is 26 mm. Each disc has 5 stud holes on a 130 mm stud circle (PCD), with a 85 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Porsche OE 955 352 401 30 and 5 other OE numbers. Confirmed to fit 49 Australian-market variants; the full list is in the fitment table on this page.
