Zimmermann 330mm Front LH Brake Disc 600.3224.20
Part No. 600.3224.20
Check this part fits your car
Select your vehicle and we will confirm it against the 22 variants listed for this part.
$248.00
incl. GST
Front axle
330 x 32 mm
Fits 22 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter330 mm
Thickness when new32 mm
Height69 mm
Stud holes5
Stud circle (PCD)130 mm
Centre bore85 mm
ApprovalECE R90 approved
Minimum (discard) thickness30 mm
Part weight11.1 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
600.3224.20
Fits OE / OEM numbers
955 351 401 40
955 351 401 41
7L6 615 301 D
7L6 615 301 J
7L6 615 301 N
7L6 615 301 P
Vehicle fitment
22 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| PORSCHE Cayenne | 9PA | S 4.5 | 2002–2007 | 250 kW |
| PORSCHE Cayenne | 9PA | Turbo 4.5 | 2002–2007 | 331 kW |
| PORSCHE Cayenne | 9PA | 3.6 | 2007–2010 | 213 kW |
| PORSCHE Cayenne | 9PA | S 4.8 | 2007–2010 | 283 kW |
| PORSCHE Cayenne | 9PA | Turbo S 4.8 | 2007–2010 | 368 kW |
| PORSCHE Cayenne | 9PA | 3.0 TDI | 2009–2010 | 176 kW |
| VW Touareg | 7LA, 7L6, 7L7 | 3.2 V6 | 2002–2006 | 162 kW |
| VW Touareg | 7LA, 7L6, 7L7 | 5.0 V10 TDI | 2002–2010 | 230 kW |
| VW Touareg | 7LA, 7L6, 7L7 | 4.2 V8 | 2002–2006 | 228 kW |
| VW Touareg | 7LA, 7L6, 7L7 | 2.5 R5 TDI | 2003–2010 | 128 kW |
Product overview

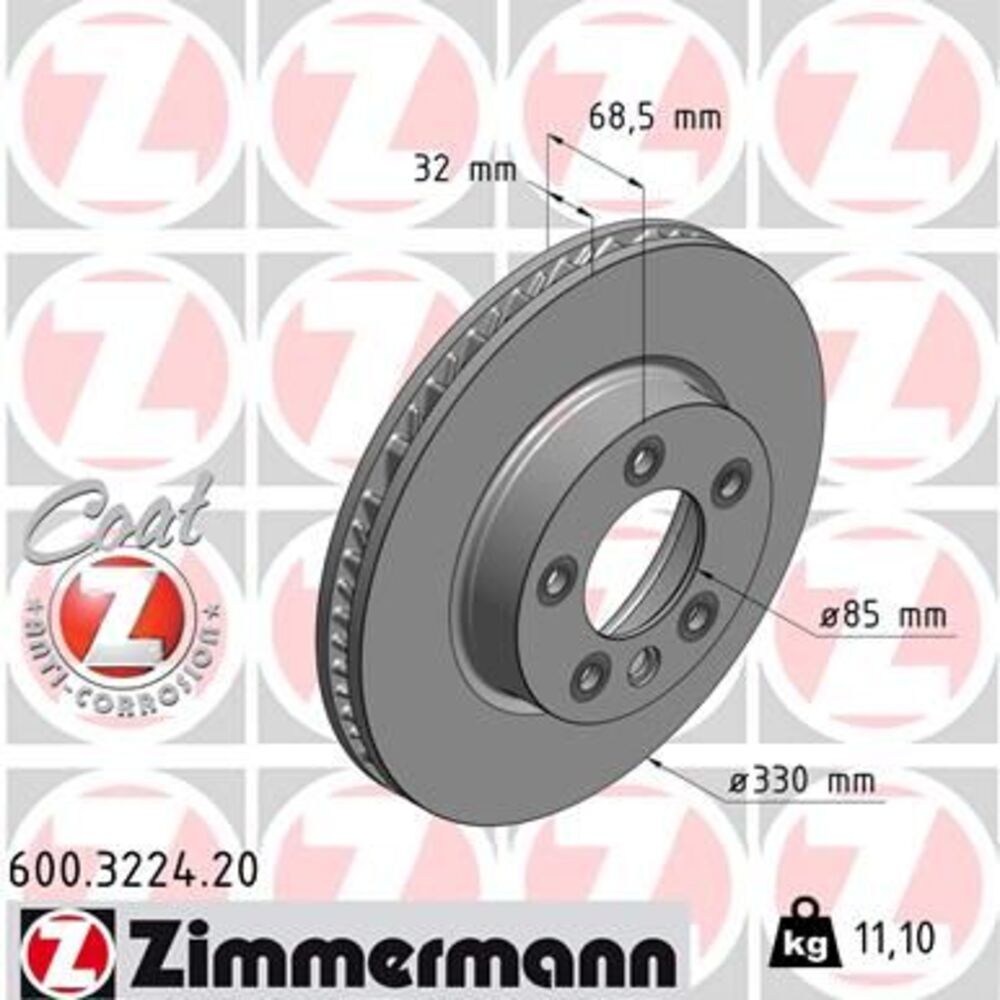

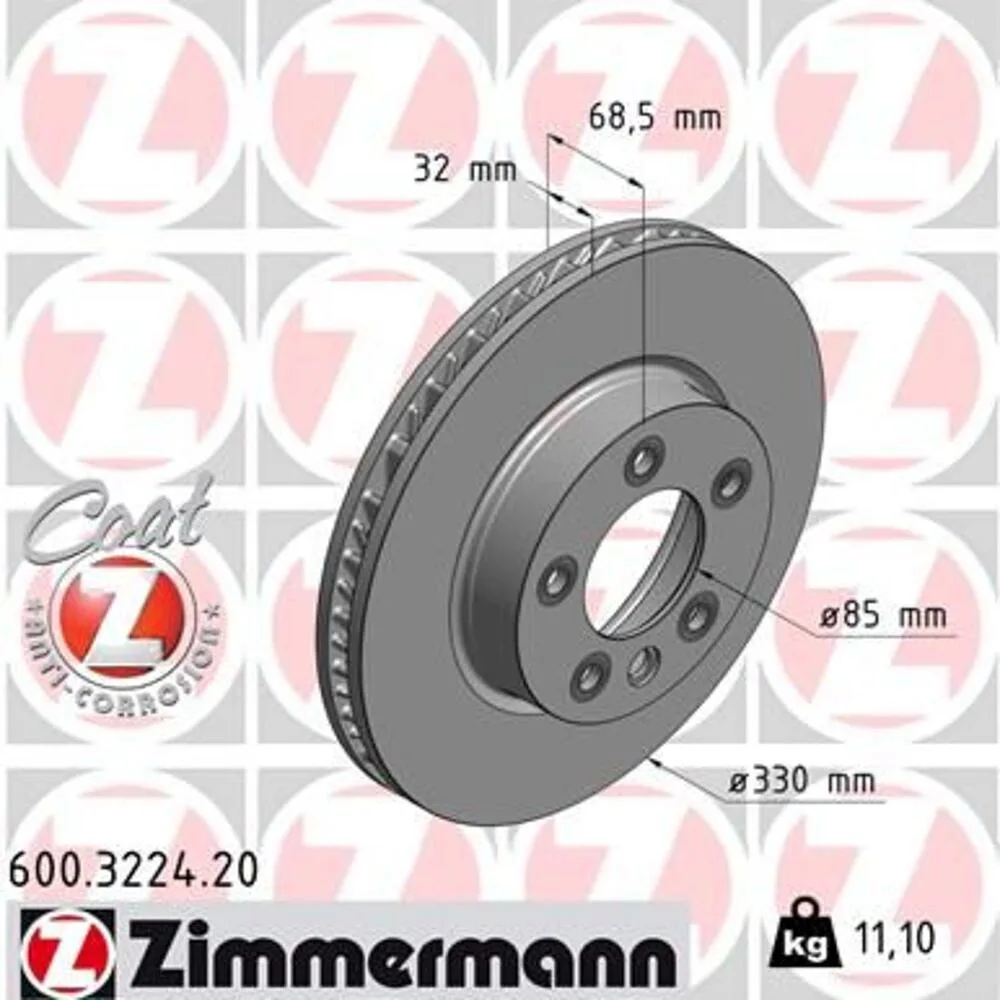

Zimmermann 600.3224.20 is an internally vented brake disc (rotor). The disc is 330 mm in diameter and 32 mm thick when new, with a 69 mm hat height. The minimum (discard) thickness is 30 mm. It has 5 stud holes on a 130 mm stud circle (PCD), with a 85 mm centre bore. The disc is coated for corrosion protection and made from high-carbon cast iron. It is ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Porsche OE 955 351 401 40 and 5 other OE numbers. Confirmed to fit 22 Australian-market variants; the full list is in the fitment table on this page.
