Zimmermann 332mm Brake Disc Set (2 pcs) 150.3447.20
Part No. 150.3447.20
Check this part fits your car
Select your vehicle and we will confirm it against the 13 variants listed for this part.
$564.00
incl. GST
Front axle
332 x 30 mm
Fits 13 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter332 mm
Thickness when new30 mm
Height62 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness28.4 mm
Part weight11.2 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3447.20
Fits OE / OEM numbers
3411 6 771 985
3411 6 793 245
3411 6 868 939
3411 6 886 478
Vehicle fitment
13 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW X5 | E70 | 3.0 si | 2006–2008 | 200 kW |
| BMW X5 | E70 | xDrive 3,0 si, xDrive 30 i | 2008–2010 | 200 kW |
| BMW X5 | E70 | xDrive 30 d, xDrive 35 d | 2010–2013 | 180 kW |
| BMW X5 | E70 | xDrive 30 i, xDrive 35 i | 2010–2013 | 225 kW |
| BMW X5 | F15, F85 | xDrive 30 d, xDrive 35 d | 2013–2018 | 190 kW |
| BMW X5 | F15, F85 | sDrive 25 d | 2013–2015 | 160 kW |
| BMW X5 | F15, F85 | xDrive 25 d | 2013–2015 | 160 kW |
| BMW X5 | F15, F85 | sDrive 25 d | 2015–2018 | 170 kW |
| BMW X5 | F15, F85 | xDrive 25 d | 2015–2018 | 170 kW |
| BMW X6 | E71, E72 | xDrive 35 i | 2008–2014 | 225 kW |
Product overview

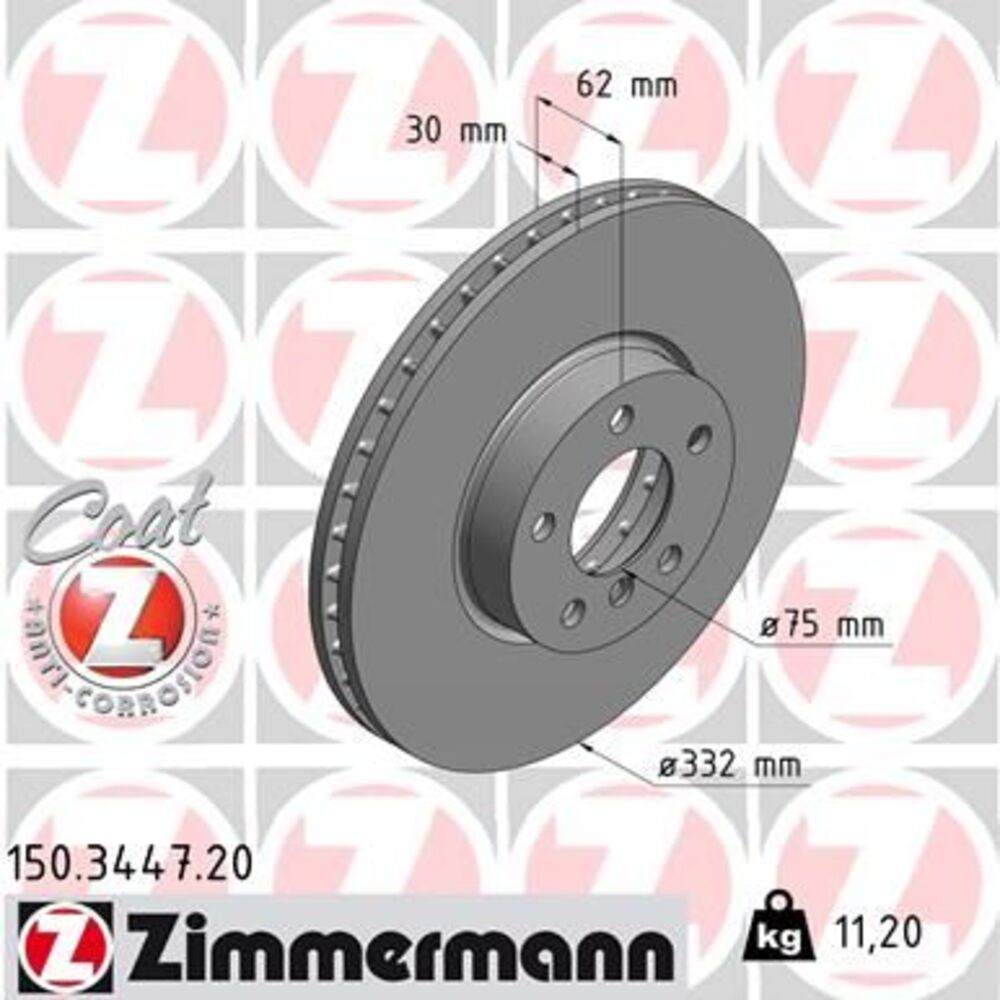

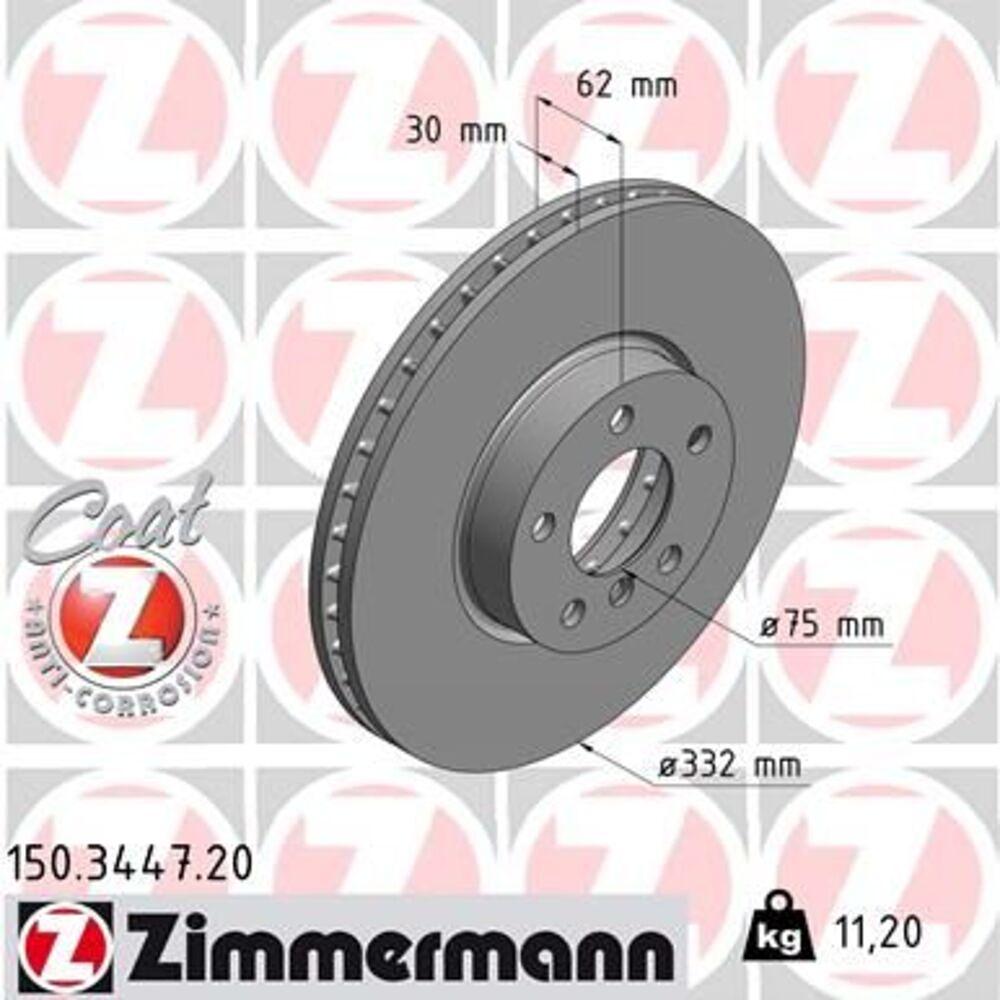

Zimmermann 150.3447.20 is a pair of internally vented brake discs (rotors). Each disc is 332 mm in diameter and 30 mm thick when new, with a 62 mm hat height. The minimum (discard) thickness is 28.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 771 985 and 3 other OE numbers. Confirmed to fit 13 Australian-market variants; the full list is in the fitment table on this page.
