Zimmermann 348mm Brake Disc Set (2 pcs) 150.3448.20
Part No. 150.3448.20
Check this part fits your car
Select your vehicle and we will confirm it against the 21 variants listed for this part.
$636.00
incl. GST
Front axle
348 x 30 mm
Fits 21 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter348 mm
Thickness when new30 mm
Height62 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness28.4 mm
Part weight12.1 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3448.20
Fits OE / OEM numbers
3411 6 771 986
3411 6 793 244
3411 6 868 938
3411 6 886 477
Vehicle fitment
21 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW X5 | E70 | 3.0 si | 2006–2008 | 200 kW |
| BMW X5 | E70 | 4.8 i xDrive | 2006–2008 | 261 kW |
| BMW X5 | E70 | 3.0 d | 2006–2008 | 173 kW |
| BMW X5 | E70 | 3.0 d, 3.0 sd | 2007–2008 | 210 kW |
| BMW X5 | E70 | xDrive 3,0 si, xDrive 30 i | 2008–2010 | 200 kW |
| BMW X5 | E70 | xDrive 30 d | 2008–2010 | 173 kW |
| BMW X5 | E70 | xDrive 35 d | 2008–2013 | 210 kW |
| BMW X5 | E70 | xDrive 48 i | 2008–2010 | 261 kW |
| BMW X5 | E70 | xDrive 30 i, xDrive 35 i | 2010–2013 | 225 kW |
| BMW X5 | E70 | xDrive 40 d | 2010–2013 | 225 kW |
Product overview

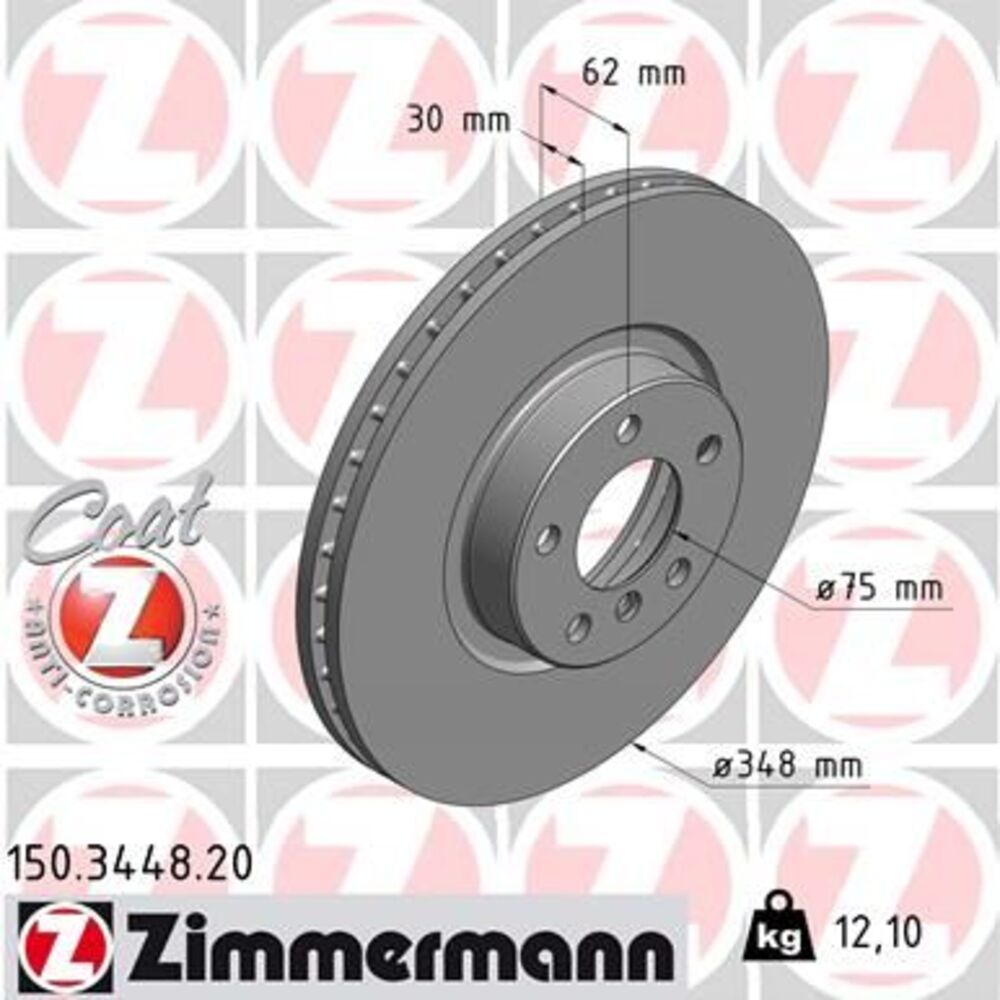

Zimmermann 150.3448.20 is a pair of internally vented brake discs (rotors). Each disc is 348 mm in diameter and 30 mm thick when new, with a 62 mm hat height. The minimum (discard) thickness is 28.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 771 986 and 3 other OE numbers. Confirmed to fit 21 Australian-market variants; the full list is in the fitment table on this page.
