Zimmermann 345mm Brake Disc Set (2 pcs) 150.3451.20
Part No. 150.3451.20
Check this part fits your car
Select your vehicle and we will confirm it against the 19 variants listed for this part.
$478.00
incl. GST
Rear axle
345 x 24 mm
Fits 19 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter345 mm
Thickness when new24 mm
Height78 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight9.3 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3451.20
Fits OE / OEM numbers
3421 6 886 480
3421 6 771 971
3421 6 793 246
Vehicle fitment
19 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW X5 | E70 | 4.8 i xDrive | 2006–2008 | 261 kW |
| BMW X5 | E70 | 3.0 d | 2006–2008 | 173 kW |
| BMW X5 | E70 | 3.0 d, 3.0 sd | 2007–2008 | 210 kW |
| BMW X5 | E70 | xDrive 30 d | 2008–2010 | 173 kW |
| BMW X5 | E70 | xDrive 35 d | 2008–2013 | 210 kW |
| BMW X5 | E70 | xDrive 48 i | 2008–2010 | 261 kW |
| BMW X5 | E70 | xDrive 50 i | 2010–2013 | 300 kW |
| BMW X5 | E70 | M 50 d | 2011–2013 | 280 kW |
| BMW X5 | F15, F85 | xDrive 50 i, xDrive 50 i M Sport | 2013–2018 | 330 kW |
| BMW X5 | F15, F85 | M 50 d | 2013–2018 | 280 kW |
Product overview

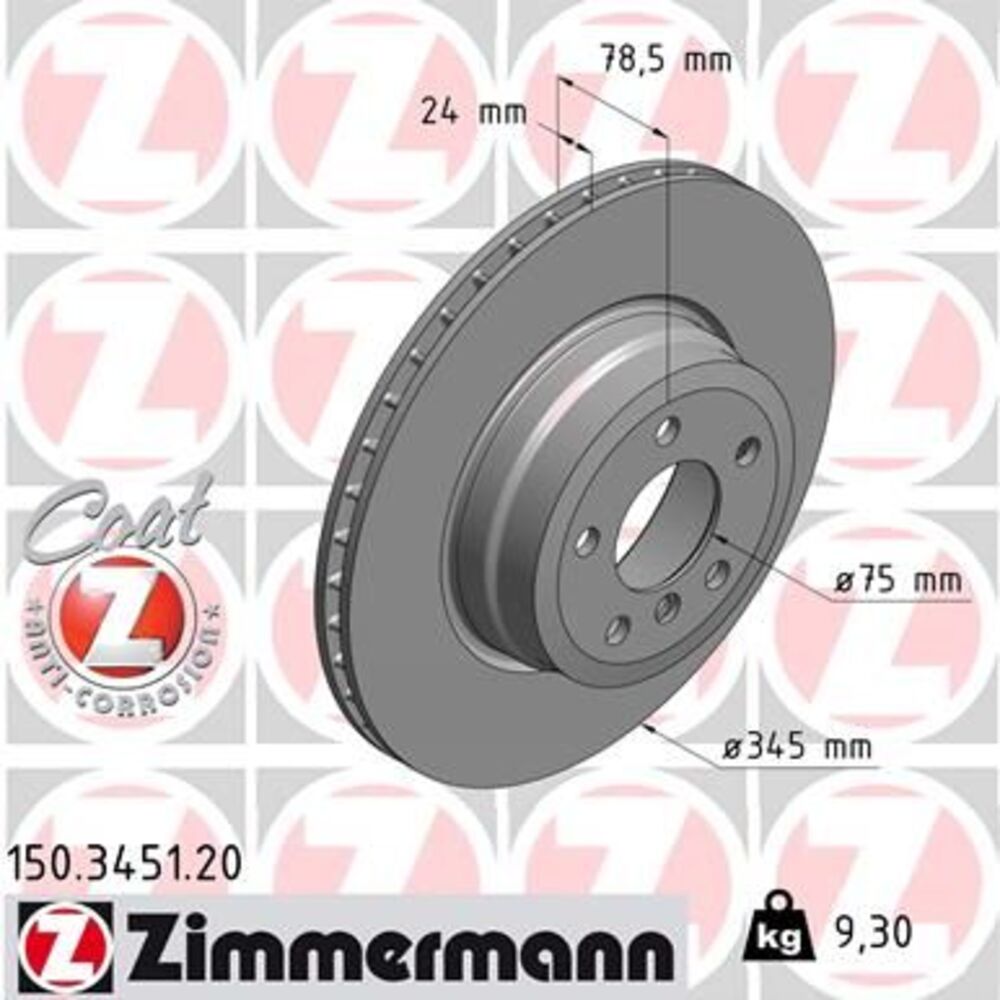

Zimmermann 150.3451.20 is a pair of internally vented brake discs (rotors). Each disc is 345 mm in diameter and 24 mm thick when new, with a 78 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3421 6 886 480 and 2 other OE numbers. Confirmed to fit 19 Australian-market variants; the full list is in the fitment table on this page.
