Zimmermann 345mm Brake Disc Set (2 pcs) 100.3301.20

Name: Zimmermann 345mm Brake Disc Set (2 pcs) 100.3301.20
Brand: Zimmermann
SKU: ZIM-00007
Price: 444.00 AUD
Availability: InStock

Part No. 100.3301.20

Low stock 3 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 82 variants listed for this part.

$444.00 incl. GST

Front axle 345 x 30 mm Fits 82 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter345 mm

Thickness when new30 mm

Height50 mm

Stud holes5

Stud circle (PCD)112 mm

Centre bore65 mm

ApprovalECE R90 approved

Minimum (discard) thickness27 mm

Part weight12.1 kg

Hole pattern10/5

OE & OEM cross-reference

Supplier part number

100.3301.20

Fits OE / OEM numbers

1K0 615 301 M 1K0 615 301 AB 1K0 615 301 AR

Vehicle fitment

82 variants

Make & model	Chassis	Variant	Years	Power
Audi A3	8P1	1.6	2003–2012	75 kW
Audi A3	8P1	1.9 TDI	2003–2010	77 kW
Audi A3	8P1	2.0 FSI	2003–2008	110 kW
Audi A3	8P1	2.0 TDI 16V	2003–2012	103 kW
Audi A3	8P1	3.2 V6 quattro	2003–2009	184 kW
Audi A3	8P1	2.0 TFSI	2004–2012	147 kW
Audi A3	8P1	2.0 TFSI quattro	2004–2012	147 kW
Audi A3	8P1	2.0 TDI	2005–2008	103 kW
Audi A3	8P1	2.0 TDI	2006–2012	125 kW
Audi A3	8P1	1.8 TFSI	2006–2012	118 kW
Audi A3	8P1	S3 quattro	2007–2012	188 kW
Audi A3	8P1	1.4 TFSI	2007–2012	92 kW
Audi A3	8P1	1.6 TDI	2009–2012	77 kW
Audi A3 Sportback	8PA	1.6	2004–2013	75 kW
Audi A3 Sportback	8PA	1.9 TDI	2004–2010	77 kW
Audi A3 Sportback	8PA	2.0 FSI	2004–2008	110 kW
Audi A3 Sportback	8PA	2.0 TDI 16V	2004–2013	103 kW
Audi A3 Sportback	8PA	2.0 TFSI	2004–2013	147 kW
Audi A3 Sportback	8PA	2.0 TFSI quattro	2004–2013	147 kW
Audi A3 Sportback	8PA	3.2 V6 quattro	2004–2009	184 kW
Audi A3 Sportback	8PA	2.0 TDI	2005–2008	103 kW
Audi A3 Sportback	8PA	2.0 TDI	2006–2013	125 kW
Audi A3 Sportback	8PA	1.8 TFSI	2006–2013	118 kW
Audi A3 Sportback	8PA	1.4 TFSI	2007–2013	92 kW
Audi A3 Sportback	8PA	2.0 quattro, S3 quattro	2008–2013	188 kW
Audi A3 Sportback	8PA	1.6 TDI	2009–2013	77 kW
VW CC B6	357	3.6 FSI 4motion	2008–2011	220 kW
VW CC B6	357	2.0 TDI	2008–2012	125 kW
VW CC B7	358	2.0 TDI	2011–2016	125 kW
VW CC B7	358	3.6 FSI 4motion	2011–2016	220 kW
VW CC B7	358	2.0 TDI	2012–2016	130 kW
VW Eos	1F7, 1F8	2.0 TFSI	2006–2015	147 kW
VW Eos	1F7, 1F8	2.0 TDI	2006–2008	103 kW
VW Eos	1F7, 1F8	3.2 V6, 3.2 VR6	2006–2009	184 kW
VW Eos	1F7, 1F8	2.0 TDI 16V	2008–2015	103 kW
VW Eos	1F7, 1F8	2.0 TSI	2009–2015	155 kW
VW Golf V	1K1	1.6 FSI	2003–2008	85 kW
VW Golf V	1K1	1.9 TDI	2003–2008	77 kW
VW Golf V	1K1	2.0 TDI 16V	2003–2008	103 kW
VW Golf V	1K1	1.6	2004–2008	75 kW
VW Golf V	1K1	2.0 FSI	2004–2008	110 kW
VW Golf V	1K1	2.0 GTI	2004–2009	147 kW
VW Golf V	1K1	2.0 TDI	2004–2008	103 kW
VW Golf V	1K1	1.4 GT Sport TSI, 1.4 TSI	2005–2008	125 kW
VW Golf V	1K1	2.0 GT Sport TDI, 2.0 TDI	2005–2008	125 kW
VW Golf V	1K1	3.2 R32 4motion	2005–2008	184 kW
VW Golf V	1K1	2.0 GTI	2006–2008	169 kW
VW Golf V	1K1	1.4 TSI	2007–2008	90 kW
VW Golf VI	5K1	1.4 TSI	2008–2012	90 kW
VW Golf VI	5K1	1.4 TSI	2008–2012	118 kW
VW Golf VI	5K1	2.0 TDI	2008–2013	103 kW
VW Golf VI	5K1	1.2 TSI	2008–2012	77 kW
VW Golf VI	5K1	1.6 TDI	2009–2012	77 kW
VW Golf VI	5K1	2.0 GTD, 2.0 TDI	2009–2012	125 kW
VW Golf VI	5K1	2.0 GTi	2009–2012	155 kW
VW Golf VI	5K1	2.0 R 4motion	2009–2013	188 kW
VW Golf VI	5K1	2.0 GTi	2011–2012	173 kW
VW Golf VI Convertible	517	1.4 TSI	2011–2016	118 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI, 1.4 TSI, Highline	2012–2017	103 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 TDI	2012–2020	110 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI	2012–2017	90 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 GTI	2013–2020	169 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 GTI, 2.0 TSI GTI	2013–2020	162 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 R 4motion, 2.0 TSI R 4motion	2013–2017	206 kW
VW Passat B6	3C2	2.0 FSI, 2.0 FSI Confortline	2005–2010	110 kW
VW Passat B6	3C2	2.0 TDI 16V	2005–2010	103 kW
VW Passat B6	3C2	2.0 TFSI	2005–2010	147 kW
VW Passat B6	3C2	2.0 TDI	2005–2010	125 kW
VW Passat B6	3C2	3.2 FSI 4motion	2005–2010	184 kW
VW Passat B6	3C2	3.6 R36 4motion	2007–2010	220 kW
VW Passat B6	3C2	1.8 TSI	2007–2010	118 kW
VW Passat B6	3C2	2.0 FSI	2007–2010	125 kW
VW Passat B6 Estate	3C5	1.9 TDI	2005–2010	77 kW
VW Passat B6 Estate	3C5	2.0 TDI	2005–2009	103 kW
VW Passat B6 Estate	3C5	2.0 TDI	2005–2010	125 kW
VW Passat B6 Estate	3C5	2.0 TDI 16V	2005–2010	103 kW
VW Passat B6 Estate	3C5	2.0 TDI 16V 4motion	2005–2010	103 kW
VW Passat B6 Estate	3C5	2.0 TFSI	2005–2010	147 kW
VW Passat B6 Estate	3C5	3.2 FSI 4motion, 3.2 FSI Highline 4motion	2005–2010	184 kW
VW Passat B6 Estate	3C5	3.6 R36 4motion	2007–2010	220 kW
VW Passat B6 Estate	3C5	1.8 TSI	2007–2011	118 kW
VW Scirocco III	137, 138	2.0 R	2009–2017	188 kW
No vehicles match your search.

Product overview

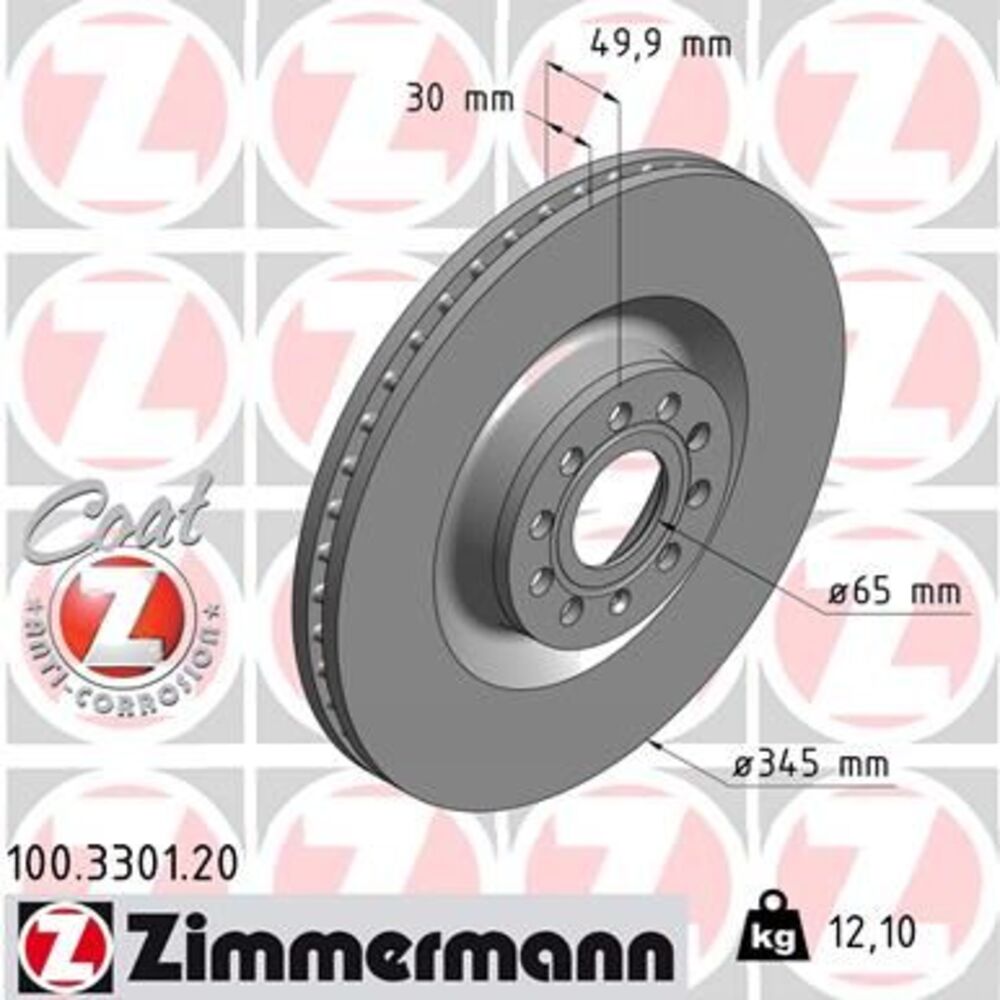

Zimmermann 100.3301.20 is a pair of internally vented brake discs (rotors). Each disc is 345 mm in diameter and 30 mm thick when new, with a 50 mm hat height. The minimum (discard) thickness is 27 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to VAG OE 1K0 615 301 M and 2 other OE numbers. Confirmed to fit 82 Australian-market variants; the full list is in the fitment table on this page.
