Zimmermann 312mm Brake Disc Set (2 pcs) 100.3300.20
Part No. 100.3300.20
Check this part fits your car
Select your vehicle and we will confirm it against the 253 variants listed for this part.
$330.00
incl. GST
Front axle
312 x 25 mm
Fits 253 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

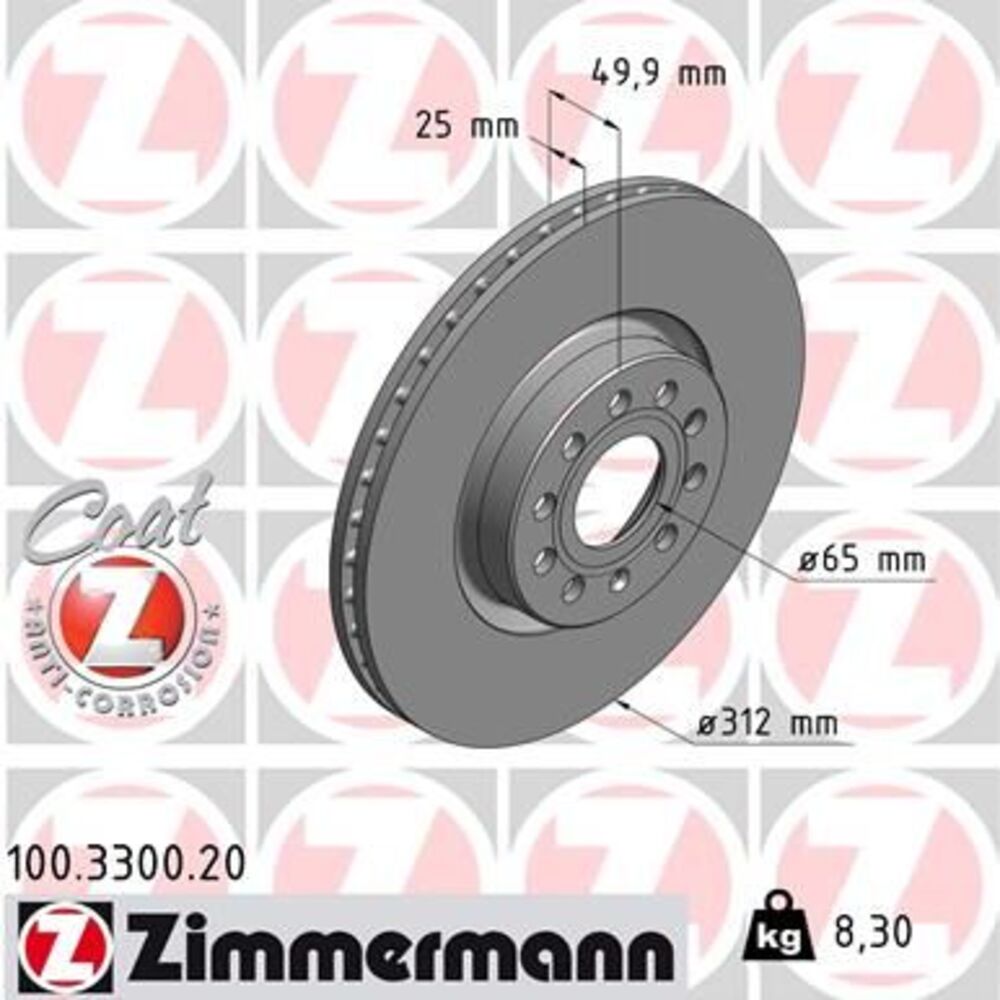

Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter312 mm
Thickness when new25 mm
Height50 mm
Stud holes5
Stud circle (PCD)112 mm
Centre bore65 mm
ApprovalECE R90 approved
Minimum (discard) thickness22 mm
Part weight8.3 kg
Hole pattern10/5
OE & OEM cross-reference
Supplier part number
100.3300.20
Fits OE / OEM numbers
L1KD 615 301 D
3CD 615 301
1K0 615 301 AA
1KD 615 301 D
5QM 615 301 A
1K0 615 301 AA
5Q0 615 301 F
5C0 615 301 B
561 615 301
561 615 301 A
561 615 301 B
JZW 615 301 H
5C0 615 301 E
L1KD 615 301 D
1KD 615 301 D
3CD 615 301
L3CD 615 301
1K0 615 301 AA
1KD 615 301 D
L3CD 615 301
L1KD 615 301 D
L1K0 615 301 AA
3CD 615 301
5C0 615 301 B
5C0 615 301 E
1KD 615 301 D
1K0 615 301 AA
Vehicle fitment
253 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| AUDI A1 | 8X1, 8XK | 1.2 TFSI | 2010–2015 | 63 kW |
| AUDI A1 | 8X1, 8XK | 1.4 TFSI | 2010–2015 | 90 kW |
| AUDI A1 | 8X1, 8XK | 1.4 TFSI | 2011–2015 | 136 kW |
| AUDI A1 | 8X1, 8XK | 1.6 TDI | 2011–2015 | 66 kW |
| AUDI A1 | 8X1, 8XK | S1 quattro | 2014–2018 | 170 kW |
| AUDI A1 | 8X1, 8XK | 1.4 TFSI | 2014–2018 | 92 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.4 TFSI | 2011–2015 | 90 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.4 TFSI, 1.4 TFSI Ambition | 2011–2015 | 136 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.6 TDI | 2011–2015 | 66 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.2 TFSI | 2012–2015 | 63 kW |
Product overview
Zimmermann 100.3300.20 is a pair of internally vented brake discs (rotors). Each disc is 312 mm in diameter and 25 mm thick when new, with a 50 mm hat height. The minimum (discard) thickness is 22 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Audi OE L1KD 615 301 D and 13 other OE numbers. Confirmed to fit 253 Australian-market variants; the full list is in the fitment table on this page.
