Zimmermann 365mm Brake Disc Set (2 pcs) 150.3449.20
Part No. 150.3449.20
Check this part fits your car
Select your vehicle and we will confirm it against the 7 variants listed for this part.
$682.00
incl. GST
Front axle
365 x 36 mm
Fits 7 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter365 mm
Thickness when new36 mm
Height62 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness34.4 mm
Part weight14.1 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3449.20
Fits OE / OEM numbers
3411 6 886 481
3411 6 771 982
3411 6 793 243
Vehicle fitment
7 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW X5 | E70 | 4.8 i xDrive | 2006–2008 | 261 kW |
| BMW X5 | E70 | 3.0 d, 3.0 sd | 2007–2008 | 210 kW |
| BMW X5 | E70 | xDrive 48 i | 2008–2010 | 261 kW |
| BMW X5 | E70 | xDrive 50 i | 2010–2013 | 300 kW |
| BMW X5 | F15, F85 | xDrive 50 i, xDrive 50 i M Sport | 2013–2018 | 330 kW |
| BMW X6 | E71, E72 | xDrive 50 i | 2008–2014 | 300 kW |
| BMW X6 | F16, F86 | xDrive 50 i | 2014–2019 | 330 kW |
Product overview

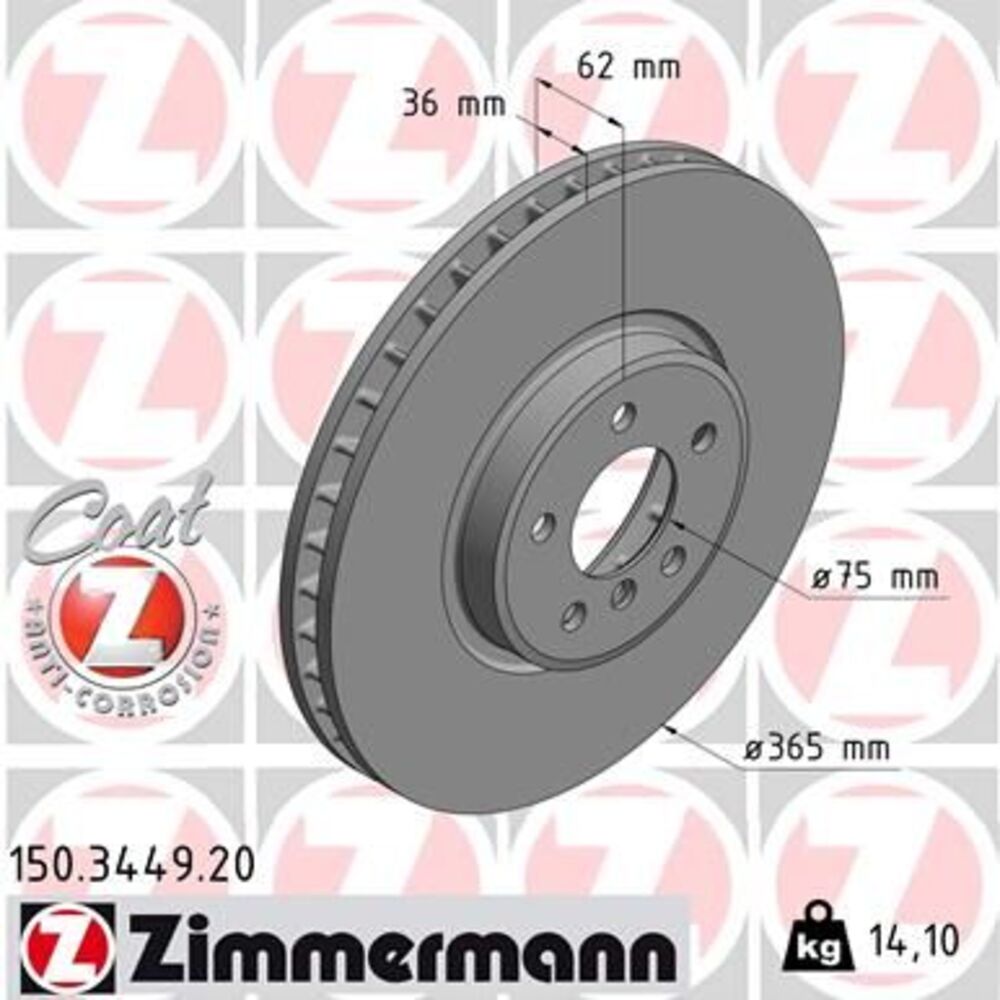

Zimmermann 150.3449.20 is a pair of internally vented brake discs (rotors). Each disc is 365 mm in diameter and 36 mm thick when new, with a 62 mm hat height. The minimum (discard) thickness is 34.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 886 481 and 2 other OE numbers. Confirmed to fit 7 Australian-market variants; the full list is in the fitment table on this page.
