Zimmermann 345mm Brake Disc Set (2 pcs) 150.3480.20
Part No. 150.3480.20
Check this part fits your car
Select your vehicle and we will confirm it against the 22 variants listed for this part.
$496.00
incl. GST
Rear axle
345 x 24 mm
Fits 22 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

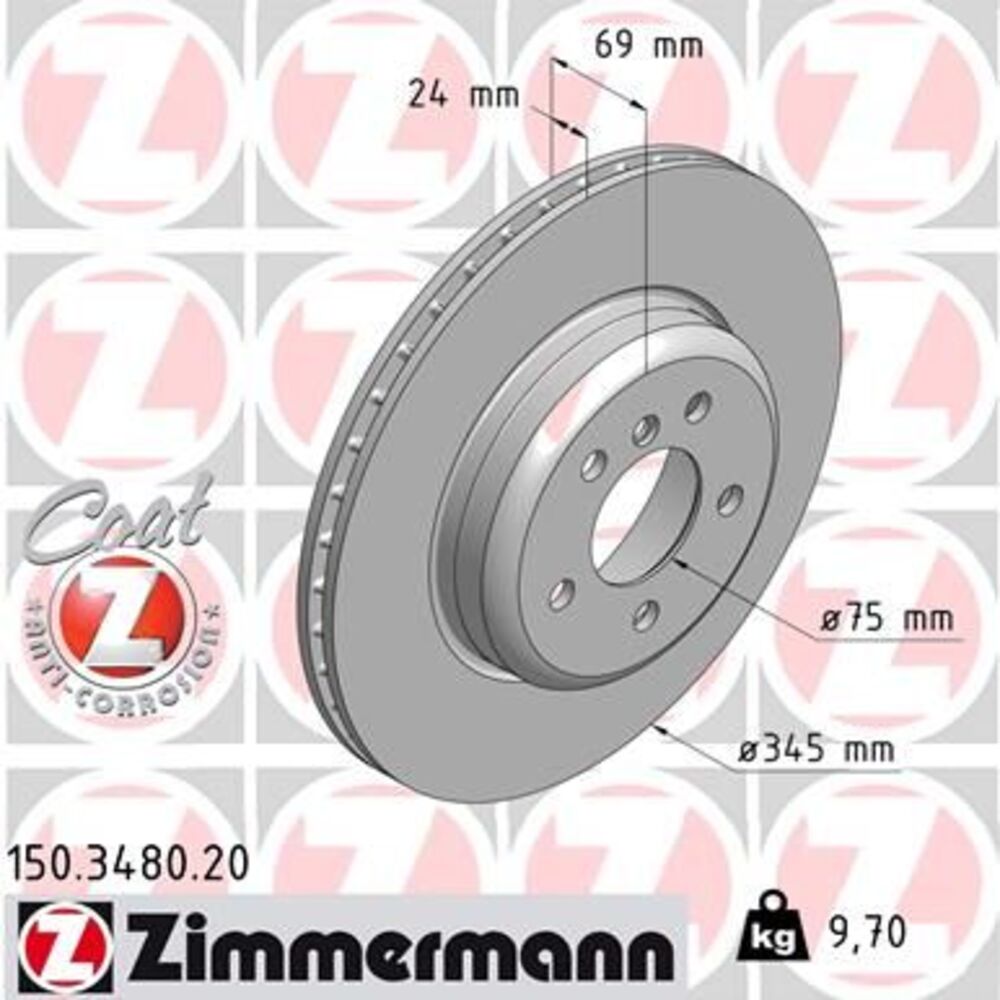

Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter345 mm
Thickness when new24 mm
Height69 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight9.7 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3480.20
Fits OE / OEM numbers
3420 6 894 381
3421 6 775 289
Vehicle fitment
22 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 5 Series | F10 | 530i, 535 i, 535 i M Sport | 2010–2016 | 225 kW |
| BMW 5 Series | F10 | 550 i | 2010–2013 | 300 kW |
| BMW 5 Series | F10 | 535 d | 2010–2011 | 220 kW |
| BMW 5 Series | F10 | 528 i, 528i M Sport | 2011–2016 | 180 kW |
| BMW 5 Series | F10 | 530 d, 535 d | 2011–2016 | 190 kW |
| BMW 5 Series | F10 | 535 d | 2011–2016 | 230 kW |
| BMW 5 Series | F10 | 550 i | 2013–2016 | 330 kW |
| BMW 5 Series Gran Turismo | F07 | 535 i | 2009–2017 | 225 kW |
| BMW 5 Series Gran Turismo | F07 | 530 d | 2009–2012 | 180 kW |
| BMW 5 Series Gran Turismo | F07 | 520 d | 2011–2017 | 135 kW |
Product overview
Zimmermann 150.3480.20 is a pair of internally vented brake discs (rotors). Each disc is 345 mm in diameter and 24 mm thick when new, with a 69 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3420 6 894 381 and 1 other OE number. Confirmed to fit 22 Australian-market variants; the full list is in the fitment table on this page.
