Zimmermann 348mm Front LH Brake Disc 150.3478.20
Part No. 150.3478.20
Check this part fits your car
Select your vehicle and we will confirm it against the 27 variants listed for this part.
$340.00
incl. GST
Front axle
348 x 36 mm
Fits 27 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter348 mm
Thickness when new36 mm
Height66 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
ApprovalECE R90 approved
Minimum (discard) thickness34.4 mm
Part weight12.9 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3478.20
Fits OE / OEM numbers
3411 6 785 669
3411 6 898 729
Vehicle fitment
27 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 5 Series | F10 | 530i, 535 i, 535 i M Sport | 2010–2016 | 225 kW |
| BMW 5 Series | F10 | 528 i, 530 i | 2010–2011 | 190 kW |
| BMW 5 Series | F10 | 550 i | 2010–2013 | 300 kW |
| BMW 5 Series | F10 | 535 d | 2010–2011 | 220 kW |
| BMW 5 Series | F10 | 528 i, 528i M Sport | 2011–2016 | 180 kW |
| BMW 5 Series | F10 | 530 d, 535 d | 2011–2016 | 190 kW |
| BMW 5 Series | F10 | 535 d | 2011–2016 | 230 kW |
| BMW 5 Series | F10 | ActiveHybrid | 2011–2016 | 250 kW |
| BMW 5 Series | F10 | 550 i | 2013–2016 | 330 kW |
| BMW 5 Series Gran Turismo | F07 | 535 i | 2009–2017 | 225 kW |
Product overview

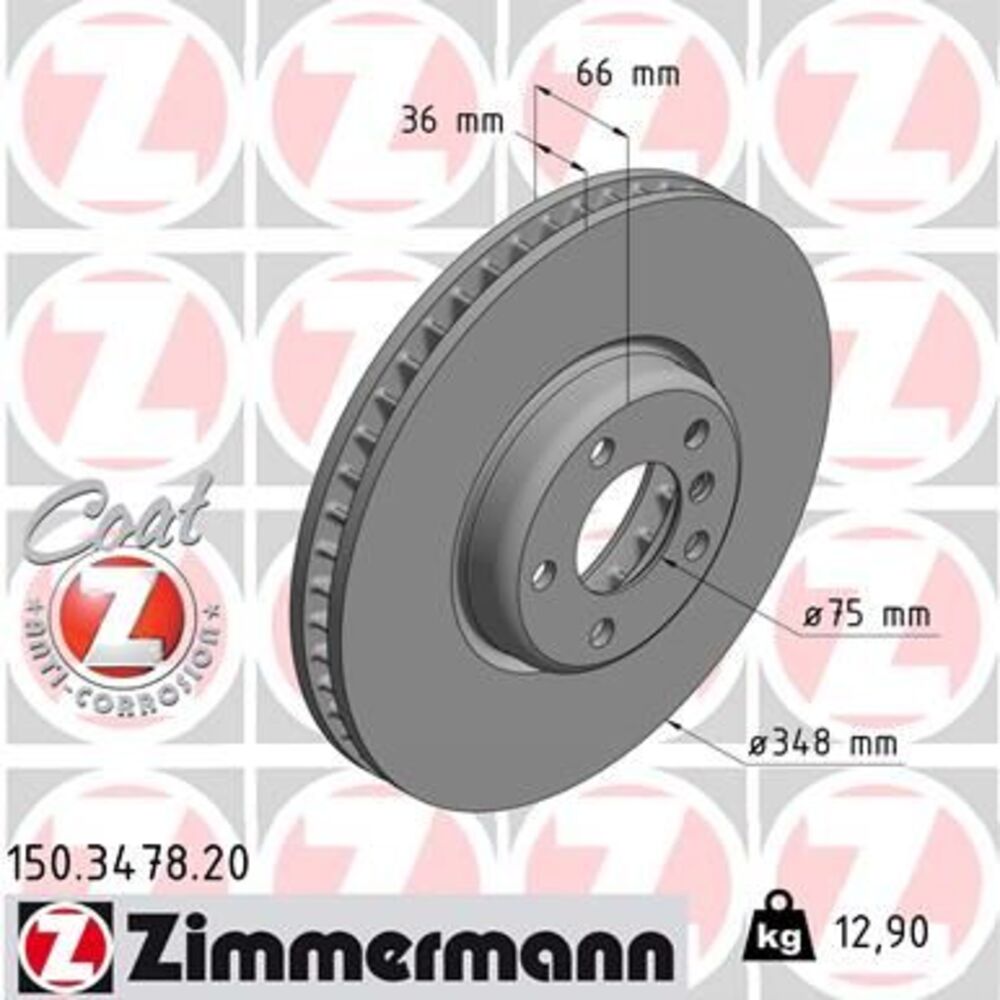

Zimmermann 150.3478.20 is an internally vented brake disc (rotor). The disc is 348 mm in diameter and 36 mm thick when new, with a 66 mm hat height. The minimum (discard) thickness is 34.4 mm. It has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. The disc is coated for corrosion protection and made from high-carbon cast iron. It is ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 785 669 and 1 other OE number. Confirmed to fit 27 Australian-market variants; the full list is in the fitment table on this page.
