Zimmermann Brake Drum Set (2 pcs) 100.1649.20
Part No. 100.1649.20
Check this part fits your car
Select your vehicle and we will confirm it against the 13 variants listed for this part.
$242.00
incl. GST
Fits 13 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Surface finishCorrosion-protective coating
Drum outside diameter240 mm
Drum friction diameter200 mm
Drum overall height59 mm
Stud holes5
Stud circle (PCD)100 mm
Centre bore65 mm
ApprovalECE R90 approved
Minimum (discard) thickness201.5 mm
Part weight3.7 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
100.1649.20
Fits OE / OEM numbers
6Q0 609 617
Vehicle fitment
13 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| VW Polo | 9N_, 9A_ | 1.4 16V | 2001–2008 | 55 kW |
| VW Polo | 9N_, 9A_ | 1.4 16V | 2001–2008 | 74 kW |
| VW Polo | 9N_, 9A_ | 1.9 TDI | 2001–2009 | 74 kW |
| VW Polo | 9N_, 9A_ | 1.4 TDI | 2005–2009 | 59 kW |
| VW Polo | 9N_, 9A_ | 1.4 16V | 2006–2009 | 59 kW |
| VW Polo | 9N_, 9A_ | 1.6 16V | 2006–2009 | 77 kW |
| VW Polo V | 6R1, 6C1 | 1.4 (6R1) | 2009–2014 | 63 kW |
| VW Polo V | 6R1, 6C1 | 1.6 TDI | 2009–now | 66 kW |
| VW Polo V | 6R1, 6C1 | 1.2 GT TSI, 1.2 TSI | 2009–now | 77 kW |
| VW Polo V | 6R1, 6C1 | 1.4 GTI | 2010–now | 132 kW |
Product overview

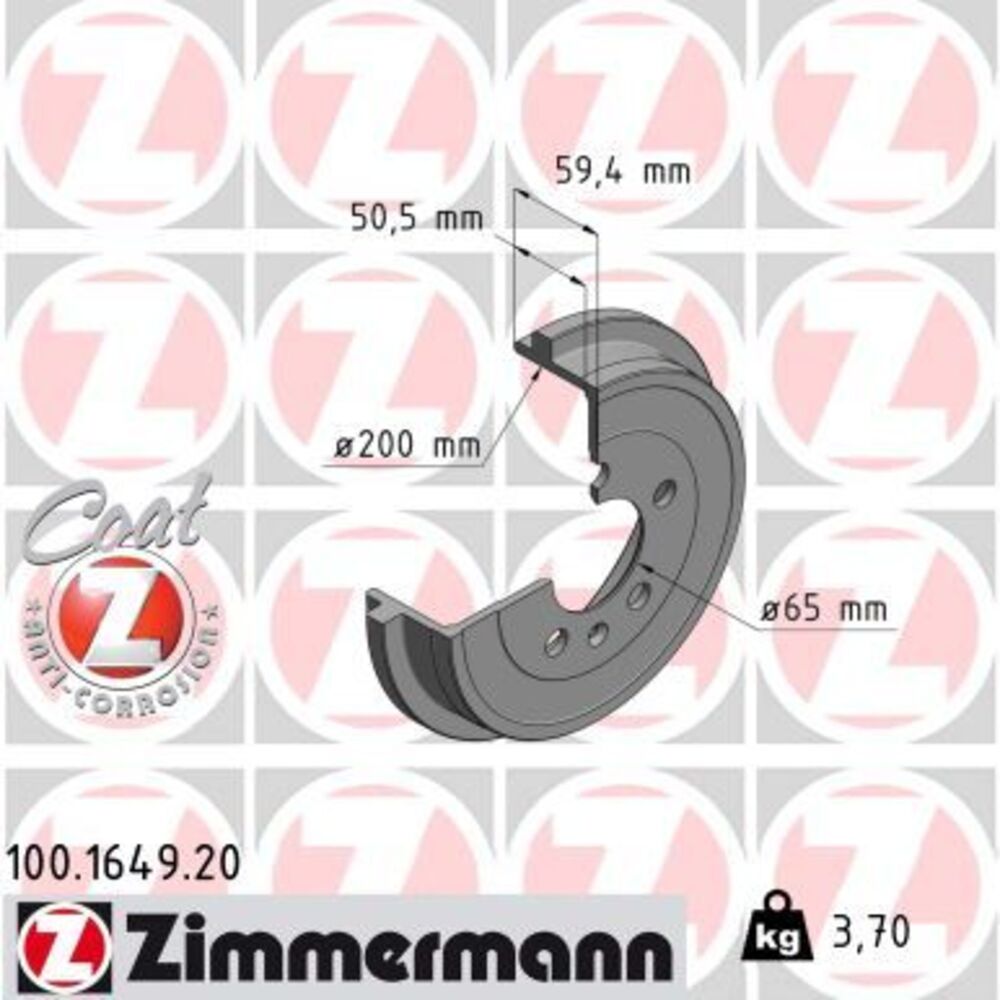

Zimmermann 100.1649.20 is a pair of brake drums. Each drum has a 200 mm friction diameter and a 240 mm outside diameter, and stands 59 mm tall. Each drum has 5 stud holes on a 100 mm stud circle (PCD), with a 65 mm centre bore. The drums are coated for corrosion protection. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to VAG OE 6Q0 609 617. Confirmed to fit 13 Australian-market variants; the full list is in the fitment table on this page.
