Zimmermann Brake Pad Set 239.1417.02

Name: Zimmermann Brake Pad Set 239.1417.02
Brand: Zimmermann
SKU: ZIM-00138
Price: 117.00 AUD
Availability: InStock

Part No. 239.1417.02

In stock 20 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 193 variants listed for this part.

$117.00 incl. GST

Rear axle Lucas-Girling 17 mm Accepts a wear sensor Caliper slide plates and Fitting bolts Fits 193 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Caliper make (factory-fitted)Lucas-Girling

Width105 mm

Height56 mm

Thickness17 mm

Wear sensorAccepts a wear sensor

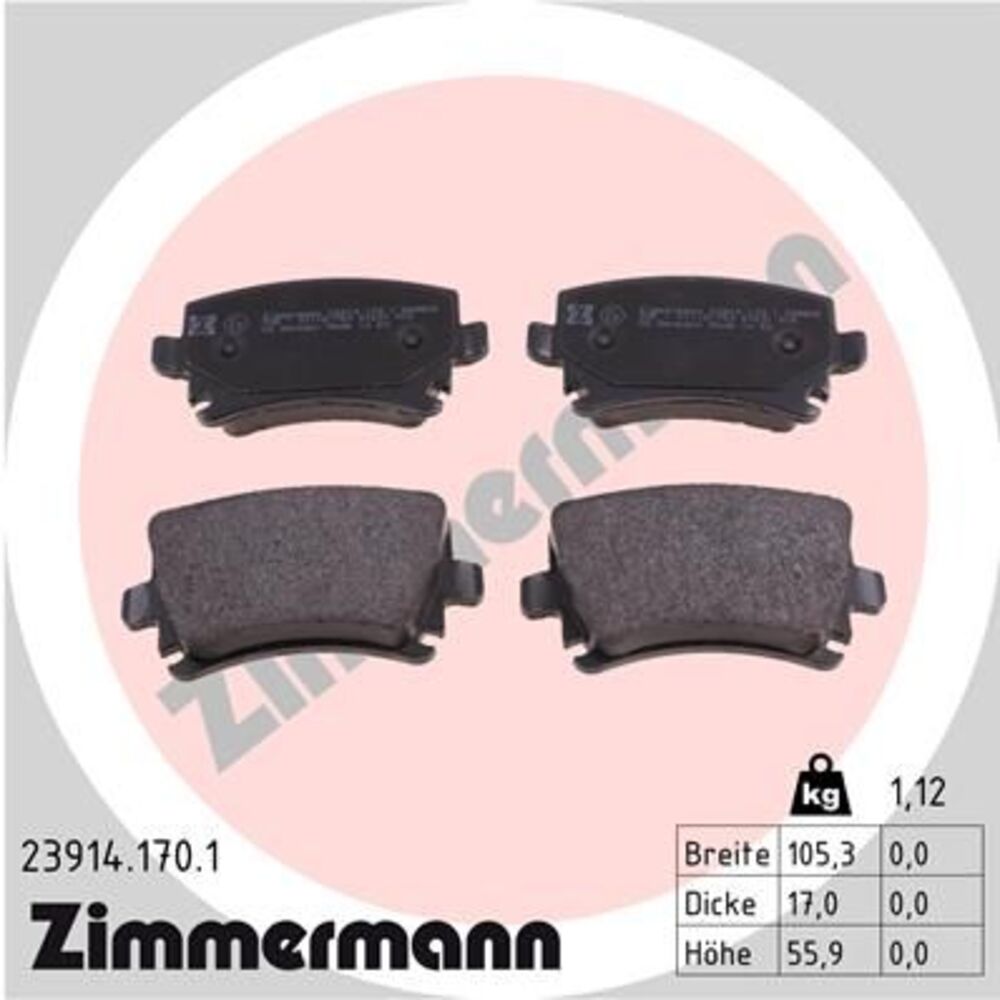

NotesThe photo shows what you receive, Caliper slide plates included

In the boxFitting bolts included

Disc typeSolid

ApprovalECE R90 approved

OE & OEM cross-reference

Supplier part number

239.1417.02

Fits OE / OEM numbers

1K0 698 451 H 1K0 698 451 1K0 698 451 B 1K0 698 451 D 1K0 698 451 E 1K0 698 451 F 1K0 698 451 G 1K0 698 451 H 1K0 698 451 K 3C0 698 451 3C0 698 451 A 3C0 698 451 B 3C0 698 451 C 4F0 698 451 A 4F0 698 451 D 4F0 698 451 E 8E0 698 451 F 8E0 698 451 J 1K0 698 451 H 1K0 698 451 H

Vehicle fitment

193 variants

Make & model	Chassis	Variant	Years	Power
Audi A3	8P1	1.6	2003–2012	75 kW
Audi A3	8P1	1.9 TDI	2003–2010	77 kW
Audi A3	8P1	2.0 FSI	2003–2008	110 kW
Audi A3	8P1	2.0 TDI 16V	2003–2012	103 kW
Audi A3	8P1	2.0 TFSI	2004–2012	147 kW
Audi A3	8P1	2.0 TFSI quattro	2004–2012	147 kW
Audi A3	8P1	2.0 TDI	2005–2008	103 kW
Audi A3	8P1	2.0 TDI	2006–2012	125 kW
Audi A3	8P1	1.8 TFSI	2006–2012	118 kW
Audi A3	8P1	1.4 TFSI	2007–2012	92 kW
Audi A3	8P1	1.6 TDI	2009–2012	77 kW
Audi A3 Convertible	8P7	1.8 TFSI	2008–2013	118 kW
Audi A3 Convertible	8P7	2.0 TFSI	2008–2013	147 kW
Audi A3 Convertible	8P7	1.6	2008–2010	75 kW
Audi A3 Sportback	8PA	1.6	2004–2013	75 kW
Audi A3 Sportback	8PA	1.9 TDI	2004–2010	77 kW
Audi A3 Sportback	8PA	2.0 FSI	2004–2008	110 kW
Audi A3 Sportback	8PA	2.0 TDI 16V	2004–2013	103 kW
Audi A3 Sportback	8PA	2.0 TFSI	2004–2013	147 kW
Audi A3 Sportback	8PA	2.0 TFSI quattro	2004–2013	147 kW
Audi A3 Sportback	8PA	2.0 TDI	2005–2008	103 kW
Audi A3 Sportback	8PA	2.0 TDI	2006–2013	125 kW
Audi A3 Sportback	8PA	1.8 TFSI	2006–2013	118 kW
Audi A3 Sportback	8PA	1.4 TFSI	2007–2013	92 kW
Audi A3 Sportback	8PA	1.6 TDI	2009–2013	77 kW
Audi A4 B6	8E2	3.0 quattro	2000–2004	162 kW
Audi A4 B6	8E2	3.0 quattro	2001–2004	160 kW
Audi A4 B7	8EC	1.8 T quattro	2004–2008	120 kW
Audi A4 B7	8EC	1.8 T, 1.8 Turbo	2004–2008	120 kW
Audi A4 B7	8EC	2.0	2004–2008	96 kW
Audi A4 B7	8EC	2.0 TDI	2004–2008	103 kW
Audi A4 B7	8EC	2.0 TDI 16V	2004–2008	103 kW
Audi A4 B7	8EC	2.0 TFSI	2004–2008	147 kW
Audi A4 B7	8EC	2.0 TFSI quattro	2004–2008	147 kW
Audi A4 B7	8EC	3.0 quattro	2004–2006	160 kW
Audi A4 B7	8EC	3.0 TDI quattro	2004–2008	150 kW
Audi A4 B7	8EC	3.2 FSI	2005–2008	188 kW
Audi A4 B7	8EC	3.2 FSI quattro	2005–2008	188 kW
Audi A4 B7	8EC	3.0 TDI quattro	2006–2008	171 kW
Audi A4 B7 Avant	8ED	1.8 T	2004–2008	120 kW
Audi A4 B7 Avant	8ED	2.0	2004–2008	96 kW
Audi A4 B7 Avant	8ED	2.0 TDI	2004–2008	103 kW
Audi A4 B7 Avant	8ED	2.0 TDI 16V	2004–2008	103 kW
Audi A4 B7 Avant	8ED	2.0 TFSI	2004–2008	147 kW
Audi A4 B7 Avant	8ED	2.0 TFSI quattro	2004–2008	147 kW
Audi A4 B7 Avant	8ED	3.0 TDI quattro	2004–2008	150 kW
Audi A4 B7 Avant	8ED	3.2 FSI quattro	2005–2008	188 kW
Audi A4 B7 Avant	8ED	3.0 TDI quattro	2006–2008	171 kW
Audi A4 B7 Convertible	8HE	2.0 TFSI 16V	2006–2009	147 kW
Audi A4 B7 Convertible	8HE	3.0 TDI quattro	2006–2009	171 kW
Audi A4 B7 Convertible	8HE	3.2 FSI	2006–2009	188 kW
Audi A4 B7 Convertible	8HE	3.2 FSI quattro	2006–2009	188 kW
Audi A4 B7 Convertible	8HE	2.7 TDI	2006–2009	132 kW
Audi A6 C6	4F2	2.4	2004–2008	130 kW
Audi A6 C6	4F2	3.0 quattro	2004–2006	160 kW
Audi A6 C6	4F2	3.0 TDI quattro	2004–2006	165 kW
Audi A6 C6	4F2	3.2 FSI	2004–2009	188 kW
Audi A6 C6	4F2	3.2 FSI quattro	2004–2008	188 kW
Audi A6 C6	4F2	4.2 quattro	2004–2006	246 kW
Audi A6 C6	4F2	3.0, 3.0 V6	2004–2006	160 kW
Audi A6 C6	4F2	2.7 TDI quattro	2004–2008	132 kW
Audi A6 C6	4F2	2.0 TFSI	2005–2011	125 kW
Audi A6 C6	4F2	S6 quattro	2006–2011	320 kW
Audi A6 C6	4F2	3.0 TDI quattro	2006–2008	171 kW
Audi A6 C6	4F2	4.2 FSI quattro	2006–2011	257 kW
Audi A6 C6	4F2	2.8 FSI	2006–2008	154 kW
Audi A6 C6	4F2	2.8 FSI quattro	2007–2008	154 kW
Audi A6 C6	4F2	2.7 TDI	2008–2011	140 kW
Audi A6 C6	4F2	2.8 FSI quattro	2008–2011	162 kW
Audi A6 C6	4F2	3.0 TDI quattro	2008–2011	176 kW
Audi A6 C6	4F2	3.0 TFSI quattro	2008–2011	213 kW
Audi A6 C6	4F2	2.0 TDI	2008–2011	125 kW
Audi A6 Allroad C6	4FH	3.0 TDI quattro	2006–2008	171 kW
Audi A6 Allroad C6	4FH	3.2 FSI quattro	2006–2008	188 kW
Audi A6 Allroad C6	4FH	4.2 FSI quattro	2006–2010	257 kW
Audi A6 Allroad C6	4FH	3.0 TDI quattro	2008–2011	176 kW
Audi A6 C6 Avant	4F5	2.4	2005–2008	130 kW
Audi A6 C6 Avant	4F5	2.4 quattro	2005–2008	130 kW
Audi A6 C6 Avant	4F5	3.0 quattro	2005–2006	160 kW
Audi A6 C6 Avant	4F5	3.0 TDI quattro	2005–2006	165 kW
Audi A6 C6 Avant	4F5	3.2 FSI quattro	2005–2008	188 kW
Audi A6 C6 Avant	4F5	4.2 quattro	2005–2006	246 kW
Audi A6 C6 Avant	4F5	2.0 TFSI	2005–2011	125 kW
Audi A6 C6 Avant	4F5	3.0 TFSI quattro	2008–2011	213 kW
Audi TT	8J3	2.0 TFSI	2006–2010	147 kW
Audi TT	8J3	3.2 V6 quattro	2006–2010	184 kW
Audi TT	8J3	2.0 TTS quattro	2008–2014	200 kW
Audi TT	8J3	1.8 TFSI	2008–2014	118 kW
Audi TT	8J3	2.0 TDI quattro	2008–2014	125 kW
Audi TT	8J3	2.0 TFSI quattro	2008–2010	147 kW
Audi TT	8J3	2.0 45 TFSI quattro, 2.0 TFSI quattro	2010–2014	155 kW
Audi TT	8J3	2.0 45 TFSI, 2.0 TFSI	2010–2014	155 kW
Audi TT Roadster	8J9	2.0 TFSI	2007–2010	147 kW
Audi TT Roadster	8J9	3.2 V6 quattro	2007–2010	184 kW
Audi TT Roadster	8J9	2.0 TTS quattro	2008–2014	200 kW
Audi TT Roadster	8J9	1.8 TFSI	2008–2014	118 kW
Audi TT Roadster	8J9	2.0 TDI quattro	2008–2014	125 kW
Audi TT Roadster	8J9	2.0 TFSI	2010–2014	155 kW
Audi TT Roadster	8J9	2.0 TFSI quattro	2010–2014	155 kW
VW Bora V	1K2	1.6	2004–2010	75 kW
VW Bora V	1K2	1.9 TDI	2005–2010	77 kW
VW Bora V	1K2	2.0 FSI	2005–2010	110 kW
VW Bora V	1K2	2.0 TDI 16V	2005–2010	103 kW
VW Bora V	1K2	1.6 FSI	2005–2010	85 kW
VW Bora V	1K2	2.0 TDI	2005–2010	103 kW
VW Bora V	1K2	2.0 TFSI	2005–2010	147 kW
VW Bora V	1K2	2.0 TDI	2006–2010	125 kW
VW Bora V	1K2	1.4 TSI	2008–2010	118 kW
VW Bora V	1K2	1.6 TDI	2009–2010	77 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	2.0 SDI	2004–2010	51 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.6	2004–2015	75 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.9 TDI	2004–2010	77 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.2 TSI	2010–2015	63 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.2 TSI	2010–2015	77 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	2.0 TDI 16V	2010–2015	103 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	2.0 TDI 16V 4motion	2010–2015	103 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	1.6	2004–2015	75 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	1.9 TDI	2004–2010	77 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	2.0 TDI 4motion	2010–2015	81 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	2.0 TDI 16V	2010–2015	103 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	2.0 TDI 16V 4motion	2010–2015	103 kW
VW CC B6	357	3.6 FSI 4motion	2008–2011	220 kW
VW CC B6	357	2.0 TDI	2008–2012	125 kW
VW CC B7	358	2.0 TDI	2011–2016	125 kW
VW CC B7	358	3.6 FSI 4motion	2011–2016	220 kW
VW CC B7	358	2.0 TDI	2012–2016	130 kW
VW Eos	1F7, 1F8	2.0 TFSI	2006–2015	147 kW
VW Eos	1F7, 1F8	2.0 TDI	2006–2008	103 kW
VW Eos	1F7, 1F8	3.2 V6, 3.2 VR6	2006–2009	184 kW
VW Eos	1F7, 1F8	2.0 TDI 16V	2008–2015	103 kW
VW Eos	1F7, 1F8	2.0 TSI	2009–2015	155 kW
VW Golf V	1K1	1.6 FSI	2003–2008	85 kW
VW Golf V	1K1	1.9 TDI	2003–2008	77 kW
VW Golf V	1K1	2.0 TDI 16V	2003–2008	103 kW
VW Golf V	1K1	1.6	2004–2008	75 kW
VW Golf V	1K1	2.0 FSI	2004–2008	110 kW
VW Golf V	1K1	2.0 GTI	2004–2009	147 kW
VW Golf V	1K1	2.0 TDI	2004–2008	103 kW
VW Golf V	1K1	1.4 GT Sport TSI, 1.4 TSI	2005–2008	125 kW
VW Golf V	1K1	2.0 GT Sport TDI, 2.0 TDI	2005–2008	125 kW
VW Golf V	1K1	3.2 R32 4motion	2005–2008	184 kW
VW Golf V	1K1	2.0 GTI	2006–2008	169 kW
VW Golf V	1K1	1.4 TSI	2007–2008	90 kW
VW Golf VI	5K1	1.4 TSI	2008–2012	90 kW
VW Golf VI	5K1	1.4 TSI	2008–2012	118 kW
VW Golf VI	5K1	2.0 TDI	2008–2013	103 kW
VW Golf VI	5K1	1.2 TSI	2008–2012	77 kW
VW Golf VI	5K1	1.6 TDI	2009–2012	77 kW
VW Golf VI	5K1	2.0 GTD, 2.0 TDI	2009–2012	125 kW
VW Golf VI	5K1	2.0 GTi	2009–2012	155 kW
VW Golf VI	5K1	2.0 GTi	2011–2012	173 kW
VW Golf VI Estate	AJ5	1.4 TSI	2009–2013	90 kW
VW Golf VI Estate	AJ5	1.4 TSI	2009–2013	118 kW
VW Golf VI Estate	AJ5	1.6 TDI	2009–2013	77 kW
VW Golf VI Estate	AJ5	2.0 TDI	2009–2013	103 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI, 1.4 TSI, Highline	2012–2017	103 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 TDI	2012–2020	110 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI	2012–2017	90 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 GTI	2013–2020	169 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 GTI, 2.0 TSI GTI	2013–2020	162 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 R 4motion, 2.0 TSI R 4motion	2013–2017	206 kW
VW Golf VII Estate	BA5, BV5	2.0 TDI	2013–now	110 kW
VW Golf VII Estate	BA5, BV5	1.4 TSI	2013–2017	90 kW
VW Golf VII Estate	BA5, BV5	1.4 TSI	2014–2020	92 kW
VW Golf VII Estate	BA5, BV5	1.4 TSI	2014–now	110 kW
VW Passat B7 Estate	365	1.8 TSI	2010–2014	118 kW
VW Passat B7 Estate	365	2.0 TDI	2010–2014	125 kW
VW Passat B7 Estate	365	3.6 FSI 4motion	2011–2014	220 kW
VW Passat B7 Estate	365	2.0 TDI	2012–2014	130 kW
VW Passat B6	3C2	2.0 FSI, 2.0 FSI Confortline	2005–2010	110 kW
VW Passat B6	3C2	2.0 TDI 16V	2005–2010	103 kW
VW Passat B6	3C2	2.0 TFSI	2005–2010	147 kW
VW Passat B6	3C2	2.0 TDI	2005–2010	125 kW
VW Passat B6	3C2	3.2 FSI 4motion	2005–2010	184 kW
VW Passat B6	3C2	3.6 R36 4motion	2007–2010	220 kW
VW Passat B6	3C2	1.8 TSI	2007–2010	118 kW
VW Passat B6	3C2	2.0 FSI	2007–2010	125 kW
VW Passat Alltrack B7	365	2.0 TDI 4motion	2012–2014	125 kW
VW Passat Alltrack B7	365	2.0 TDI 4motion	2013–2014	130 kW
VW Passat B6 Estate	3C5	1.9 TDI	2005–2010	77 kW
VW Passat B6 Estate	3C5	2.0 TDI	2005–2009	103 kW
VW Passat B6 Estate	3C5	2.0 TDI	2005–2010	125 kW
VW Passat B6 Estate	3C5	2.0 TDI 16V	2005–2010	103 kW
VW Passat B6 Estate	3C5	2.0 TDI 16V 4motion	2005–2010	103 kW
VW Passat B6 Estate	3C5	2.0 TFSI	2005–2010	147 kW
VW Passat B6 Estate	3C5	3.6 R36 4motion	2007–2010	220 kW
VW Passat B6 Estate	3C5	1.8 TSI	2007–2011	118 kW
VW Passat B7	362	1.8 TSI	2010–2014	118 kW
VW Passat B7	362	2.0 TDI	2010–2014	125 kW
VW Passat B7	362	3.6 FSI 4motion	2011–2014	220 kW
VW Passat B7	362	2.0 TDI	2012–2014	130 kW
VW Scirocco III	137, 138	2.0 R	2009–2017	188 kW
VW Touran	1T1, 1T2	2.0 FSI	2003–2007	110 kW
No vehicles match your search.

Product overview

Zimmermann 239.1417.02 is a brake pad set for vehicles fitted with Lucas-Girling calipers. The pads are 105 mm wide, 56 mm tall, and 17 mm thick. The pads are machined to take a wear sensor. In the box: caliper slide plates and fitting bolts. It is ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Skoda OE 1K0 698 451 H and 16 other OE numbers. Confirmed to fit 193 Australian-market variants; the full list is in the fitment table on this page.

Often fitted at the same time

Zimmermann

Zimmermann 282mm Brake Disc Set (2 pcs) 100.3315.20

$256.00 Same rear axle, 99 shared vehicles

Zimmermann

Zimmermann 272mm Brake Disc Set (2 pcs) 600.3241.20

$232.00 Same rear axle, 76 shared vehicles

More brake pads

Zimmermann

Zimmermann Brake Pad Set 235.8720.01

$147.00

Zimmermann

Zimmermann Brake Pad Set 231.3119.51

$112.00

Zimmermann

Zimmermann Brake Pad Set 209.6117.21

$99.00

Shop the range

Zimmermann Brake Pads Audi Brake Pads Volkswagen Brake Pads

Read the guide

Brakes

Mercedes-Benz Brake Pads and Discs (Rotors): The Replacement Guide

Mercedes brake pads and discs cost explained: what drives it, what a matched pad and rotor replacement involves, DIY vs workshop, and how to confirm fitment.

Read the guide
