Zimmermann 272mm Brake Disc Set (2 pcs) 600.3241.20
Part No. 600.3241.20
Check this part fits your car
Select your vehicle and we will confirm it against the 173 variants listed for this part.
$232.00
incl. GST
Rear axle
272 x 10 mm
Fits 173 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeSolid
Surface finishCorrosion-protective coating
Outside diameter272 mm
Thickness when new10 mm
Height48 mm
Stud holes5
Stud circle (PCD)112 mm
Centre bore65 mm
ApprovalECE R90 approved
Minimum (discard) thickness8 mm
Part weight3.9 kg
Hole pattern10/5
OE & OEM cross-reference
Supplier part number
600.3241.20
Fits OE / OEM numbers
L5QD 615 601 A
1K0 615 601 AA
5Q0 615 601 D
561 615 601
561 615 601 A
L5QD 615 601 A
L5QD 615 601 A
5Q0 615 601 D
1K0 615 601 AA
Vehicle fitment
173 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| AUDI A1 | 8X1, 8XK | 1.2 TFSI | 2010–2015 | 63 kW |
| AUDI A1 | 8X1, 8XK | 1.4 TFSI | 2010–2015 | 90 kW |
| AUDI A1 | 8X1, 8XK | 1.4 TFSI | 2011–2015 | 136 kW |
| AUDI A1 | 8X1, 8XK | 1.6 TDI | 2011–2015 | 66 kW |
| AUDI A1 | 8X1, 8XK | S1 quattro | 2014–2018 | 170 kW |
| AUDI A1 | 8X1, 8XK | 1.4 TFSI | 2014–2018 | 92 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.4 TFSI | 2011–2015 | 90 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.4 TFSI, 1.4 TFSI Ambition | 2011–2015 | 136 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.6 TDI | 2011–2015 | 66 kW |
| AUDI A1 Sportback | 8XA, 8XF | 1.2 TFSI | 2012–2015 | 63 kW |
Product overview

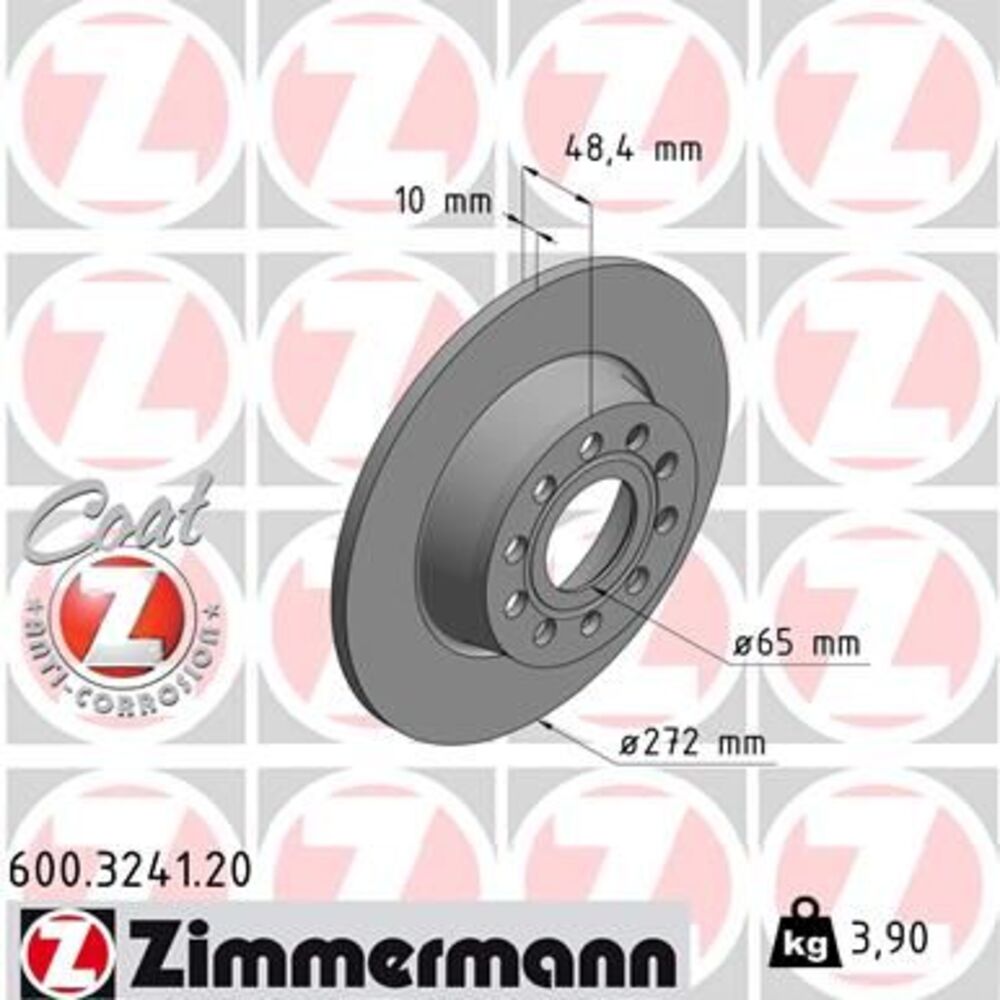

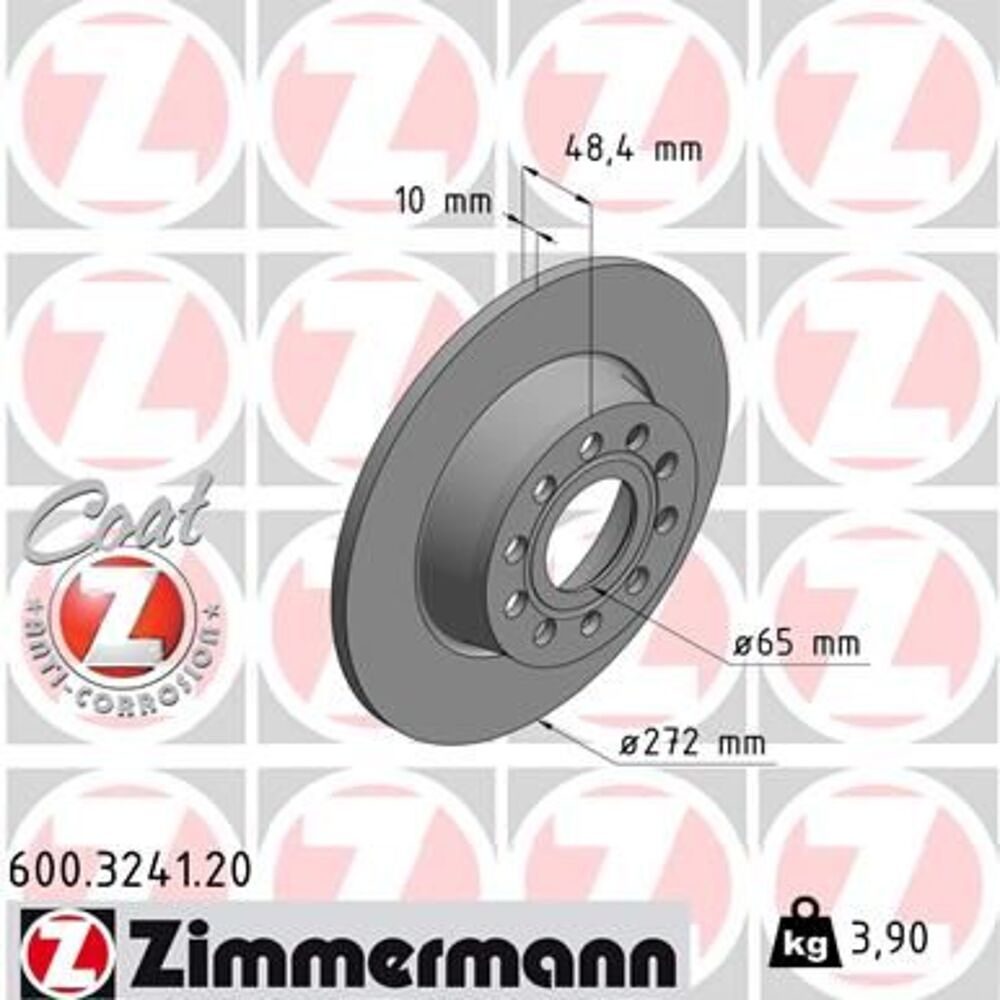

Zimmermann 600.3241.20 is a pair of solid brake discs (rotors). Each disc is 272 mm in diameter and 10 mm thick when new, with a 48 mm hat height. The minimum (discard) thickness is 8 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Audi OE L5QD 615 601 A and 4 other OE numbers. Confirmed to fit 173 Australian-market variants; the full list is in the fitment table on this page.
