ATE Brake Disc Set (2 pcs) 24.0109-0173.1
Part No. 24.0109-0173.1
Check this part fits your car
Select your vehicle and we will confirm it against the 11 variants listed for this part.
$180.00
incl. GST
Rear axle
276 x 9 mm
Fitting bolts
Fits 11 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

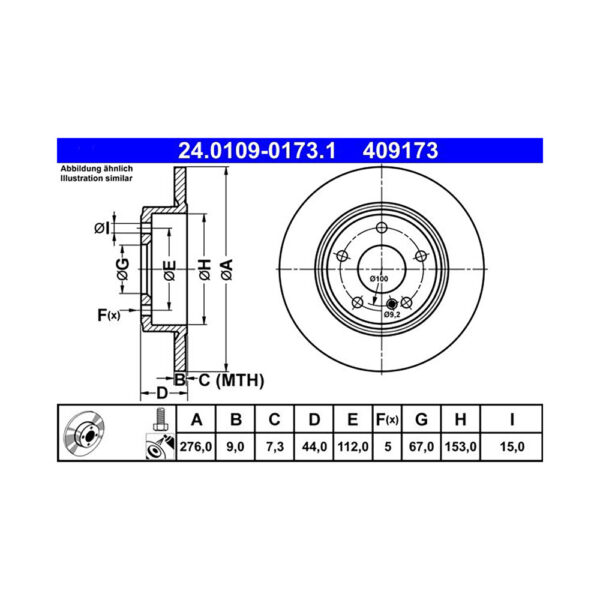

Technical specification
ApprovalE1 90R-02C0248/0660
Height44 mm
Bore diameter15 mm
Disc typeSolid
Thickness when new9 mm
Minimum (discard) thickness7.3 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter153 mm
Outside diameter276 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0109-0173.1
Fits OE / OEM numbers
246 423 00 12
A 246 423 00 12
2464230012
A2464230012
246 423 04 12
A 246 423 04 12
2464230412
A2464230412
Vehicle fitment
11 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 180 CDI (176.000) | 2012–2014 | 80 kW |
| Mercedes-Benz A-Class | W176 | A 180 CDI / d (176.012) | 2012–2018 | 80 kW |
| Mercedes-Benz A-Class | W176 | A 200 (176.043), A 200 Turbo Urban Style (176.043) | 2012–2018 | 115 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI (176.001) | 2012–2014 | 100 kW |
| Mercedes-Benz A-Class | W176 | A 180 (176.042) | 2012–2018 | 90 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI / d (176.008) | 2014–2018 | 100 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 180 (246.242) | 2011–2018 | 90 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 180 CDI (246.200) | 2011–2014 | 80 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 (246.243) | 2011–2018 | 115 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 CDI (246.201) | 2011–2014 | 100 kW |
Owner guides for these models: A-Class W176 owner guide · B-Class Sports Tourer W246, W242 owner guide
Product overview

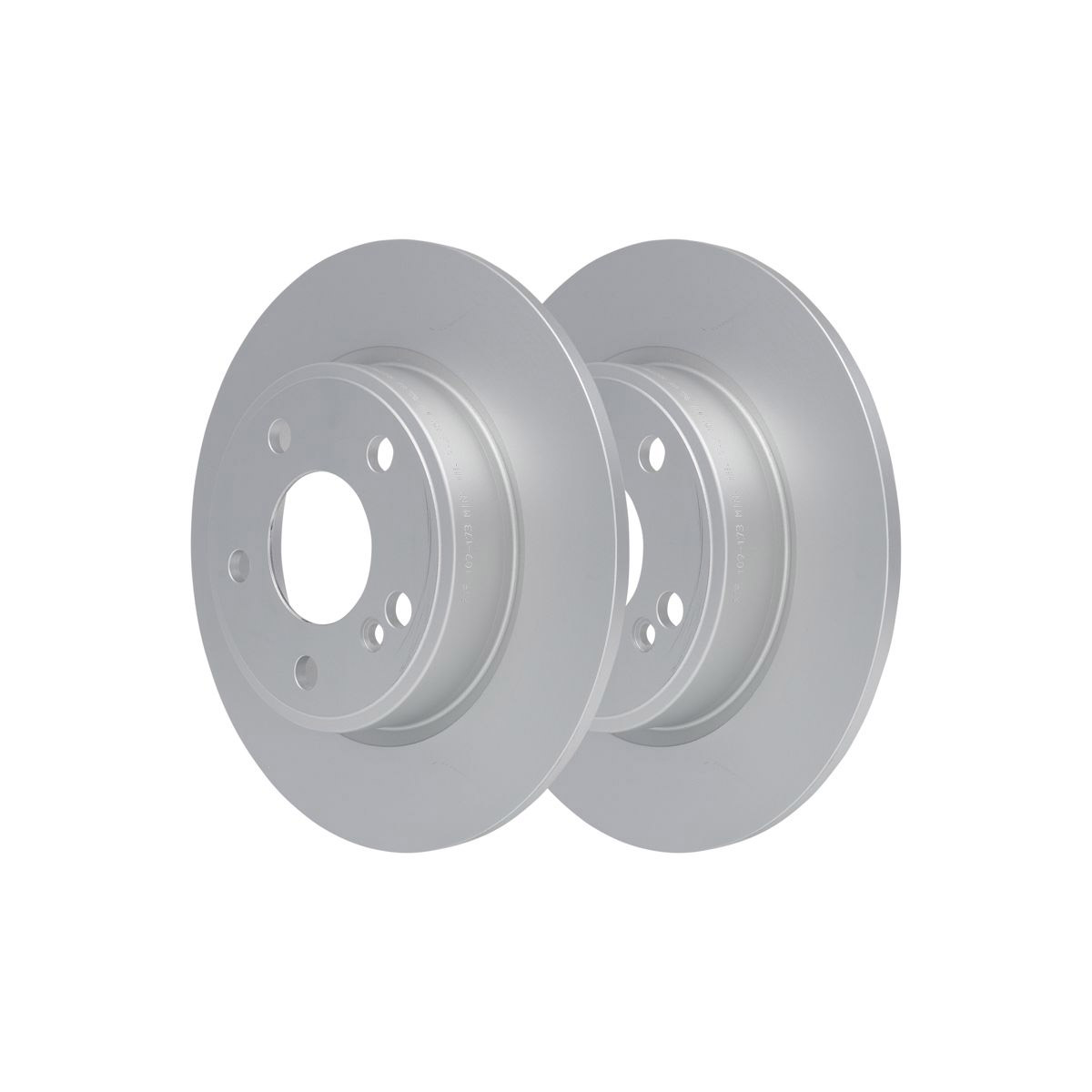

ATE 24.0109-0173.1 is a pair of solid brake discs (rotors). Each disc is 276 mm in diameter and 9 mm thick when new, with a 44 mm hat height. The minimum (discard) thickness is 7.3 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0248/0660. Cross-referenced to Mercedes-Benz OE A 246 423 00 12 and 1 other OE number. Confirmed to fit 11 Australian-market variants; the full list is in the fitment table on this page.
