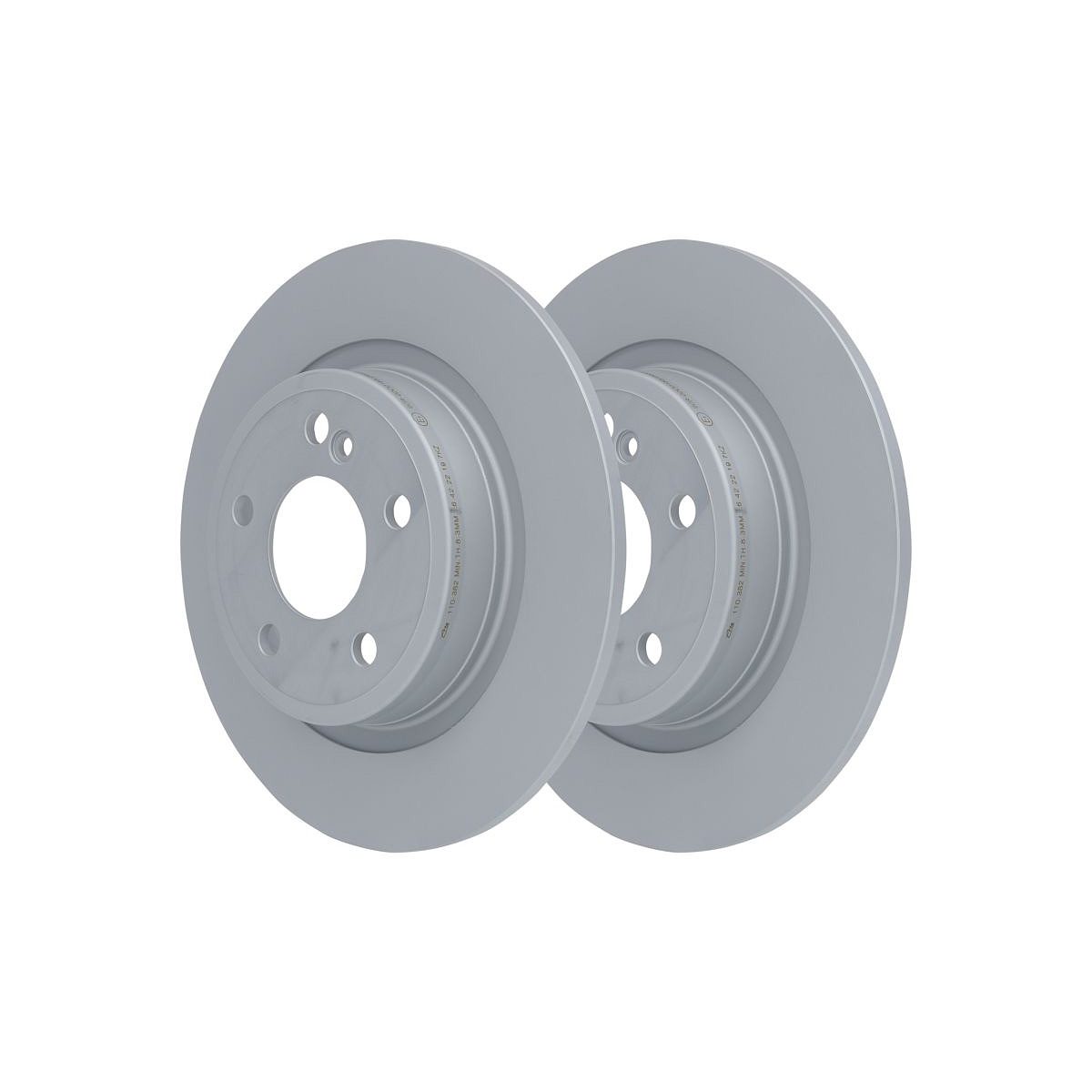

ATE Brake Disc Set (2 pcs) 24.0110-0382.1
Part No. 24.0110-0382.1
Check this part fits your car
Select your vehicle and we will confirm it against the 37 variants listed for this part.
$234.00
incl. GST
Rear axle
295 x 10 mm
Fitting bolts
Fits 37 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
ApprovalE1 90R-02C0165/0957
Height44 mm
Bore diameter15.2 mm
Disc typeSolid
Thickness when new10 mm
Minimum (discard) thickness8.3 mm
Inside diameter161 mm
Outside diameter295 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0110-0382.1
Fits OE / OEM numbers
246 423 07 12
A 246 423 07 12
2464230712
A2464230712
246 423 01 12
A 246 423 01 12
2464230112
A2464230112
Vehicle fitment
37 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 250 (176.044), A 260 (176.044) | 2012–2018 | 155 kW |
| Mercedes-Benz A-Class | W176 | A 220 CDI (176.003) | 2012–2018 | 125 kW |
| Mercedes-Benz A-Class | W176 | A 250 4-matic (176.046) | 2013–2018 | 155 kW |
| Mercedes-Benz A-Class | W176 | A 250 (176.050) | 2015–2018 | 160 kW |
| Mercedes-Benz A-Class | W176 | A 250 4-matic (176.051) | 2015–2018 | 160 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 180 (246.242) | 2011–2018 | 90 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 180 CDI (246.200) | 2011–2014 | 80 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 (246.243) | 2011–2018 | 115 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 CDI (246.201) | 2011–2014 | 100 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 220 CDI / d (246.203) | 2011–2018 | 125 kW |
Owner guides for these models: A-Class W176 owner guide · B-Class Sports Tourer W246, W242 owner guide · CLA Coupe C117 owner guide · CLA Shooting Brake X117 owner guide · GLA-Class X156 owner guide
Product overview
ATE 24.0110-0382.1 is a pair of solid brake discs (rotors). Each disc is 295 mm in diameter and 10 mm thick when new, with a 44 mm hat height. The minimum (discard) thickness is 8.3 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0165/0957. Cross-referenced to Mercedes-Benz OE A 246 423 07 12 and 1 other OE number. Confirmed to fit 37 Australian-market variants; the full list is in the fitment table on this page.
