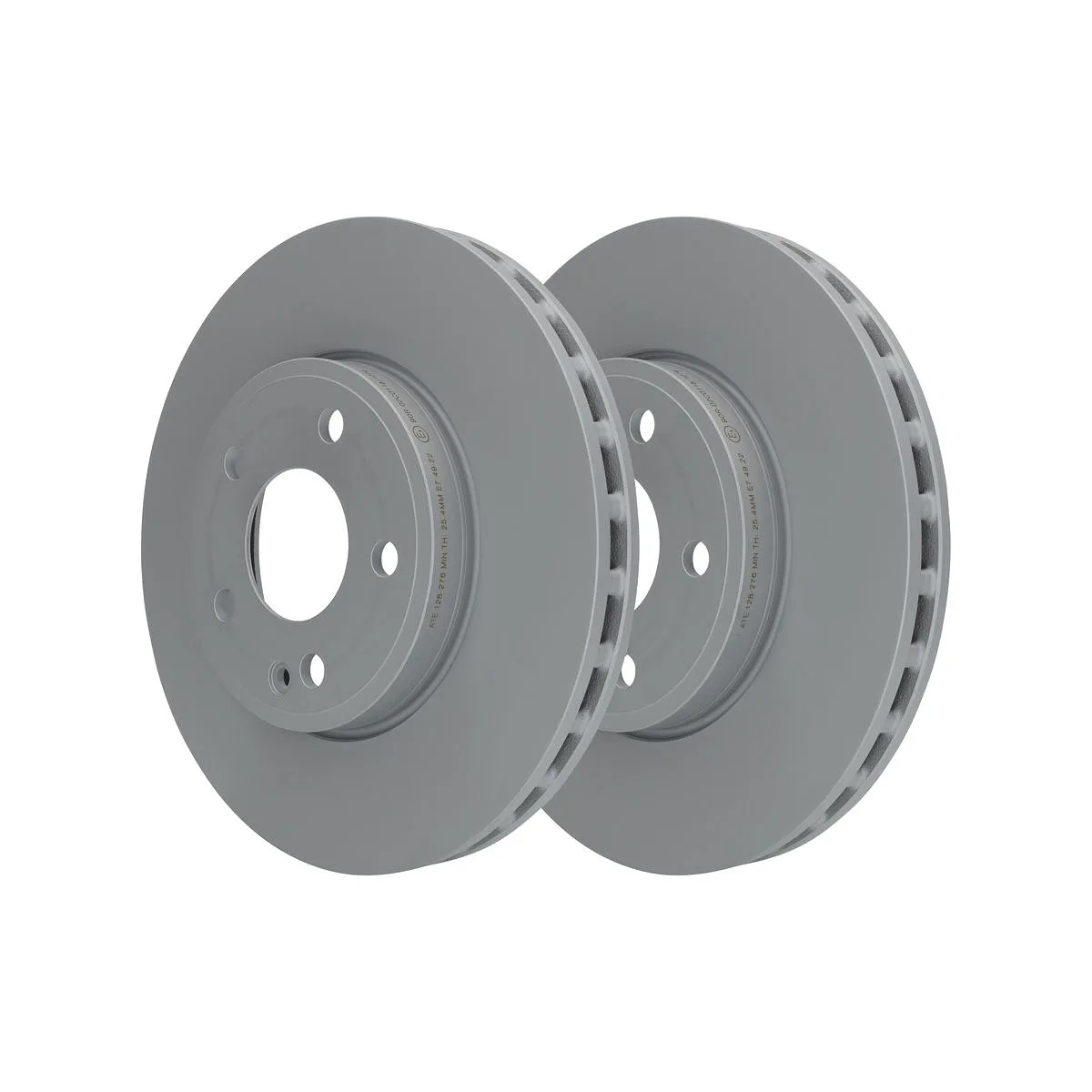

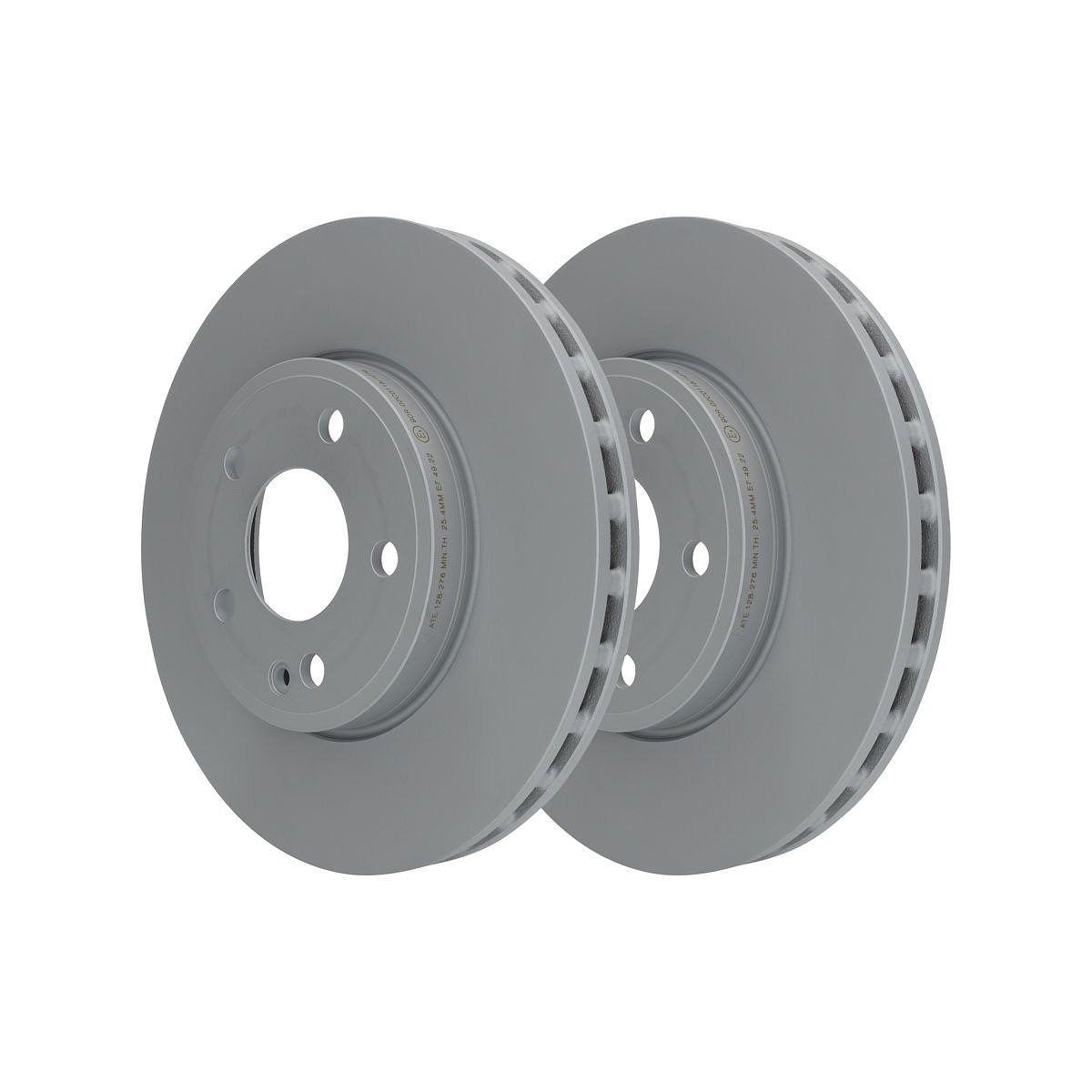

ATE Brake Disc Set (2 pcs) 24.0128-0276.1
Part No. 24.0128-0276.1
Check this part fits your car
Select your vehicle and we will confirm it against the 17 variants listed for this part.
$296.00
incl. GST
Front axle
295 x 28 mm
Fitting bolts
Fits 17 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

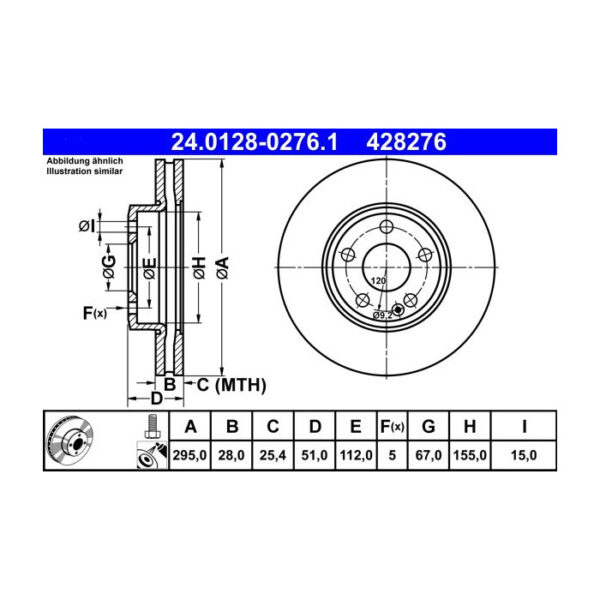

Technical specification
ApprovalE1 90R-02C0115/1079
Height51 mm
Bore diameter15 mm
Disc typeVented
Thickness when new28 mm
Minimum (discard) thickness25.4 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter155 mm
Outside diameter295 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0128-0276.1
Fits OE / OEM numbers
246 421 01 12
A 246 421 01 12
2464210112
A2464210112
Vehicle fitment
17 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 200 (176.043), A 200 Turbo Urban Style (176.043) | 2012–2018 | 115 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI (176.001) | 2012–2014 | 100 kW |
| Mercedes-Benz A-Class | W176 | A 180 (176.042) | 2012–2018 | 90 kW |
| Mercedes-Benz A-Class | W176 | A 200 CDI / d (176.008) | 2014–2018 | 100 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 180 (246.242) | 2011–2018 | 90 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 (246.243) | 2011–2018 | 115 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 CDI (246.201) | 2011–2014 | 100 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 Natural Gas Drive / B 200 c (242.848) | 2012–2017 | 115 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 200 CDI / d (246.208) | 2014–2018 | 100 kW |
| Mercedes-Benz CLA Coupe | C117 | CLA 180 (117.342) | 2013–2019 | 90 kW |
Owner guides for these models: A-Class W176 owner guide · B-Class Sports Tourer W246, W242 owner guide · CLA Coupe C117 owner guide · CLA Shooting Brake X117 owner guide · GLA-Class X156 owner guide
Product overview
ATE 24.0128-0276.1 is a pair of vented brake discs (rotors). Each disc is 295 mm in diameter and 28 mm thick when new, with a 51 mm hat height. The minimum (discard) thickness is 25.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0115/1079. Cross-referenced to Mercedes-Benz OE A 246 421 01 12. Confirmed to fit 17 Australian-market variants; the full list is in the fitment table on this page.
