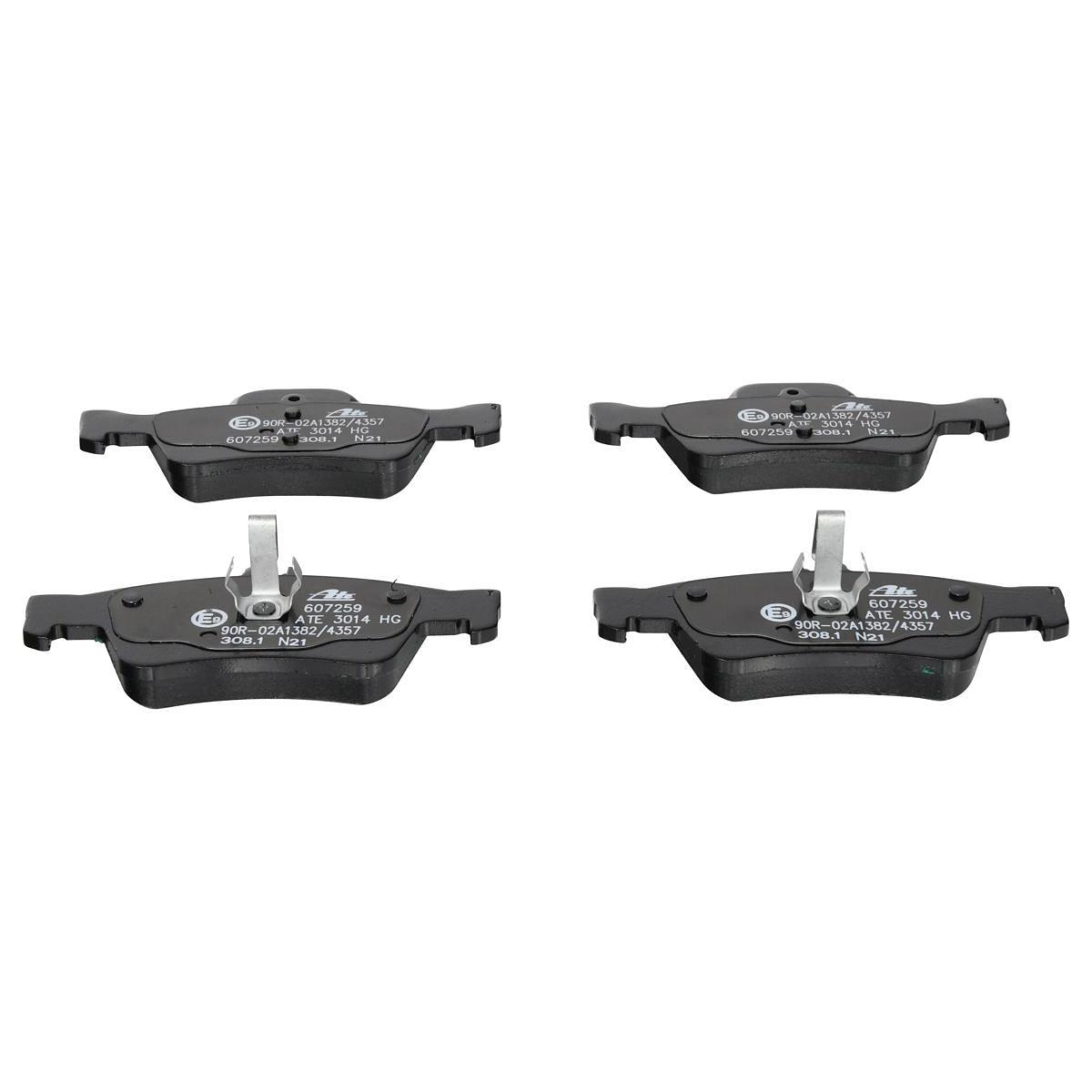

ATE Brake Pad Set 13.0460-7259.2
Part No. 13.0460-7259.2
Check this part fits your car
Select your vehicle and we will confirm it against the 112 variants listed for this part.
$139.00
incl. GST
Rear axle
ATE
16.7 mm
Accepts a wear sensor, none supplied
Fits 112 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

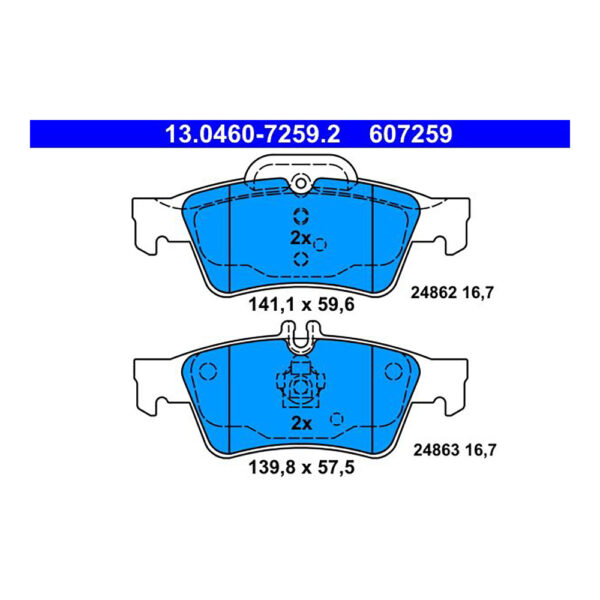

Technical specification
Thickness16.7 mm
ApprovalE9 90R-02A1382/4357
Height (1)59.6 mm
Height (2)57.5 mm
Wear sensorAccepts a wear sensor, none supplied
Caliper make (factory-fitted)ATE
Width (1)141.1 mm
Width (2)139.8 mm
OE & OEM cross-reference
Supplier part number
13.0460-7259.2
Fits OE / OEM numbers
003 420 51 20
A 003 420 51 20
0034205120
A0034205120
004 420 44 20
A 004 420 44 20
0044204420
A0044204420
000 423 02 30
A 000 423 02 30
0004230230
A0004230230
005 420 79 20
A 005 420 79 20
0054207920
A0054207920
005 420 94 20
A 005 420 94 20
0054209420
A0054209420
005 420 93 20
A 005 420 93 20
0054209320
A0054209320
007 420 67 20
A 007 420 67 20
0074206720
A0074206720
007 420 10 20
A 007 420 10 20
0074201020
A0074201020
000 420 98 04
A 000 420 98 04
0004209804
A0004209804
006 420 01 20
A 006 420 01 20
0064200120
A0064200120
Vehicle fitment
112 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz CLS | C218 | CLS 350 (218.359), CLS 350 CGI (218.359) | 2011–2014 | 225 kW |
| Mercedes-Benz CLS | C218 | CLS 350 CDI / d (218.323) | 2011–2014 | 195 kW |
| Mercedes-Benz CLS | C218 | CLS 500 (218.373), CLS 550 (218.373) | 2011–2017 | 300 kW |
| Mercedes-Benz CLS | C218 | CLS 250 CDI / BlueTEC / d (218.303, 218.304) | 2011–2017 | 150 kW |
| Mercedes-Benz CLS | C218 | CLS 350 CDI / d 4-matic (218.393) | 2011–2014 | 195 kW |
| Mercedes-Benz CLS | C218 | CLS 400 (218.365) | 2014–2017 | 245 kW |
| Mercedes-Benz CLS | C218 | CLS 400 (218.361) | 2014–2017 | 245 kW |
| Mercedes-Benz CLS | C219 | CLS 350 (219.356) | 2004–2010 | 200 kW |
| Mercedes-Benz CLS | C219 | CLS 500 (219.375) | 2004–2010 | 225 kW |
| Mercedes-Benz CLS | C219 | CLS 500 (219.372), CLS 550 (219.372) | 2006–2010 | 285 kW |
Owner guides for these models: CLS C218 owner guide · CLS C219 owner guide · CLS Shooting Brake X218 owner guide · E-Class W211 owner guide · E-Class W212 owner guide · E-Class Estate S211 owner guide · E-Class Estate S212 owner guide · S-Class W221 owner guide · S-Class Coupe C216 owner guide
Product overview
ATE 13.0460-7259.2 is a brake pad set for vehicles fitted with ATE calipers. The pads are 141.1 mm and 139.8 mm wide, 59.6 mm and 57.5 mm tall, and 16.7 mm thick. The pads are machined to take a wear sensor; no sensor is supplied with the set. It carries ECE R90 type approval, marked E9 90R-02A1382/4357. Cross-referenced to Mercedes-Benz OE A 003 420 51 20 and 9 other OE numbers. Confirmed to fit 112 Australian-market variants; the full list is in the fitment table on this page.
