ATE Brake Disc Set (2 pcs) 24.0130-0238.1
Part No. 24.0130-0238.1
Check this part fits your car
Select your vehicle and we will confirm it against the 23 variants listed for this part.
$432.00
incl. GST
Front axle
320 x 30 mm
Fitting bolts
Fits 23 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

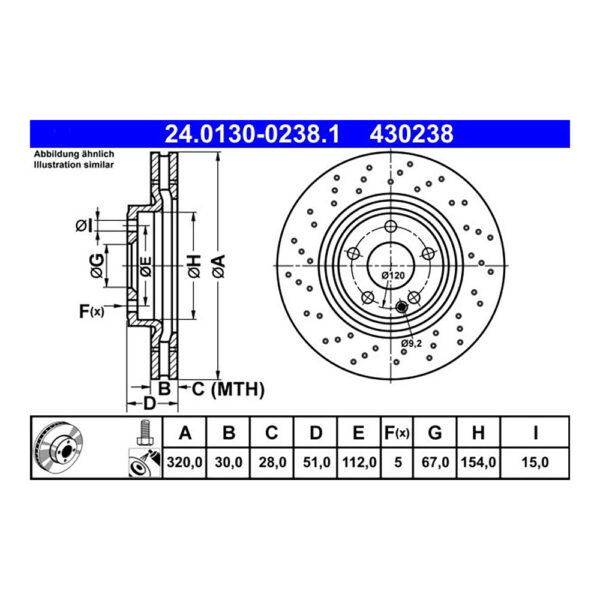

Technical specification
ApprovalE1 90R-02C0640/1129
Height51 mm
Bore diameter15 mm
Disc typeCross-drilled and vented
Thickness when new30 mm
Minimum (discard) thickness28 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter154 mm
Outside diameter320 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0130-0238.1
Fits OE / OEM numbers
246 421 27 12
A 246 421 27 12
2464212712
A2464212712
Vehicle fitment
23 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 250 (176.044), A 260 (176.044) | 2012–2018 | 155 kW |
| Mercedes-Benz A-Class | W176 | A 220 CDI (176.003) | 2012–2018 | 125 kW |
| Mercedes-Benz A-Class | W176 | A 250 4-matic (176.046) | 2013–2018 | 155 kW |
| Mercedes-Benz A-Class | W176 | A 250 (176.050) | 2015–2018 | 160 kW |
| Mercedes-Benz A-Class | W176 | A 250 4-matic (176.051) | 2015–2018 | 160 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 220 CDI / d (246.203) | 2011–2018 | 125 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 250 (246.244), B 260 (246.244) | 2012–2018 | 155 kW |
| Mercedes-Benz B-Class Sports Tourer | W246, W242 | B 250 4-matic (246.246) | 2014–2018 | 155 kW |
| Mercedes-Benz CLA Coupe | C117 | CLA 220 CDI / d (117.303) | 2013–2019 | 125 kW |
| Mercedes-Benz CLA Coupe | C117 | CLA 250 (117.344) | 2013–2019 | 155 kW |
Owner guides for these models: A-Class W176 owner guide · B-Class Sports Tourer W246, W242 owner guide · CLA Coupe C117 owner guide · CLA Shooting Brake X117 owner guide · GLA-Class X156 owner guide
Product overview

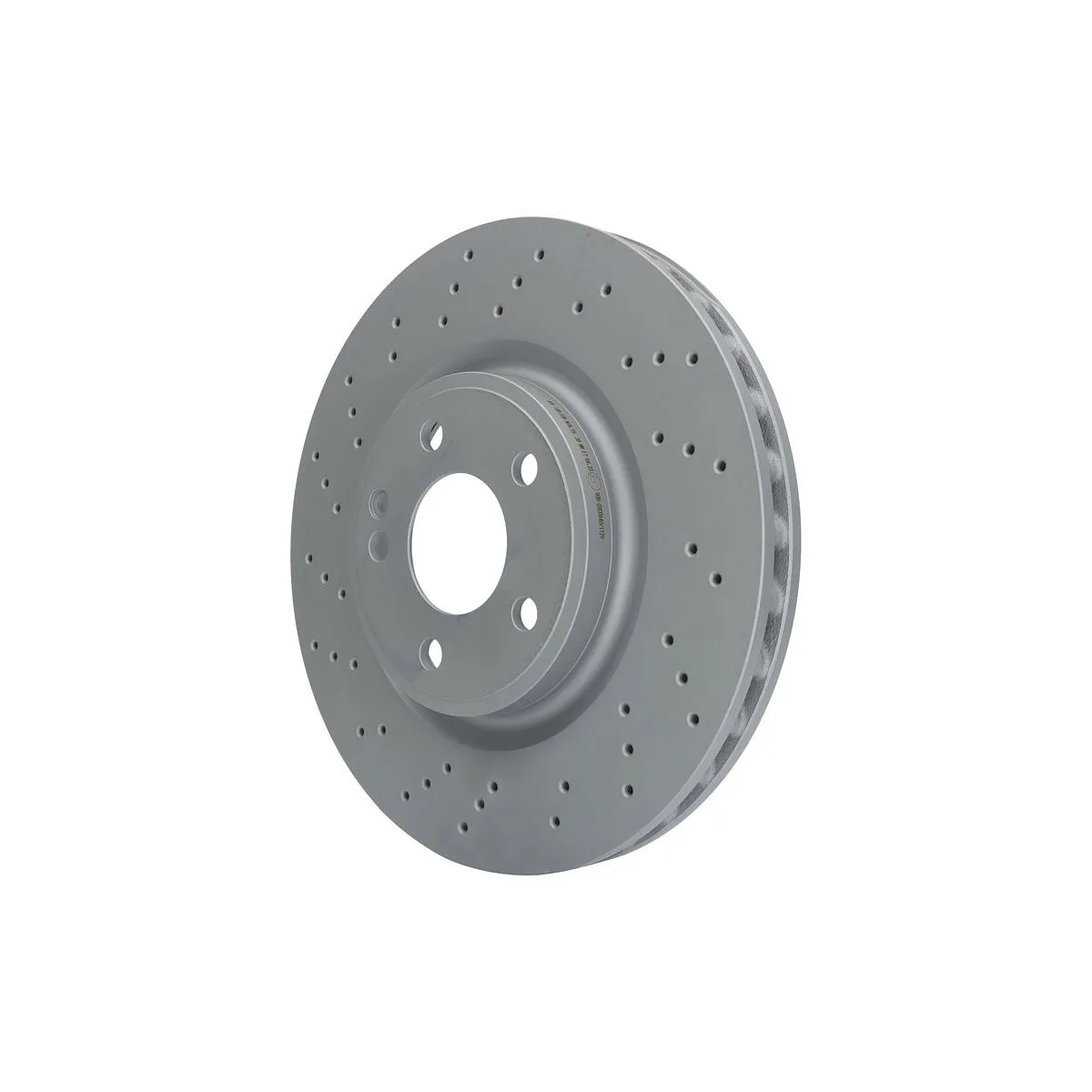

ATE 24.0130-0238.1 is a pair of cross-drilled, vented brake discs (rotors). Each disc is 320 mm in diameter and 30 mm thick when new, with a 51 mm hat height. The minimum (discard) thickness is 28 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0640/1129. Cross-referenced to Mercedes-Benz OE A 246 421 27 12. Confirmed to fit 23 Australian-market variants; the full list is in the fitment table on this page.
