ATE Brake Disc Set (2 pcs) 24.0112-0300.1
Part No. 24.0112-0300.1
Check this part fits your car
Select your vehicle and we will confirm it against the 18 variants listed for this part.
$260.00
incl. GST
Rear axle
300 x 12 mm
Fitting bolts
Fits 18 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

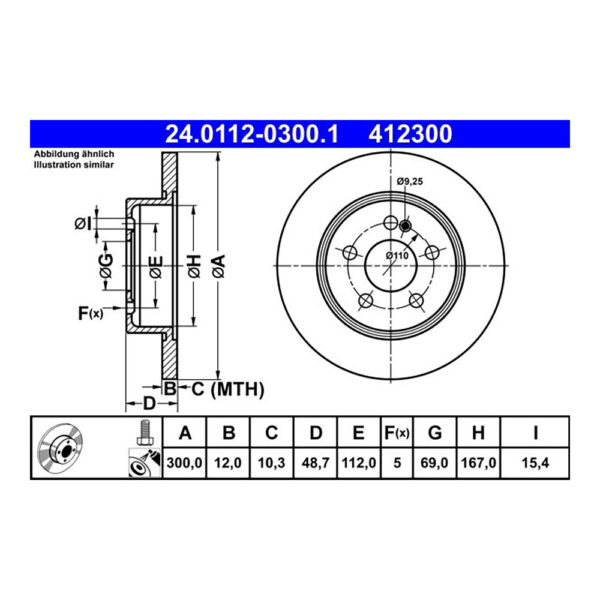

Technical specification
ApprovalE1 90R-02C0165/1025
Height48.7 mm
Bore diameter15.4 mm
Disc typeSolid
Thickness when new12 mm
Minimum (discard) thickness10.3 mm
Iron gradeHigh-carbon cast iron
Inside diameter167 mm
Outside diameter300 mm
Stud holes5
Centre bore69 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0112-0300.1
Fits OE / OEM numbers
000 423 05 12
A 000 423 05 12
0004230512
A0004230512
Vehicle fitment
18 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W205 | C 200 (205.042) | 2013–2018 | 135 kW |
| Mercedes-Benz C-Class | W205 | C 250 BlueTEC / d (205.008, 205.006), C 250 d (205.008, 205.006) | 2014–2018 | 150 kW |
| Mercedes-Benz C-Class | W205 | C 250 (205.045) | 2014–2018 | 155 kW |
| Mercedes-Benz C-Class | W205 | C 200 BlueTEC / d (205.037) | 2014–2018 | 100 kW |
| Mercedes-Benz C-Class | W205 | C 200 EQ Boost (205.077) | 2018–now | 135 kW |
| Mercedes-Benz C-Class | W205 | C 220 d (205.014) | 2018–now | 143 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 (205.442) | 2016–2018 | 135 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 EQ Boost (205.477) | 2018–now | 135 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 200 (205.342) | 2015–2018 | 135 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 250 d (205.308) | 2015–2018 | 150 kW |
Owner guides for these models: C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S205 owner guide
Product overview

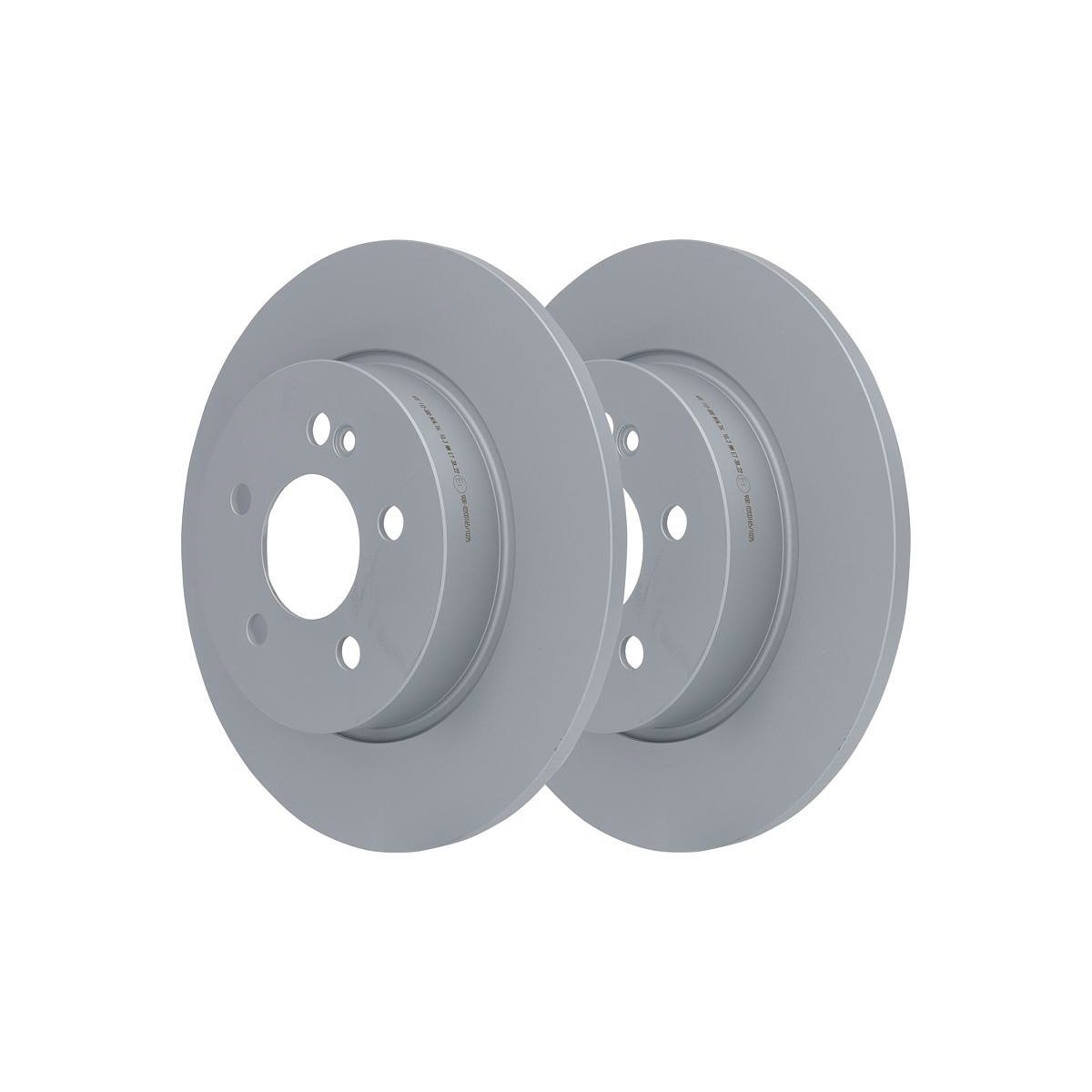

ATE 24.0112-0300.1 is a pair of solid brake discs (rotors). Each disc is 300 mm in diameter and 12 mm thick when new, with a 48.7 mm hat height. The minimum (discard) thickness is 10.3 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 69 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0165/1025. Cross-referenced to Mercedes-Benz OE A 000 423 05 12. Confirmed to fit 18 Australian-market variants; the full list is in the fitment table on this page.
