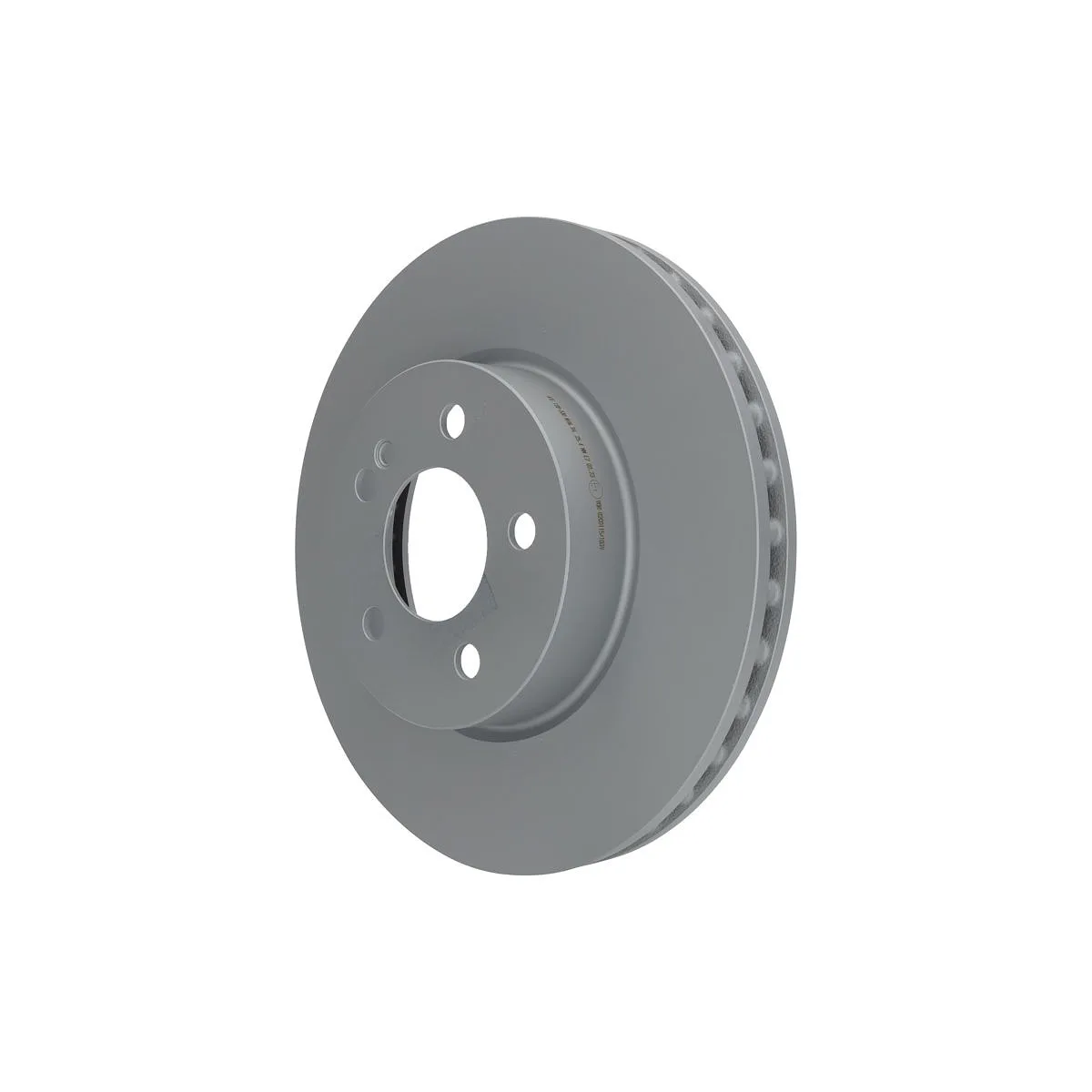

ATE Brake Disc Set (2 pcs) 24.0128-0330.1
Part No. 24.0128-0330.1
Check this part fits your car
Select your vehicle and we will confirm it against the 16 variants listed for this part.
$554.00
incl. GST
Front axle
305 x 28 mm
Fitting bolts
Fits 16 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

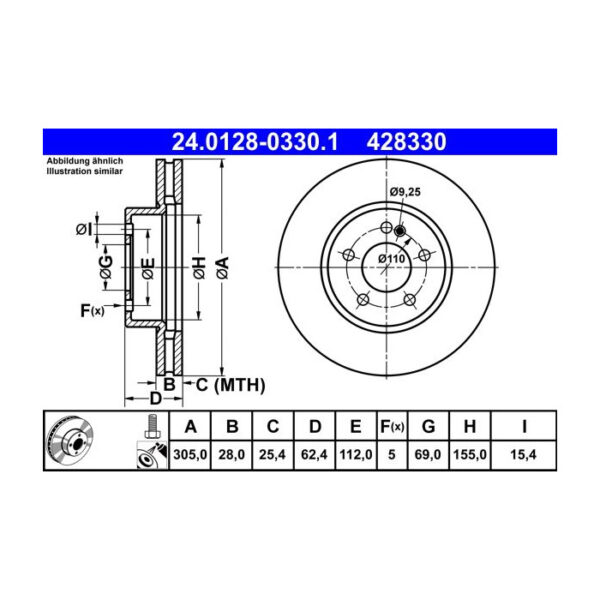

Technical specification
ApprovalE1 90R-02C0115/1039
Height62.5 mm
Bore diameter15.4 mm
Disc typeVented
Thickness when new28 mm
Minimum (discard) thickness25.4 mm
Iron gradeAlloyed high-carbon cast iron
Inside diameter155 mm
Outside diameter305 mm
Stud holes5
Centre bore69 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
24.0128-0330.1
Fits OE / OEM numbers
000 421 25 12
A 000 421 25 12
0004212512
A0004212512
Vehicle fitment
16 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W205 | C 200 (205.042) | 2013–2018 | 135 kW |
| Mercedes-Benz C-Class | W205 | C 200 EQ Boost (205.077) | 2018–now | 135 kW |
| Mercedes-Benz C-Class | W205 | C 220 d (205.014) | 2018–now | 143 kW |
| Mercedes-Benz C-Class | W205 | C 200 (205.080) | 2019–now | 150 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 (205.442) | 2016–2018 | 135 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 EQ Boost (205.477) | 2018–now | 135 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 (205.480) | 2019–now | 150 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 200 (205.342) | 2015–2018 | 135 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 220 d (205.314) | 2018–now | 143 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 200 EQ Boost (205.377), C 260 EQ Boost (205.377) | 2018–now | 135 kW |
Owner guides for these models: C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S205 owner guide · E-Class W213 owner guide · E-Class Coupe C238 owner guide
Product overview
ATE 24.0128-0330.1 is a pair of vented brake discs (rotors). Each disc is 305 mm in diameter and 28 mm thick when new, with a 62.5 mm hat height. The minimum (discard) thickness is 25.4 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 69 mm centre bore. The discs are coated for corrosion protection and made from alloyed high-carbon cast iron. In the box: fitting bolts. They carry ECE R90 type approval, marked E1 90R-02C0115/1039. Cross-referenced to Mercedes-Benz OE A 000 421 25 12. Confirmed to fit 16 Australian-market variants; the full list is in the fitment table on this page.
