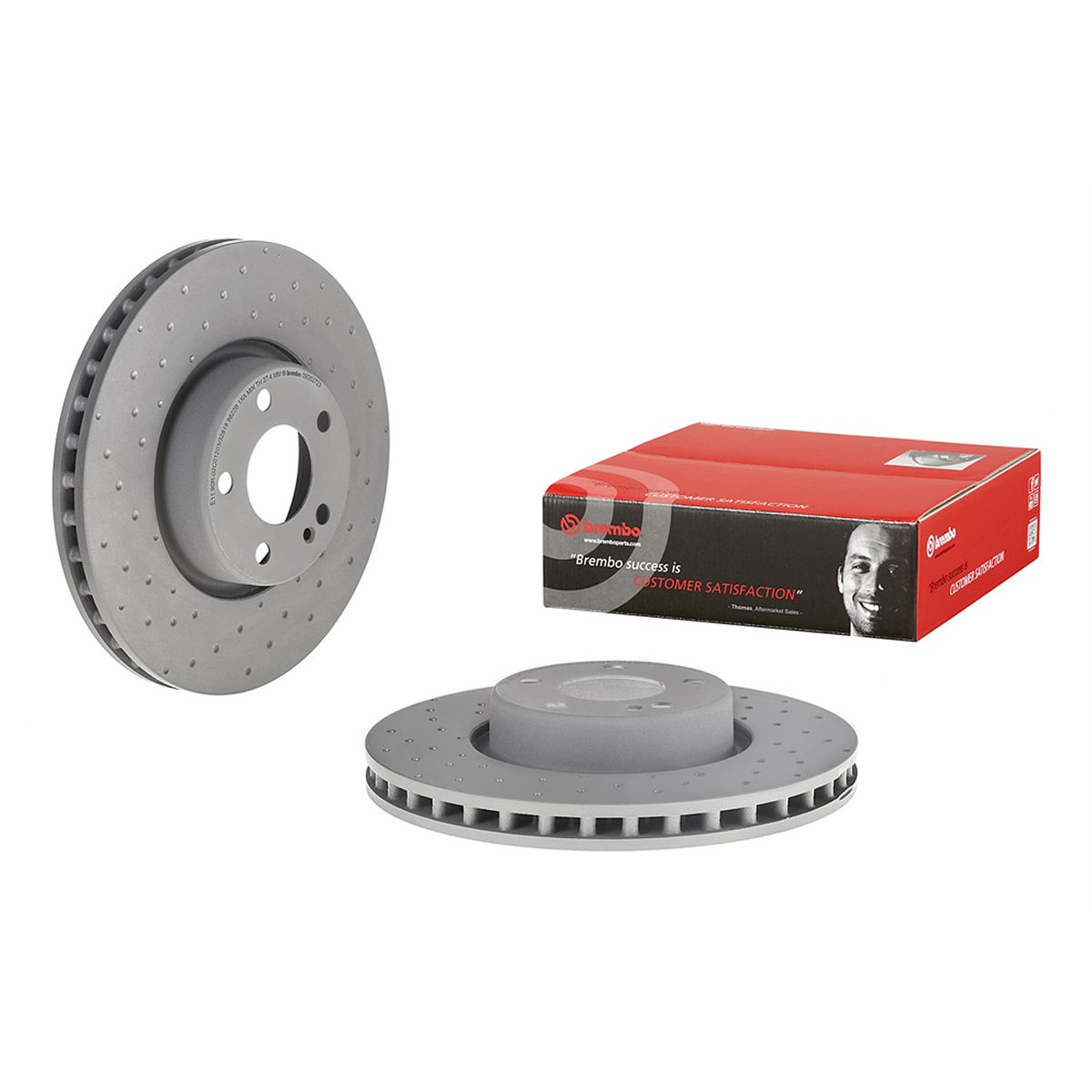

Brembo Brake Disc Set (2 pcs) 09.D527.23
Part No. 09.D527.23
Check this part fits your car
Select your vehicle and we will confirm it against the 16 variants listed for this part.
$714.00
incl. GST
Front axle
318 x 30 mm
Fitting bolts
Fits 16 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Height63 mm
Disc typeTwo-piece (alloy hat, iron ring), Cross-drilled and vented
Thickness when new30 mm
Minimum (discard) thickness28 mm
Iron gradeHigh-carbon cast iron
Outside diameter318 mm
Stud holes5
Centre bore69 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
09.D527.23
Fits OE / OEM numbers
000 421 21 12
A 000 421 21 12
0004212112
A0004212112
Vehicle fitment
16 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W205 | C 200 (205.042) | 2013–2018 | 135 kW |
| Mercedes-Benz C-Class | W205 | C 200 BlueTEC / d (205.037) | 2014–2018 | 100 kW |
| Mercedes-Benz C-Class | W205 | C 200 EQ Boost (205.077) | 2018–now | 135 kW |
| Mercedes-Benz C-Class | W205 | C 220 d (205.014) | 2018–now | 143 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 (205.442) | 2016–2018 | 135 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 EQ Boost (205.477) | 2018–now | 135 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 300 (205.483) | 2018–now | 190 kW |
| Mercedes-Benz C-Class Convertible | A205 | C 200 (205.480) | 2019–now | 150 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 200 (205.342) | 2015–2018 | 135 kW |
| Mercedes-Benz C-Class Coupe | C205 | C 220 d (205.314) | 2018–now | 143 kW |
Owner guides for these models: C-Class W205 owner guide · C-Class Convertible A205 owner guide · C-Class Coupe C205 owner guide · C-Class Estate S205 owner guide
Product overview
Brembo 09.D527.23 is a pair of two-piece, cross-drilled, vented brake discs (rotors). Each disc is 318 mm in diameter and 30 mm thick when new, with a 63 mm hat height. The minimum (discard) thickness is 28 mm. Each disc has 5 stud holes, with a 69 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 000 421 21 12. Confirmed to fit 16 Australian-market variants; the full list is in the fitment table on this page.
