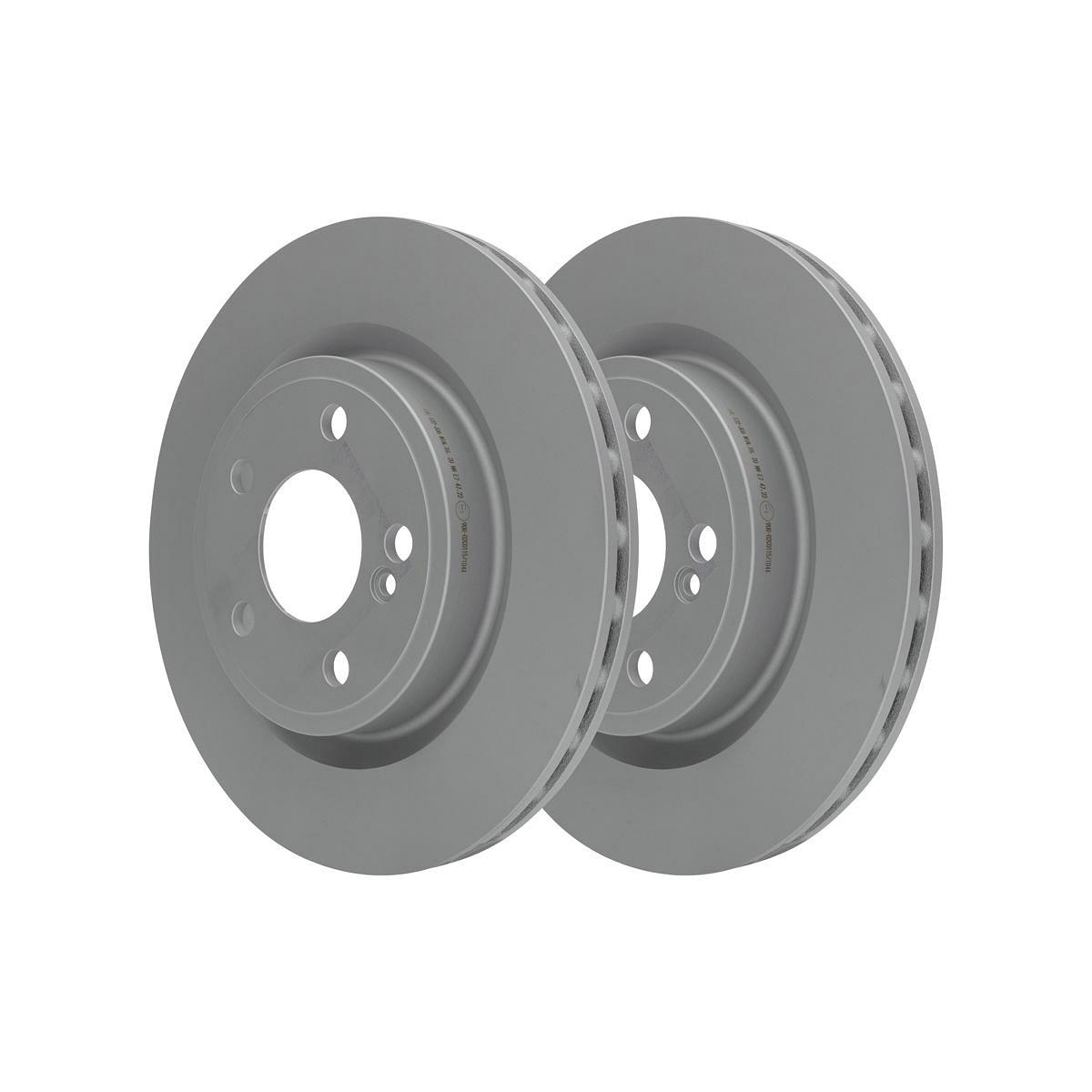

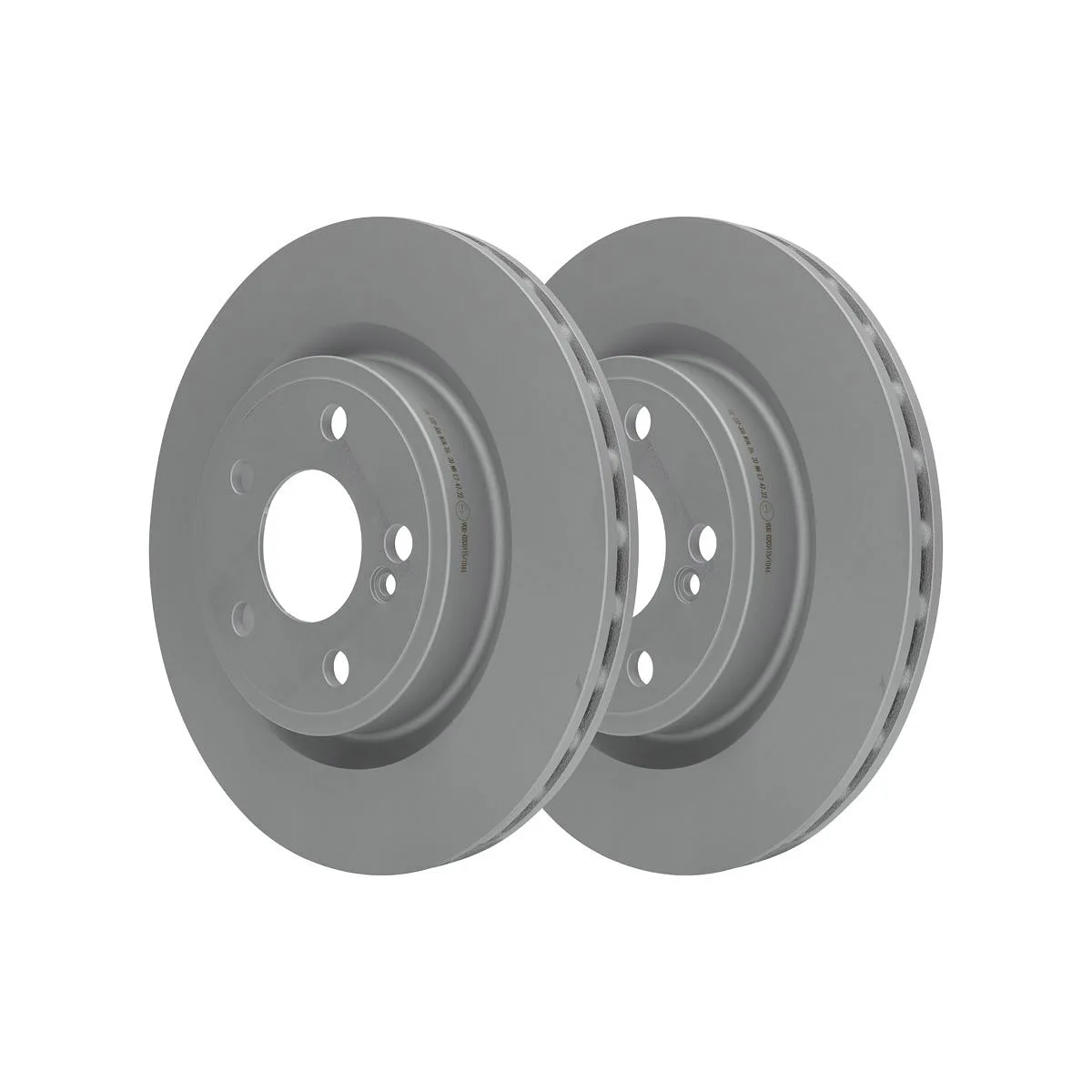

ATE Brake Disc Set (2 pcs) 24.0122-0306.1
Part No. 24.0122-0306.1
Check this part fits your car
Select your vehicle and we will confirm it against the 7 variants listed for this part.
$326.00
incl. GST
Rear axle
295 x 22 mm
Fits 7 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

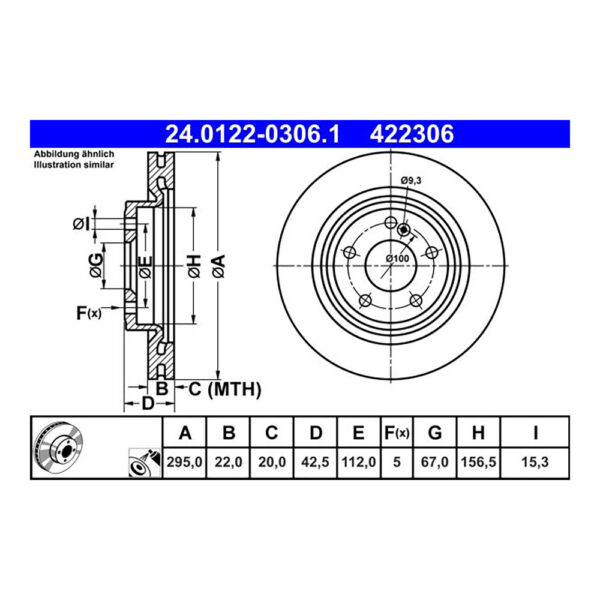

Technical specification
ApprovalE1 90R-02C0115/1044
Height42.5 mm
Bore diameter15.3 mm
Disc typeVented
Thickness when new22 mm
Minimum (discard) thickness20 mm
Iron gradeHigh-carbon cast iron
Inside diameter156.5 mm
Outside diameter295 mm
Stud holes5
Centre bore67 mm
Stud circle (PCD)112 mm
Surface finishCorrosion-protective coating
OE & OEM cross-reference
Supplier part number
24.0122-0306.1
Fits OE / OEM numbers
246 423 08 12
A 246 423 08 12
2464230812
A2464230812
Vehicle fitment
7 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz A-Class | W176 | A 250 4-matic (176.046) | 2013–2018 | 155 kW |
| Mercedes-Benz A-Class | W176 | A 250 4-matic (176.051) | 2015–2018 | 160 kW |
| Mercedes-Benz CLA Coupe | C117 | CLA 250 4-matic (117.346), CLA 260 4-matic (117.346) | 2013–2019 | 155 kW |
| Mercedes-Benz CLA Coupe | C117 | CLA 250 4-matic (117.351) | 2015–2019 | 160 kW |
| Mercedes-Benz CLA Shooting Brake | X117 | CLA 250 4-matic (117.946) | 2015–2019 | 155 kW |
| Mercedes-Benz CLA Shooting Brake | X117 | CLA 250 4-matic (117.951) | 2015–2019 | 160 kW |
| Mercedes-Benz GLA-Class | X156 | GLA 250 4-matic (156.946), GLA 260 4-matic (156.946) | 2013–now | 155 kW |
Owner guides for these models: A-Class W176 owner guide · CLA Coupe C117 owner guide · CLA Shooting Brake X117 owner guide · GLA-Class X156 owner guide
Product overview
ATE 24.0122-0306.1 is a pair of vented brake discs (rotors). Each disc is 295 mm in diameter and 22 mm thick when new, with a 42.5 mm hat height. The minimum (discard) thickness is 20 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 67 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They carry ECE R90 type approval, marked E1 90R-02C0115/1044. Cross-referenced to Mercedes-Benz OE A 246 423 08 12. Confirmed to fit 7 Australian-market variants; the full list is in the fitment table on this page.
