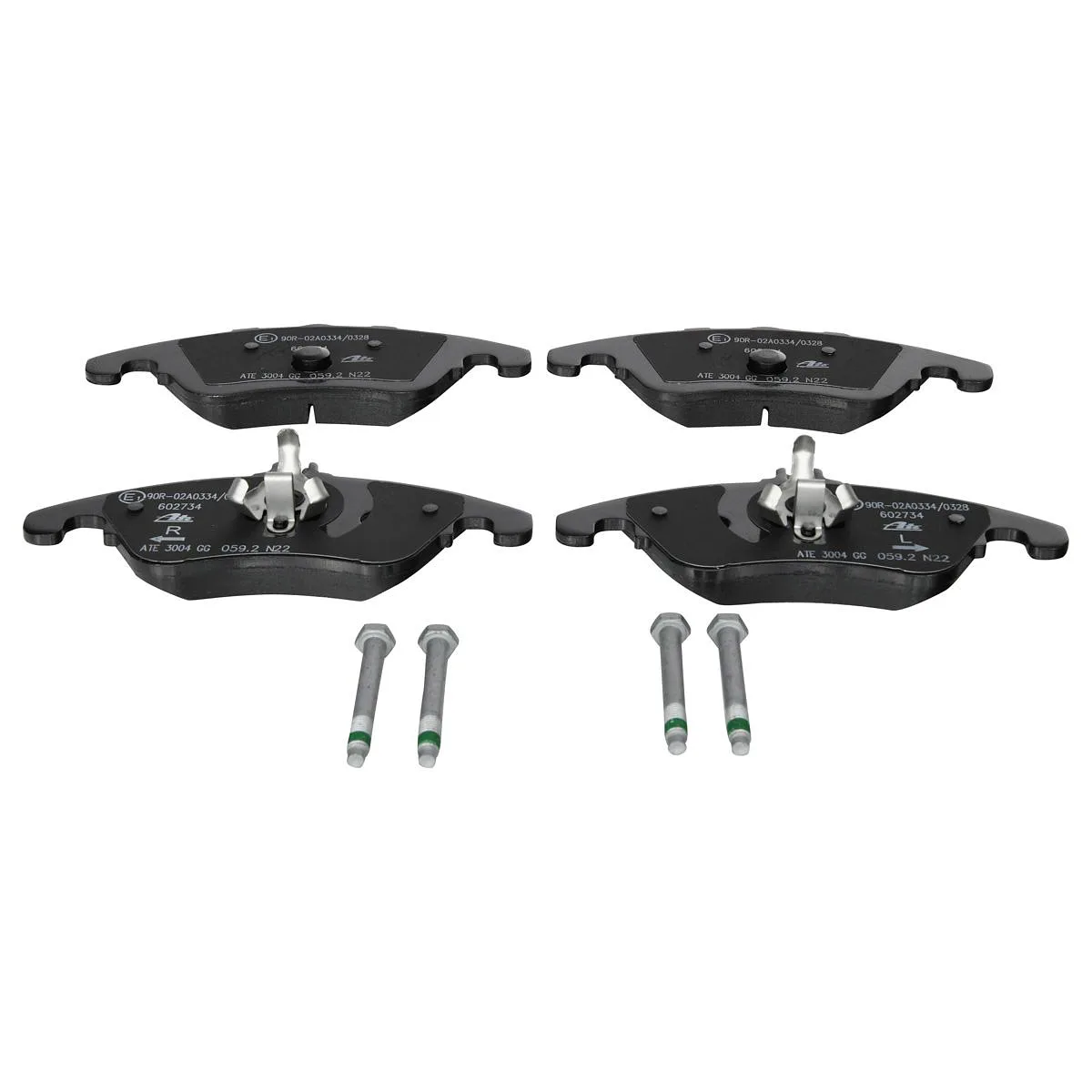

ATE Brake Pad Set 13.0460-2734.2
Part No. 13.0460-2734.2
Check this part fits your car
Select your vehicle and we will confirm it against the 104 variants listed for this part.
$180.00
incl. GST
Lucas / TRW
19 mm
Accepts a wear sensor, none supplied
Caliper bolts
Fits 104 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

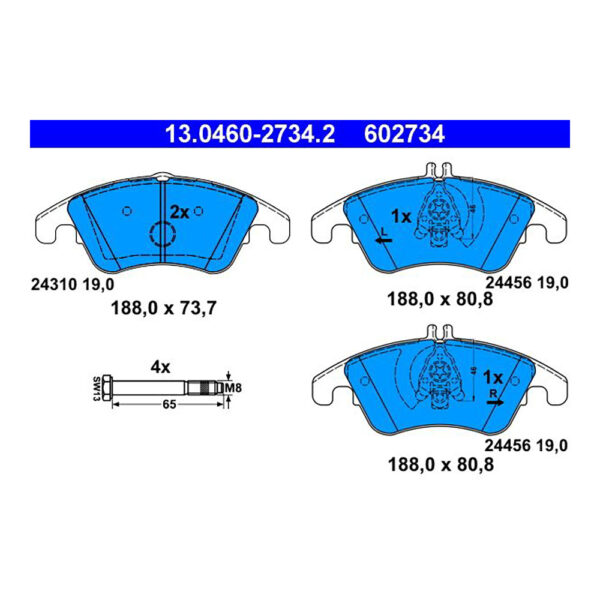

Technical specification
Thickness19 mm
ApprovalE1 90R-02A0334/0328
Width188 mm
Height (1)73.7 mm
Height (2)80.8 mm
Wear sensorAccepts a wear sensor, none supplied
Caliper make (factory-fitted)Lucas / TRW
In the boxCaliper bolts included
Bolts supplied4
Spring clamp diameter46 mm
OE & OEM cross-reference
Supplier part number
13.0460-2734.2
Fits OE / OEM numbers
006 420 28 20
A 006 420 28 20
0064202820
A0064202820
005 420 10 20
A 005 420 10 20
0054201020
A0054201020
005 420 16 20
A 005 420 16 20
0054201620
A0054201620
005 420 13 20
A 005 420 13 20
0054201320
A0054201320
007 420 75 20
A 007 420 75 20
0074207520
A0074207520
007 420 58 20
A 007 420 58 20
0074205820
A0074205820
Vehicle fitment
104 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ C-Class | W204 | C 280 (204.054) | 2007–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 320 CDI (204.022) | 2007–2014 | 165 kW |
| MERCEDES-BENZ C-Class | W204 | C 350 (204.056) | 2007–2014 | 200 kW |
| MERCEDES-BENZ C-Class | W204 | C 280 4-matic (204.081) | 2007–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 300 (204.054) | 2009–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 350 CDI (204.022) | 2009–2014 | 165 kW |
| MERCEDES-BENZ C-Class | W204 | C 250 CDI 4-matic (204.082) | 2011–2014 | 150 kW |
| MERCEDES-BENZ C-Class | W204 | C 300 CDI 4-matic (204.092) | 2011–2014 | 170 kW |
| MERCEDES-BENZ C-Class | W204 | C 350 (204.057) | 2011–2014 | 225 kW |
| MERCEDES-BENZ C-Class | W204 | C 350 4-matic (204.088) | 2011–2014 | 225 kW |
Product overview
ATE 13.0460-2734.2 is a brake pad set for vehicles fitted with Lucas / TRW calipers. The pads are 188 mm wide, 73.7 mm and 80.8 mm tall, and 19 mm thick. The pads are machined to take a wear sensor; no sensor is supplied with the set. In the box: caliper bolts. It carries ECE R90 type approval, marked E1 90R-02A0334/0328. Cross-referenced to Mercedes-Benz OE A 006 420 28 20 and 5 other OE numbers. Confirmed to fit 104 Australian-market variants; the full list is in the fitment table on this page.
