ATE Ceramic Brake Pad Set 13.0470-2781.2
Part No. 13.0470-2781.2
Check this part fits your car
Select your vehicle and we will confirm it against the 5 variants listed for this part.
$436.00
incl. GST
Lucas / TRW
18.6 mm
Accepts a wear sensor, none supplied
Fitting accessories and Caliper bolts
Fits 5 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

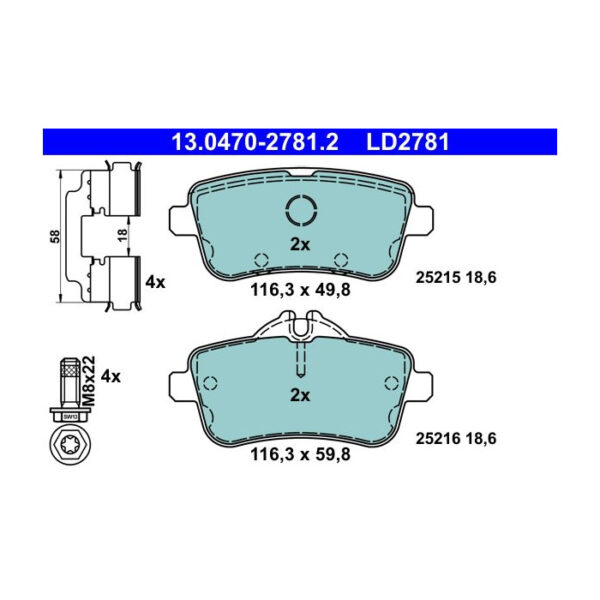

Technical specification
Thickness18.6 mm
ApprovalE9 90R-02A0258/0086
Width116.3 mm
Height (1)49.8 mm
Height (2)59.8 mm
Wear sensorAccepts a wear sensor, none supplied
NotesFitting accessories included
Caliper make (factory-fitted)Lucas / TRW
In the boxCaliper bolts included
Bolts supplied4
OE & OEM cross-reference
Supplier part number
13.0470-2781.2
Fits OE / OEM numbers
006 420 40 20
A 006 420 40 20
0064204020
A0064204020
007 420 82 20
A 007 420 82 20
0074208220
A0074208220
006 420 41 20
A 006 420 41 20
0064204120
A0064204120
007 420 83 20
A 007 420 83 20
0074208320
A0074208320
Vehicle fitment
5 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| MERCEDES-BENZ GLE | W166 | 250 d 4-matic (166.004), 300 d 4-matic (166.004) | 2015–2018 | 150 kW |
| MERCEDES-BENZ GLE | W166 | 350 d 4-matic (166.024) | 2015–2018 | 190 kW |
| MERCEDES-BENZ GLE Coupe | C292 | 350 d 4-matic (292.323, 292.324) | 2015–2019 | 190 kW |
| MERCEDES-BENZ M-Class | W166 | ML 250 CDI / BlueTEC 4-matic (166.004, 166.003) | 2011–2015 | 150 kW |
| MERCEDES-BENZ M-Class | W166 | ML 350 BlueTEC 4-matic (166.024, 166.023) | 2011–2015 | 190 kW |
Product overview

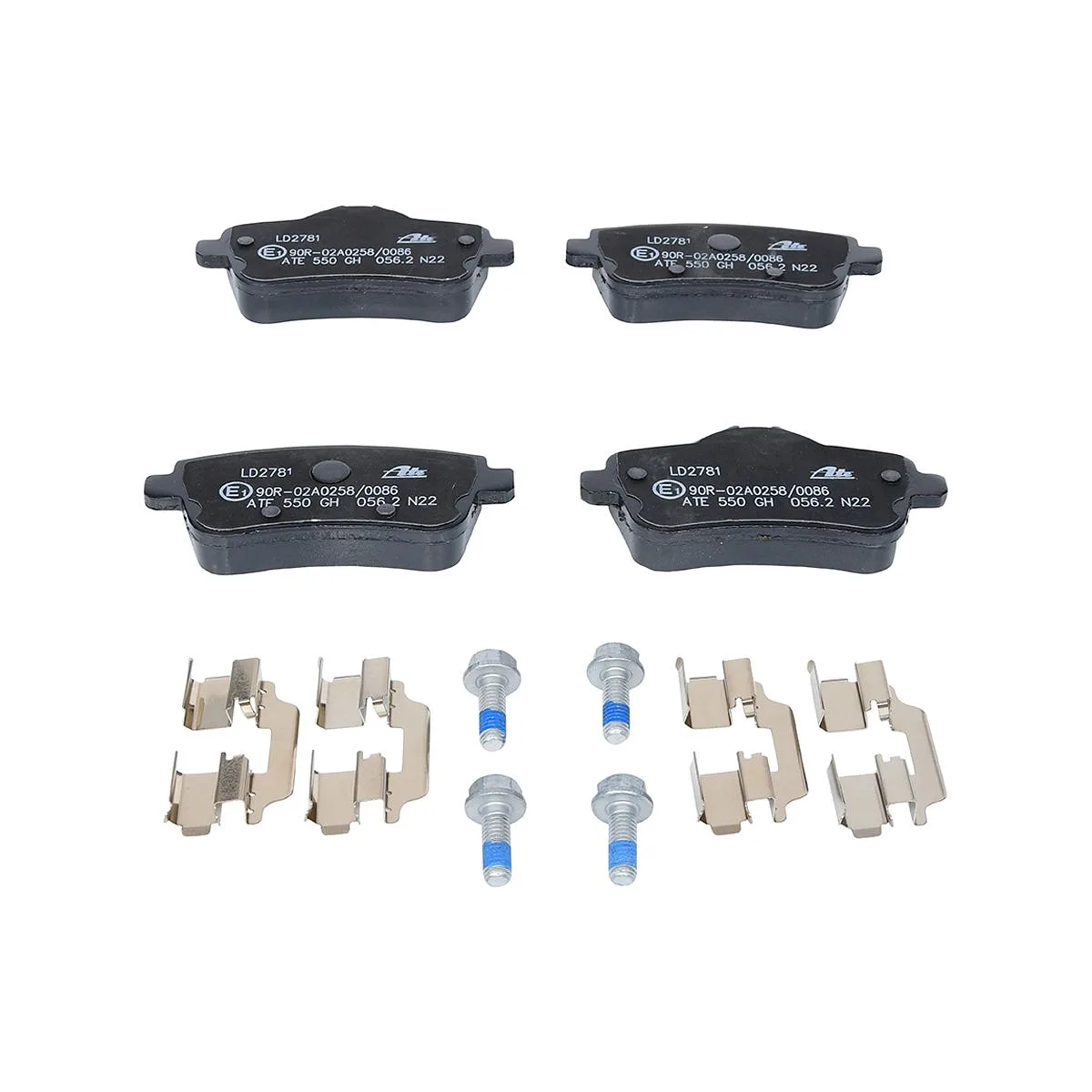

ATE 13.0470-2781.2 is a brake pad set for vehicles fitted with Lucas / TRW calipers. The pads are 116.3 mm wide, 49.8 mm and 59.8 mm tall, and 18.6 mm thick. The pads are machined to take a wear sensor; no sensor is supplied with the set. In the box: fitting accessories and caliper bolts. It carries ECE R90 type approval, marked E9 90R-02A0258/0086. Cross-referenced to Mercedes-Benz OE A 006 420 40 20 and 3 other OE numbers. Confirmed to fit 5 Australian-market variants; the full list is in the fitment table on this page.
