Brembo Brake Disc Set (2 pcs) 09.D527.13
Part No. 09.D527.13
Check this part fits your car
Select your vehicle and we will confirm it against the 5 variants listed for this part.
$676.00
incl. GST
Front axle
318 x 30 mm
Fitting bolts
Fits 5 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost

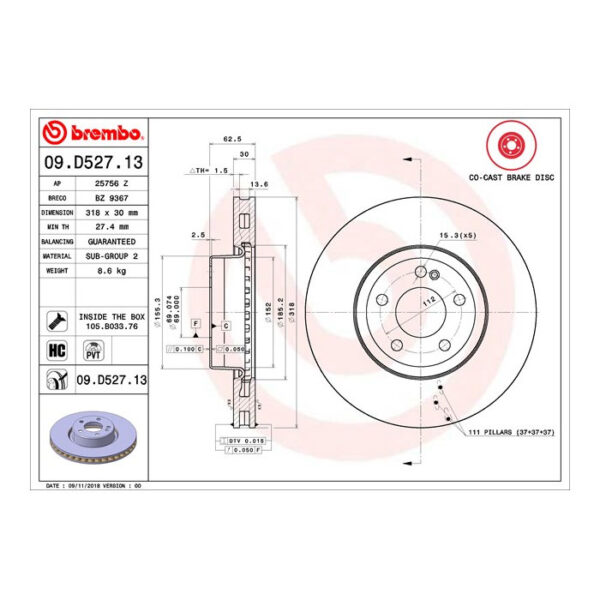

Technical specification
Height63 mm
Disc typeTwo-piece (alloy hat, iron ring), Internally vented
Thickness when new30 mm
Minimum (discard) thickness27.4 mm
Iron gradeHigh-carbon cast iron
Outside diameter318 mm
Stud holes5
Centre bore69 mm
Surface finishCorrosion-protective coating
In the boxFitting bolts included
OE & OEM cross-reference
Supplier part number
09.D527.13
Fits OE / OEM numbers
000 421 26 12
A 000 421 26 12
0004212612
A0004212612
Vehicle fitment
5 variants| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| Mercedes-Benz C-Class | W205 | C 250 BlueTEC / d (205.008, 205.006), C 250 d (205.008, 205.006) | 2014–2018 | 150 kW |
| Mercedes-Benz C-Class | W205 | C 250 (205.045) | 2014–2018 | 155 kW |
| Mercedes-Benz C-Class | W205 | C 300 BlueTEC Hybrid / h (205.012) | 2014–2018 | 170 kW |
| Mercedes-Benz C-Class Estate | S205 | C 250 (205.245) | 2014–2018 | 155 kW |
| Mercedes-Benz C-Class Estate | S205 | C 250 BlueTEC / d (205.208) | 2014–2018 | 150 kW |
Owner guides for these models: C-Class W205 owner guide · C-Class Estate S205 owner guide
Product overview

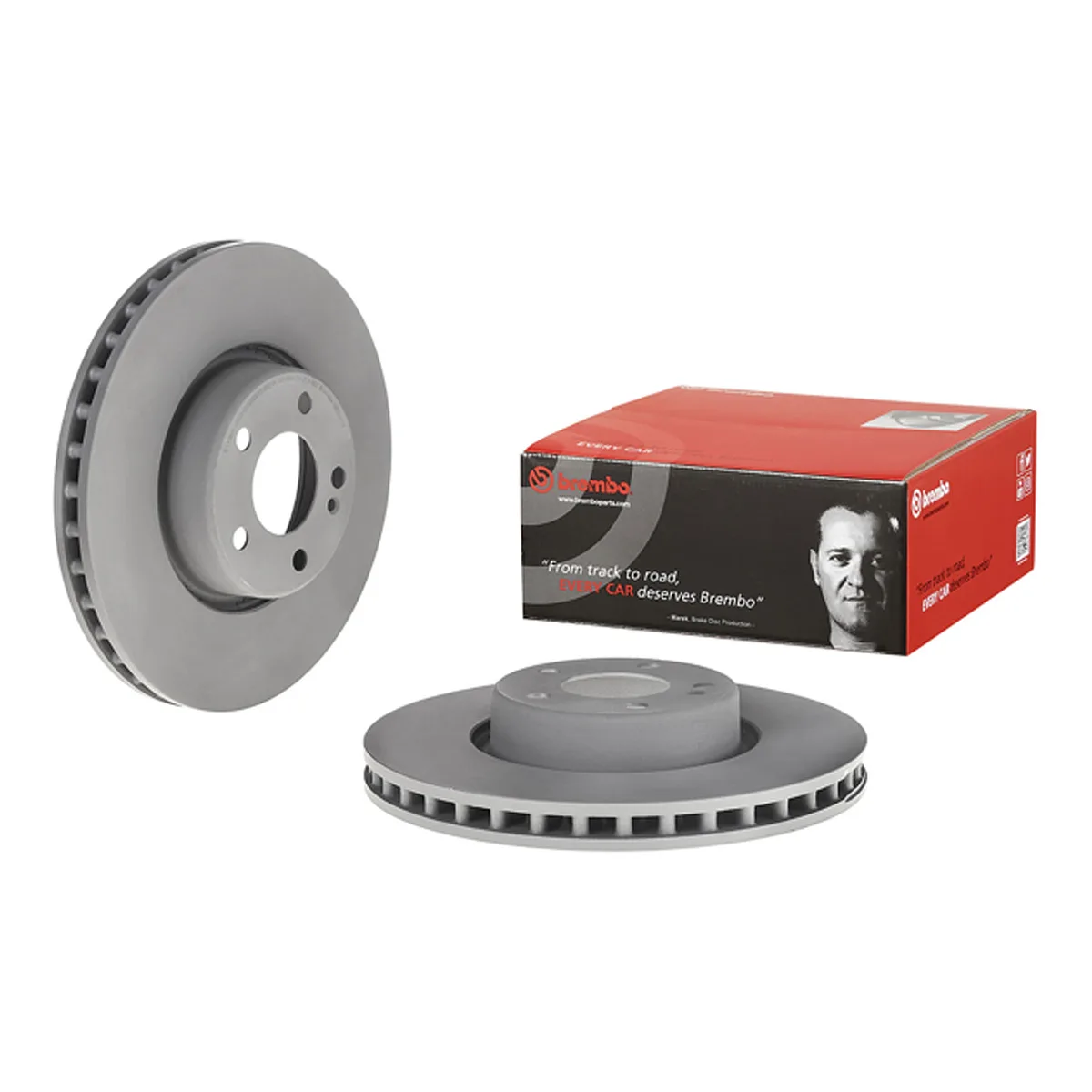

Brembo 09.D527.13 is a pair of two-piece, internally vented brake discs (rotors). Each disc is 318 mm in diameter and 30 mm thick when new, with a 63 mm hat height. The minimum (discard) thickness is 27.4 mm. Each disc has 5 stud holes, with a 69 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. In the box: fitting bolts. Cross-referenced to Mercedes-Benz OE A 000 421 26 12. Confirmed to fit 5 Australian-market variants; the full list is in the fitment table on this page.
