Zimmermann 230mm Brake Disc Set (2 pcs) 100.1236.20

Name: Zimmermann 230mm Brake Disc Set (2 pcs) 100.1236.20
Brand: Zimmermann
SKU: ZIM-00003
Price: 158.00 AUD
Availability: InStock

Part No. 100.1236.20

Low stock 23 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 56 variants listed for this part.

$158.00 incl. GST

Rear axle 230 x 9 mm Fits 56 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeSolid

Surface finishCorrosion-protective coating

Outside diameter230 mm

Thickness when new9 mm

Height41 mm

Stud holes5

Stud circle (PCD)100 mm

Centre bore65 mm

ApprovalECE R90 approved

Minimum (discard) thickness7 mm

Part weight2.62 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

100.1236.20

Fits OE / OEM numbers

5QD 615 601 A 6QD 615 601 A 6QD 615 601 B 1J0 615 601 1J0 615 601 C 1J0 615 601 N 1J0 615 601 P 2Q0 615 601 H L6QD 615 601 L6QD 615 601 A 5QD 615 601 A 6QD 615 601 6QD 615 601 A L6QD 615 601 L6QD 615 601 A 1J0 615 601 P 1J0 615 601 C 2Q0 615 601 H 1J0 615 601 5QD 615 601 A 6QD 615 601 6QD 615 601 A 6QD 615 601 B

Vehicle fitment

56 variants

Make & model	Chassis	Variant	Years	Power
Audi A1	8X1, 8XK	1.2 TFSI	2010–2015	63 kW
Audi A1	8X1, 8XK	1.4 TFSI	2010–2015	90 kW
Audi A1	8X1, 8XK	1.4 TFSI	2011–2015	136 kW
Audi A1	8X1, 8XK	1.6 TDI	2011–2015	66 kW
Audi A1	8X1, 8XK	1.4 TFSI	2014–2018	92 kW
Audi A1	8X1, 8XK	1.0 TFSI	2015–2018	70 kW
Audi A1 Sportback	8XA, 8XF	1.4 TFSI	2011–2015	90 kW
Audi A1 Sportback	8XA, 8XF	1.6 TDI	2011–2015	66 kW
Audi A1 Sportback	8XA, 8XF	1.2 TFSI	2012–2015	63 kW
Audi A1 Sportback	8XA, 8XF	1.4 30 TFSI, 1.4 TFSI	2014–2018	92 kW
Audi A1 Sportback	8XA, 8XF	1.0 TFSI	2015–2018	70 kW
Audi A1 Sportback	GBA	30 TFSI	2018–now	85 kW
Audi A1 Sportback	GBA	35 TFSI	2018–now	110 kW
Audi A1 Sportback	GBA	40 TFSI	2018–now	147 kW
Audi A3	8L1	1.6	1996–2003	74 kW
Audi A3	8L1	1.8, 1.8 20V	1996–2003	92 kW
Audi A3	8L1	1.8 T, 1.8 Turbo	1996–2003	110 kW
Audi A3	8L1	1.6	2000–2003	75 kW
Audi TT	8N3	1.8 T	1998–2006	132 kW
Audi TT	8N3	1.8 T	2002–2006	110 kW
Audi TT	8N3	1.8 T	2005–2006	120 kW
Audi TT Roadster	8N9	1.8 T	1999–2006	132 kW
Audi TT Roadster	8N9	1.8 T	2005–2006	140 kW
VW Beetle	9C1, 1C1	2.0	1998–2010	85 kW
VW Beetle	9C1, 1C1	1.8 T	1999–2010	110 kW
VW Beetle	9C1, 1C1	1.6	2000–2010	75 kW
VW Beetle	9C1, 1C1	1.9 TDI	2005–2010	77 kW
VW Beetle Convertible	1Y7	2.0	2002–2010	85 kW
VW Beetle Convertible	1Y7	1.6	2003–2010	75 kW
VW Bora I	1J2	1.6	1998–2005	74 kW
VW Bora I	1J2	2.0	1998–2013	85 kW
VW Bora I	1J2	2.3 V5	1998–2000	110 kW
VW Bora I	1J2	1.9 TDI	2000–2005	110 kW
VW Golf IV	1J1	1.6	1997–2004	74 kW
VW Golf IV	1J1	1.8	1997–2005	92 kW
VW Golf IV	1J1	1.8 T	1997–2005	110 kW
VW Golf IV	1J1	1.9 TDI	1997–2004	81 kW
VW Golf IV	1J1	2.0	1998–2004	85 kW
VW Golf IV	1J1	1.6	2000–2005	75 kW
VW Golf IV	1J1	1.9 TDI	2000–2005	74 kW
VW Golf IV Estate	1J5	2.0	1999–2006	85 kW
VW Polo	9N_, 9A_	1.4 16V	2001–2008	55 kW
VW Polo	9N_, 9A_	1.4 16V	2001–2008	74 kW
VW Polo	9N_, 9A_	1.9 TDI	2001–2009	74 kW
VW Polo	9N_, 9A_	1.4 TDI	2005–2009	59 kW
VW Polo	9N_, 9A_	1.8 GTI	2005–2009	110 kW
VW Polo	9N_, 9A_	1.4 16V	2006–2009	59 kW
VW Polo	9N_, 9A_	1.6 16V	2006–2009	77 kW
VW Polo V	6R1, 6C1	1.4 (6R1)	2009–2014	63 kW
VW Polo V	6R1, 6C1	1.6 TDI	2009–now	66 kW
VW Polo V	6R1, 6C1	1.2 GT TSI, 1.2 TSI	2009–now	77 kW
VW Polo V	6R1, 6C1	1.2 CROSS POLO TSI, 1.2 TSI	2014–now	81 kW
VW Polo V	6R1, 6C1	1.2 TSI 16V	2014–2017	66 kW
VW Polo VI	AW1, BZ1, AE1	1.0 TSI	2017–now	70 kW
VW Polo VI	AW1, BZ1, AE1	1.0 TSI	2017–now	85 kW
VW T-Cross	C11	1.0 TSi	2018–now	85 kW
No vehicles match your search.

Product overview

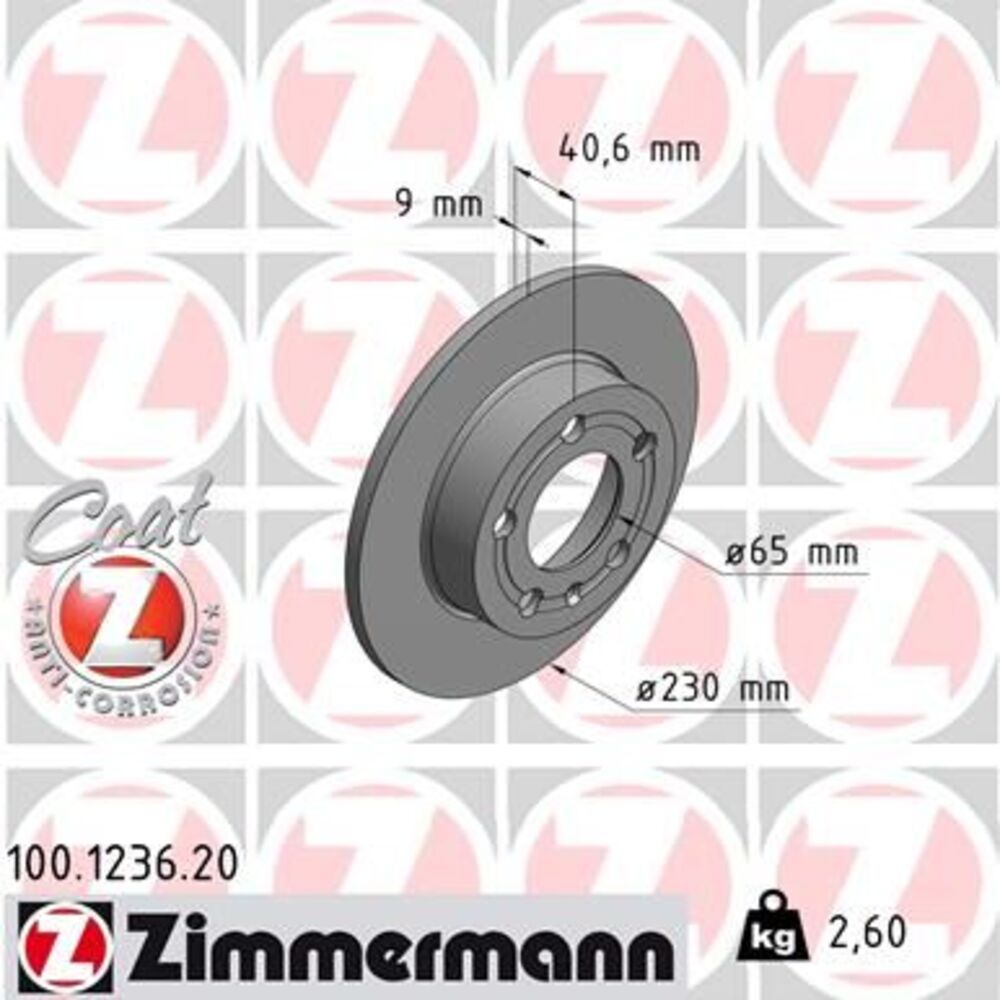

Zimmermann 100.1236.20 is a pair of solid brake discs (rotors). Each disc is 230 mm in diameter and 9 mm thick when new, with a 41 mm hat height. The minimum (discard) thickness is 7 mm. Each disc has 5 stud holes on a 100 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Skoda OE 5QD 615 601 A and 10 other OE numbers. Confirmed to fit 56 Australian-market variants; the full list is in the fitment table on this page.
