Zimmermann 310mm Brake Disc Set (2 pcs) 600.3215.20

Name: Zimmermann 310mm Brake Disc Set (2 pcs) 600.3215.20
Brand: Zimmermann
SKU: ZIM-00183
Price: 358.00 AUD
Availability: InStock

Part No. 600.3215.20

Low stock 2 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 25 variants listed for this part.

$358.00 incl. GST

Front axle 310 x 25 mm Fits 25 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

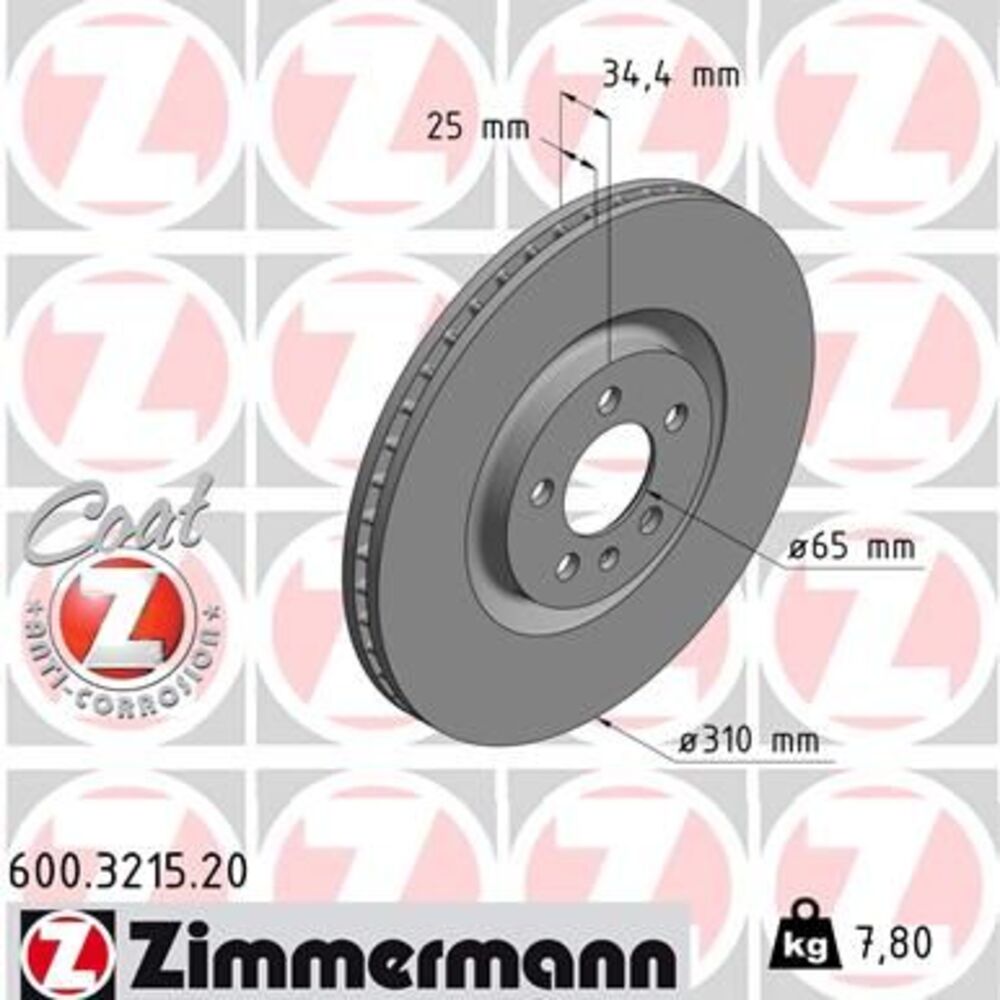

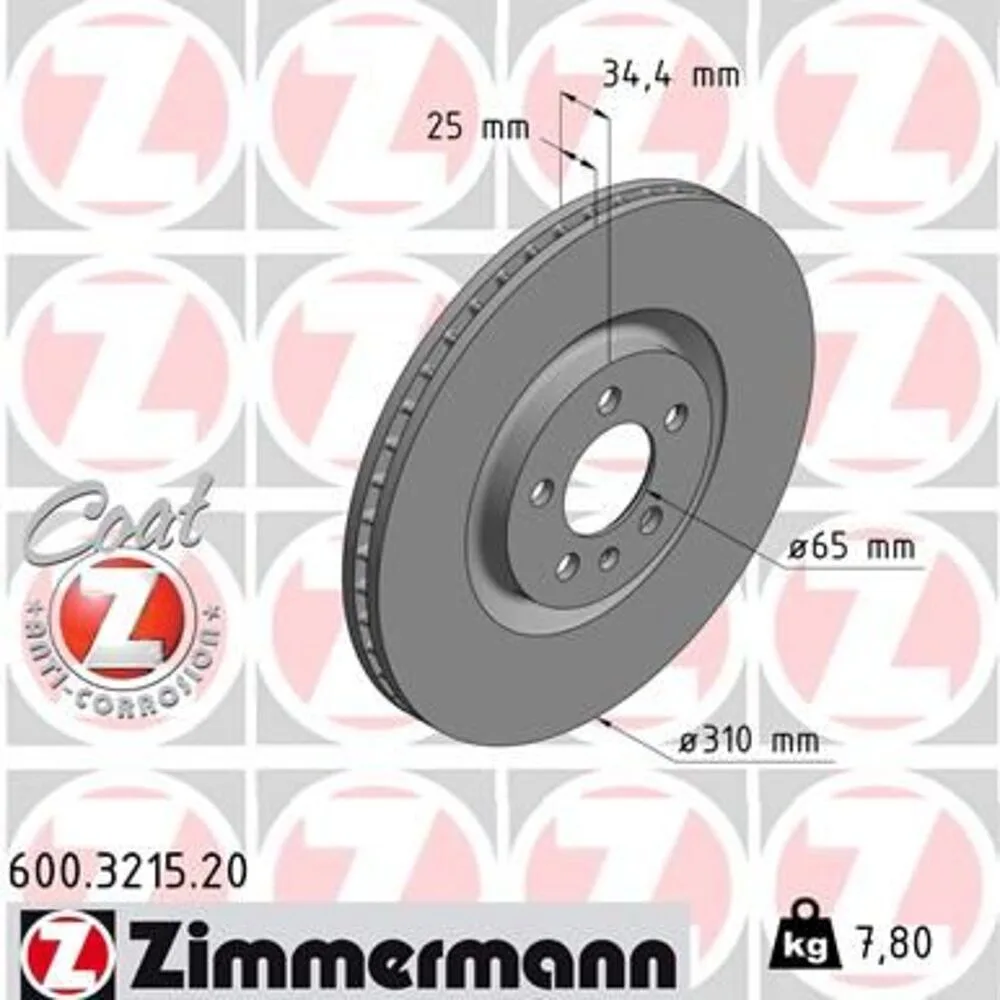

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter310 mm

Thickness when new25 mm

Height34 mm

Stud holes5

Stud circle (PCD)100 mm

Centre bore65 mm

ApprovalECE R90 approved

Minimum (discard) thickness22 mm

Part weight7.8 kg

Hole pattern5/5

OE & OEM cross-reference

Supplier part number

600.3215.20

Fits OE / OEM numbers

6R0 615 301 B 6R0 615 301 E

Vehicle fitment

25 variants

Make & model	Chassis	Variant	Years	Power
Audi A1	8X1, 8XK	1.2 TFSI	2010–2015	63 kW
Audi A1	8X1, 8XK	1.4 TFSI	2010–2015	90 kW
Audi A1	8X1, 8XK	1.4 TFSI	2011–2015	136 kW
Audi A1	8X1, 8XK	1.6 TDI	2011–2015	66 kW
Audi A1	8X1, 8XK	S1 quattro	2014–2018	170 kW
Audi A1	8X1, 8XK	1.4 TFSI	2014–2018	92 kW
Audi A1	8X1, 8XK	1.8 TFSI	2015–2018	141 kW
Audi A1	8X1, 8XK	1.0 TFSI	2015–2018	70 kW
Audi A1 Sportback	8XA, 8XF	1.4 TFSI	2011–2015	90 kW
Audi A1 Sportback	8XA, 8XF	1.4 TFSI, 1.4 TFSI Ambition	2011–2015	136 kW
Audi A1 Sportback	8XA, 8XF	1.6 TDI	2011–2015	66 kW
Audi A1 Sportback	8XA, 8XF	1.2 TFSI	2012–2015	63 kW
Audi A1 Sportback	8XA, 8XF	S1 quattro	2014–2018	170 kW
Audi A1 Sportback	8XA, 8XF	1.4 30 TFSI, 1.4 TFSI	2014–2018	92 kW
Audi A1 Sportback	8XA, 8XF	1.8 TFSI, 1.8 TFSI Ambition	2015–2018	141 kW
Audi A1 Sportback	8XA, 8XF	1.0 TFSI	2015–2018	70 kW
VW Polo V	6R1, 6C1	1.4 (6R1)	2009–2014	63 kW
VW Polo V	6R1, 6C1	1.6 TDI	2009–now	66 kW
VW Polo V	6R1, 6C1	1.2 GT TSI, 1.2 TSI	2009–now	77 kW
VW Polo V	6R1, 6C1	1.4 GTI	2010–now	132 kW
VW Polo V	6R1, 6C1	1.2 CROSS POLO TSI, 1.2 TSI	2014–now	81 kW
VW Polo V	6R1, 6C1	1.2 TSI 16V	2014–2017	66 kW
VW Polo V	6R1, 6C1	1.8 GTI	2014–now	141 kW
VW Polo VI	AW1, BZ1, AE1	1.0 TSI	2017–now	70 kW
VW Polo VI	AW1, BZ1, AE1	1.0 TSI	2017–now	85 kW
No vehicles match your search.

Product overview

Zimmermann 600.3215.20 is a pair of internally vented brake discs (rotors). Each disc is 310 mm in diameter and 25 mm thick when new, with a 34 mm hat height. The minimum (discard) thickness is 22 mm. Each disc has 5 stud holes on a 100 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to VAG OE 6R0 615 301 B and 1 other OE number. Confirmed to fit 25 Australian-market variants; the full list is in the fitment table on this page.
