Zimmermann 288mm Brake Disc Set (2 pcs) 600.3221.20

Name: Zimmermann 288mm Brake Disc Set (2 pcs) 600.3221.20
Brand: Zimmermann
SKU: ZIM-00184
Price: 292.00 AUD
Availability: InStock

Part No. 600.3221.20

Low stock 18 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 145 variants listed for this part.

$292.00 incl. GST

Front axle 288 x 25 mm Fits 145 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

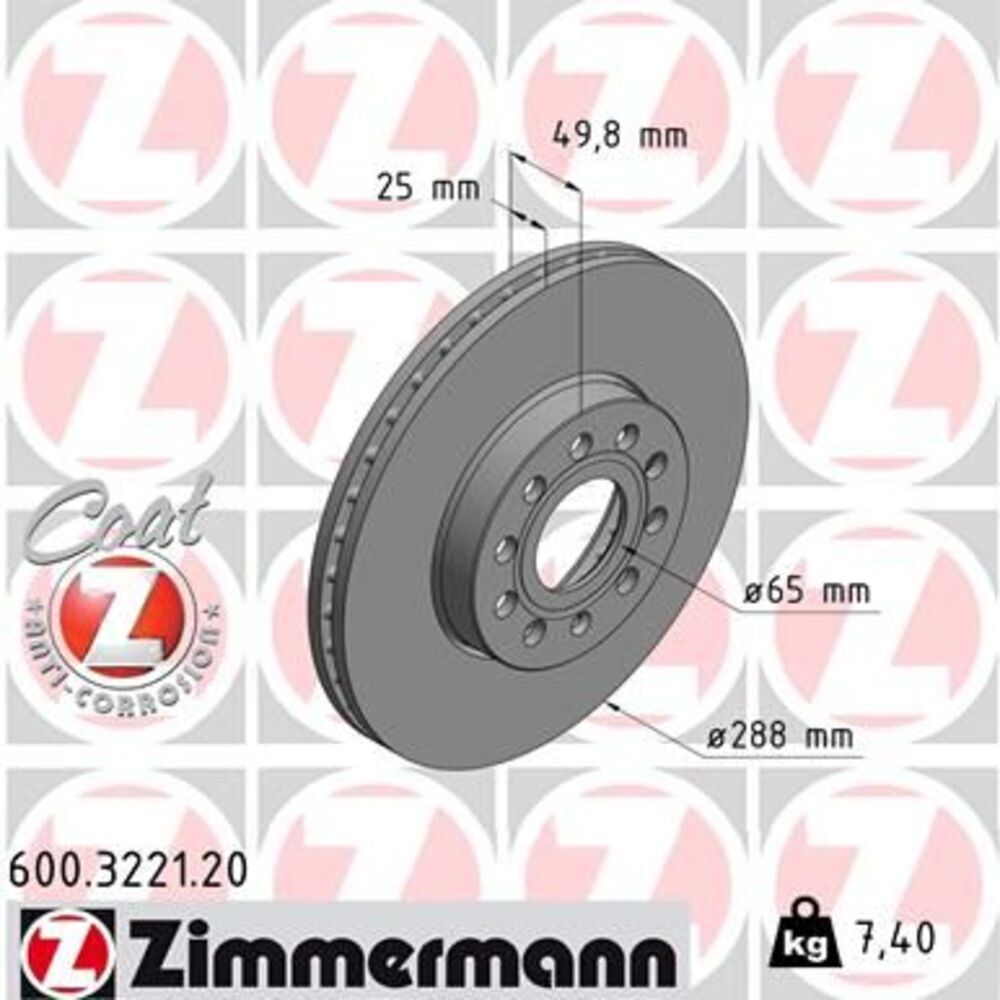

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter288 mm

Thickness when new25 mm

Height50 mm

Stud holes5

Stud circle (PCD)112 mm

Centre bore65 mm

ApprovalECE R90 approved

Minimum (discard) thickness22 mm

Part weight7.35 kg

Hole pattern10/5

OE & OEM cross-reference

Supplier part number

600.3221.20

Fits OE / OEM numbers

L1KD 615 301 1KD 615 301 1KD 615 301 B 5Q0 615 301 H 5C0 615 301 D 1K0 615 301 K 1K0 615 301 T 5C0 615 301 A JZW 615 301 J L16D 615 301 A L1KD 615 301 1KD 615 301 L1KD 615 301 1KD 615 301 L16D 615 301 A 1KD 615 301 B 1K0 615 301 T 1KD 615 301

Vehicle fitment

145 variants

Make & model	Chassis	Variant	Years	Power
Audi A3	8P1	1.6	2003–2012	75 kW
Audi A3	8P1	1.9 TDI	2003–2010	77 kW
Audi A3	8P1	2.0 FSI	2003–2008	110 kW
Audi A3	8P1	2.0 TDI 16V	2003–2012	103 kW
Audi A3	8P1	2.0 TFSI	2004–2012	147 kW
Audi A3	8P1	2.0 TFSI quattro	2004–2012	147 kW
Audi A3	8P1	2.0 TDI	2005–2008	103 kW
Audi A3	8P1	2.0 TDI	2006–2012	125 kW
Audi A3	8P1	1.8 TFSI	2006–2012	118 kW
Audi A3	8P1	1.4 TFSI	2007–2012	92 kW
Audi A3	8P1	1.6 TDI	2009–2012	77 kW
Audi A3	8V1, 8VK	1.4 TFSI	2012–2014	90 kW
Audi A3	8V1, 8VK	1.8 TFSI	2012–2016	132 kW
Audi A3	8V1, 8VK	2.0 TDI	2012–2017	110 kW
Audi A3	8V1, 8VK	1.8 TFSI quattro	2012–2016	132 kW
Audi A3	8V1, 8VK	1.4 TFSI	2013–2016	103 kW
Audi A3	8V1, 8VK	1.6 TDI	2013–2017	81 kW
Audi A3	8V1, 8VK	1.4 TFSI	2014–2016	92 kW
Audi A3	8V1, 8VK	1.4 TSI	2014–2017	110 kW
Audi A3	8V1, 8VK	2.0 TFSI	2016–2017	140 kW
Audi A3 Sedan	8VS, 8VM	1.4 TFSI	2013–now	103 kW
Audi A3 Sedan	8VS, 8VM	1.8 TFSI	2013–now	132 kW
Audi A3 Sedan	8VS, 8VM	2.0 TDI	2013–2020	110 kW
Audi A3 Sedan	8VS, 8VM	1.8 TFSI	2013–2020	125 kW
Audi A3 Sedan	8VS, 8VM	1.8 TFSI quattro	2013–now	132 kW
Audi A3 Sedan	8VS, 8VM	1.4 TFSI Ambiente Attraction, 1.4 TSI	2014–2020	110 kW
Audi A3 Sedan	8VS, 8VM	2.0 TFSI	2016–2020	140 kW
Audi A3 Sedan	8VS, 8VM	2.0 TFSI quattro	2016–2020	140 kW
Audi A3 Convertible	8P7	1.8 TFSI	2008–2013	118 kW
Audi A3 Convertible	8P7	2.0 TFSI	2008–2013	147 kW
Audi A3 Convertible	8P7	1.6	2008–2010	75 kW
Audi A3 Convertible	8V7, 8VE	1.4 TFSI	2013–now	103 kW
Audi A3 Convertible	8V7, 8VE	1.8 40 TFSI, 1.8 TFSI	2013–2016	132 kW
Audi A3 Convertible	8V7, 8VE	2.0 TDI	2013–2020	110 kW
Audi A3 Convertible	8V7, 8VE	1.8 TFSI quattro	2014–now	132 kW
Audi A3 Convertible	8V7, 8VE	1.4 TSI	2014–2020	110 kW
Audi A3 Convertible	8V7, 8VE	2.0 40 TFSI, 2.0 TFSI	2016–2020	140 kW
Audi A3 Convertible	8V7, 8VE	2.0 TFSI quattro	2016–2020	140 kW
Audi A3 Convertible	8V7, 8VE	40 TFSI	2018–2020	140 kW
Audi A3 Convertible	8V7, 8VE	40 TFSI quattro	2018–2020	140 kW
Audi A3 Sportback	8PA	1.6	2004–2013	75 kW
Audi A3 Sportback	8PA	1.9 TDI	2004–2010	77 kW
Audi A3 Sportback	8PA	2.0 FSI	2004–2008	110 kW
Audi A3 Sportback	8PA	2.0 TDI 16V	2004–2013	103 kW
Audi A3 Sportback	8PA	2.0 TDI	2005–2008	103 kW
Audi A3 Sportback	8PA	2.0 TDI	2006–2013	125 kW
Audi A3 Sportback	8PA	1.8 TFSI	2006–2013	118 kW
Audi A3 Sportback	8PA	1.4 TFSI	2007–2013	92 kW
Audi A3 Sportback	8PA	1.6 TDI	2009–2013	77 kW
Audi A3 Sportback	8VA, 8VF	1.4 TFSI, 1.4 TFSI Attraction	2012–2020	90 kW
Audi A3 Sportback	8VA, 8VF	1.8 40 TFSI, 1.8 TFSI	2012–now	132 kW
Audi A3 Sportback	8VA, 8VF	2.0 TDI	2012–2020	110 kW
Audi A3 Sportback	8VA, 8VF	1.6 TDI	2012–now	77 kW
Audi A3 Sportback	8VA, 8VF	1.4 TFSI	2013–now	103 kW
Audi A3 Sportback	8VA, 8VF	1.8 TFSI quattro	2013–now	132 kW
Audi A3 Sportback	8VA, 8VF	1.6 TDI	2013–2020	81 kW
Audi A3 Sportback	8VA, 8VF	1.4 TFSI	2014–2016	92 kW
Audi A3 Sportback	8VA, 8VF	1.4 TSI	2014–2020	110 kW
Audi A3 Sportback	8VA, 8VF	2.0 TFSI	2016–2020	140 kW
Audi A3 Sportback	8VA, 8VF	2.0 TFSI quattro	2016–2020	140 kW
Audi A3 Sportback	8VA, 8VF	1.0 TFSI	2016–2020	85 kW
Audi A3 Sportback	8VA, 8VF	1.6 TDI	2017–2020	85 kW
Audi Q2	GAB, GAG	1.4 TFSI	2016–now	110 kW
Audi Q2	GAB, GAG	2.0 TDI quattro	2016–now	110 kW
Audi Q2	GAB, GAG	2.0 TFSI quattro	2017–now	140 kW
VW Beetle	5C1, 5C2	1.4 TSI	2011–2016	118 kW
VW Bora IV	162, 163, AV3, AV2	1.6 TDI	2010–2015	77 kW
VW Bora IV	162, 163, AV3, AV2	2.0 TFSI	2010–now	147 kW
VW Bora IV	162, 163, AV3, AV2	2.0 TDI	2011–now	103 kW
VW Bora IV	162, 163, AV3, AV2	1.4 TSI	2011–now	118 kW
VW Bora IV	162, 163, AV3, AV2	2.0 TSI	2012–2017	155 kW
VW Bora V	1K2	1.6	2004–2010	75 kW
VW Bora V	1K2	1.9 TDI	2005–2010	77 kW
VW Bora V	1K2	2.0 FSI	2005–2010	110 kW
VW Bora V	1K2	2.0 TDI 16V	2005–2010	103 kW
VW Bora V	1K2	1.6 FSI	2005–2010	85 kW
VW Bora V	1K2	2.0 TDI	2005–2010	103 kW
VW Bora V	1K2	2.0 TFSI	2005–2010	147 kW
VW Bora V	1K2	2.0 TDI	2006–2010	125 kW
VW Bora V	1K2	1.4 TSI	2008–2010	118 kW
VW Bora V	1K2	1.6 TDI	2009–2010	77 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	2.0 SDI	2004–2010	51 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.6	2004–2015	75 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.9 TDI	2004–2010	77 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.6 TDI	2010–2015	75 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.2 TSI	2010–2015	63 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	1.2 TSI	2010–2015	77 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	2.0 TDI 16V	2010–2015	103 kW
VW Caddy III Box Body/MPV	2KA, 2KH, 2CA, 2CH	2.0 TDI 16V 4motion	2010–2015	103 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	1.6	2004–2015	75 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	1.9 TDI	2004–2010	77 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	1.6 TDI	2010–2015	75 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	2.0 TDI 4motion	2010–2015	81 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	2.0 TDI 16V	2010–2015	103 kW
VW Caddy III MPV	2KB, 2KJ, 2CB, 2CJ	2.0 TDI 16V 4motion	2010–2015	103 kW
VW Caddy IV Box Body/MPV	SAA, SAH	1.4 TSI	2015–2020	92 kW
VW Caddy IV Box Body/MPV	SAA, SAH	2.0 TDI	2015–2020	75 kW
VW Caddy IV Box Body/MPV	SAA, SAH	1.2 TSI	2015–2020	62 kW
VW Eos	1F7, 1F8	2.0 TFSI	2006–2015	147 kW
VW Eos	1F7, 1F8	2.0 TDI	2006–2008	103 kW
VW Eos	1F7, 1F8	2.0 TDI 16V	2008–2015	103 kW
VW Eos	1F7, 1F8	2.0 TSI	2009–2015	155 kW
VW Golf Alltrack VII Estate	BA5, BV5	1.8 TSI 4motion	2014–2020	132 kW
VW Golf V	1K1	1.6 FSI	2003–2008	85 kW
VW Golf V	1K1	1.9 TDI	2003–2008	77 kW
VW Golf V	1K1	2.0 TDI 16V	2003–2008	103 kW
VW Golf V	1K1	1.6	2004–2008	75 kW
VW Golf V	1K1	2.0 FSI	2004–2008	110 kW
VW Golf V	1K1	2.0 GTI	2004–2009	147 kW
VW Golf V	1K1	2.0 TDI	2004–2008	103 kW
VW Golf V	1K1	1.4 GT Sport TSI, 1.4 TSI	2005–2008	125 kW
VW Golf V	1K1	2.0 GT Sport TDI, 2.0 TDI	2005–2008	125 kW
VW Golf V	1K1	3.2 R32 4motion	2005–2008	184 kW
VW Golf V	1K1	2.0 GTI	2006–2008	169 kW
VW Golf V	1K1	1.4 TSI	2007–2008	90 kW
VW Golf VI	5K1	1.4 TSI	2008–2012	90 kW
VW Golf VI	5K1	1.4 TSI	2008–2012	118 kW
VW Golf VI	5K1	2.0 TDI	2008–2013	103 kW
VW Golf VI	5K1	1.2 TSI	2008–2012	77 kW
VW Golf VI	5K1	1.6 TDI	2009–2012	77 kW
VW Golf VI	5K1	2.0 GTD, 2.0 TDI	2009–2012	125 kW
VW Golf VI	5K1	2.0 GTi	2009–2012	155 kW
VW Golf VI	5K1	2.0 GTi	2011–2012	173 kW
VW Golf VI Convertible	517	1.4 TSI	2011–2016	118 kW
VW Golf VI Estate	AJ5	1.4 TSI	2009–2013	90 kW
VW Golf VI Estate	AJ5	1.4 TSI	2009–2013	118 kW
VW Golf VI Estate	AJ5	1.6 TDI	2009–2013	77 kW
VW Golf VI Estate	AJ5	2.0 TDI	2009–2013	103 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI, 1.4 TSI, Highline	2012–2017	103 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 TDI	2012–2020	110 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI	2012–2017	90 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 GTI	2013–2020	169 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 GTI, 2.0 TSI GTI	2013–2020	162 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 R 4motion, 2.0 TSI R 4motion	2013–2017	206 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI	2014–2020	92 kW
VW Golf VII	5G1, BQ1, BE1, BE2	1.4 TSI	2014–2021	110 kW
VW Golf VII	5G1, BQ1, BE1, BE2	2.0 R 4motion	2016–2020	213 kW
VW Golf VII Estate	BA5, BV5	2.0 TDI	2013–now	110 kW
VW Golf VII Estate	BA5, BV5	1.4 TSI	2013–2017	90 kW
VW Golf VII Estate	BA5, BV5	1.4 TSI	2014–2020	92 kW
VW Golf VII Estate	BA5, BV5	1.4 TSI	2014–now	110 kW
VW Golf VII Estate	BA5, BV5	2.0 R 4motion	2015–2017	206 kW
VW Golf VII Estate	BA5, BV5	1.8 TSI 4motion	2016–2020	132 kW
VW Scirocco III	137, 138	2.0 R	2009–2017	188 kW
VW Touran	1T1, 1T2	2.0 FSI	2003–2007	110 kW
No vehicles match your search.

Product overview

Zimmermann 600.3221.20 is a pair of internally vented brake discs (rotors). Each disc is 288 mm in diameter and 25 mm thick when new, with a 50 mm hat height. The minimum (discard) thickness is 22 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Audi OE L1KD 615 301 and 9 other OE numbers. Confirmed to fit 145 Australian-market variants; the full list is in the fitment table on this page.
