Zimmermann 300mm Brake Disc Set (2 pcs) 150.3497.20
Part No. 150.3497.20
Check this part fits your car
Select your vehicle and we will confirm it against the 20 variants listed for this part.
$366.00
incl. GST
Front axle
300 x 22 mm
Fits 20 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter300 mm
Thickness when new22 mm
Height73 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalECE R90 approved
Minimum (discard) thickness20.4 mm
Part weight7.4 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.3497.20
Fits OE / OEM numbers
3411 6 792 217
Vehicle fitment
20 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 1 Series | F20 | 118 i, 120 i | 2011–2015 | 125 kW |
| BMW 1 Series | F20 | 118 i | 2015–2015 | 100 kW |
| BMW 1 Series | F20 | 120 i | 2015–2016 | 130 kW |
| BMW 1 Series | F20 | 120 i | 2016–2019 | 135 kW |
| BMW 1 Series | F21 | 118 d | 2011–now | 105 kW |
| BMW 1 Series | F21 | 118 i | 2012–now | 125 kW |
| BMW 3 Series | F30, F80 | 318 d | 2012–2015 | 105 kW |
| BMW 3 Series | F30, F80 | 320 i | 2012–2018 | 135 kW |
| BMW 3 Series | F30, F80 | 316 i | 2012–2016 | 100 kW |
| BMW 3 Series | F30, F80 | 320 i | 2015–2018 | 135 kW |
Product overview

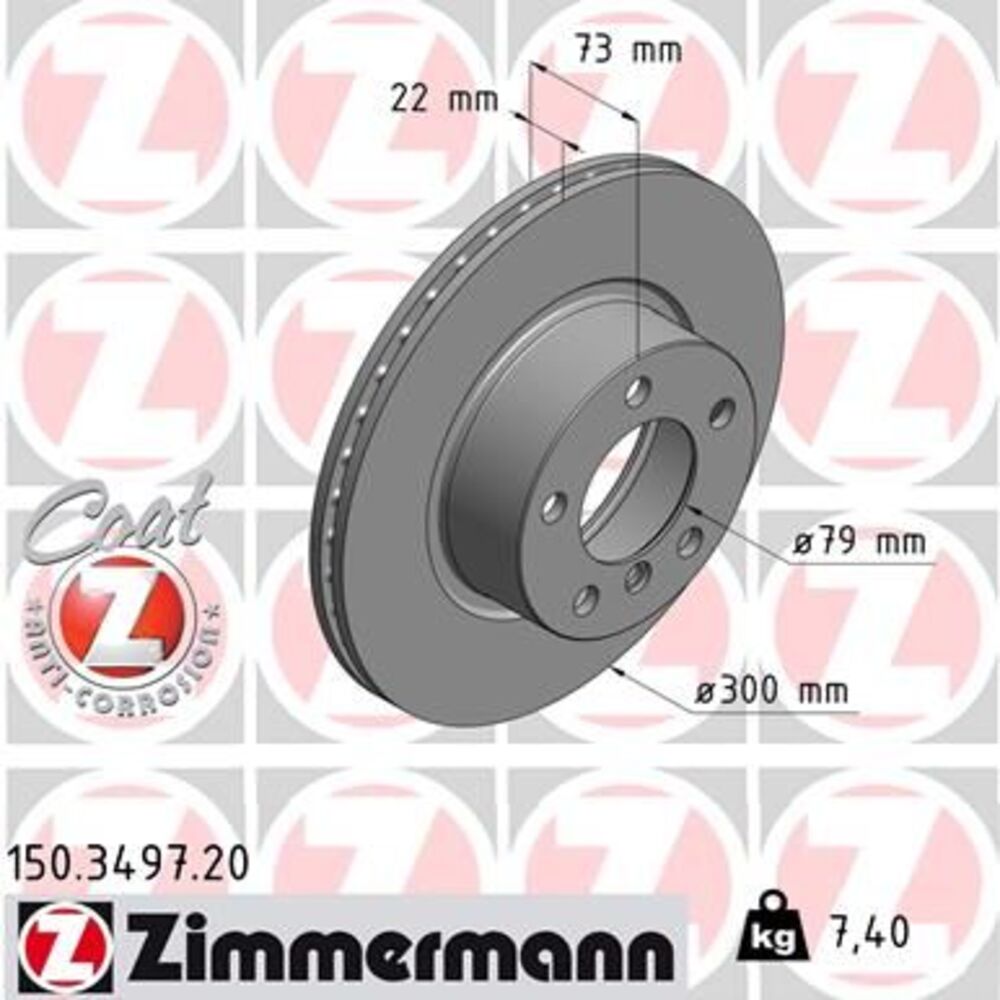

Zimmermann 150.3497.20 is a pair of internally vented brake discs (rotors). Each disc is 300 mm in diameter and 22 mm thick when new, with a 73 mm hat height. The minimum (discard) thickness is 20.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3411 6 792 217. Confirmed to fit 20 Australian-market variants; the full list is in the fitment table on this page.
