Zimmermann 340mm Brake Disc Set (2 pcs) 150.2903.20
Part No. 150.2903.20
Check this part fits your car
Select your vehicle and we will confirm it against the 70 variants listed for this part.
$568.00
incl. GST
Front axle
340 x 30 mm
Fits 70 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter340 mm
Thickness when new30 mm
Height73 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalKBA 60787
Minimum (discard) thickness28.4 mm
Part weight10.9 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.2903.20
Fits OE / OEM numbers
3411 6 792 223
3411 6 792 223
Vehicle fitment
70 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 1 Series | F20 | 118 d | 2011–2015 | 105 kW |
| BMW 1 Series | F20 | 118 i, 120 i | 2011–2015 | 125 kW |
| BMW 1 Series | F20 | 125 i | 2012–2017 | 160 kW |
| BMW 1 Series | F20 | 135 i, M 135 i, M 135 i Rear-Wheel Drive | 2012–2015 | 235 kW |
| BMW 1 Series | F20 | 118 d | 2015–2019 | 110 kW |
| BMW 1 Series | F20 | 118 i | 2015–2015 | 100 kW |
| BMW 1 Series | F20 | 120 i | 2015–2016 | 130 kW |
| BMW 1 Series | F20 | M 135 i | 2015–2016 | 240 kW |
| BMW 1 Series | F20 | 118 i | 2015–2019 | 100 kW |
| BMW 1 Series | F20 | 120 i | 2016–2019 | 135 kW |
Product overview

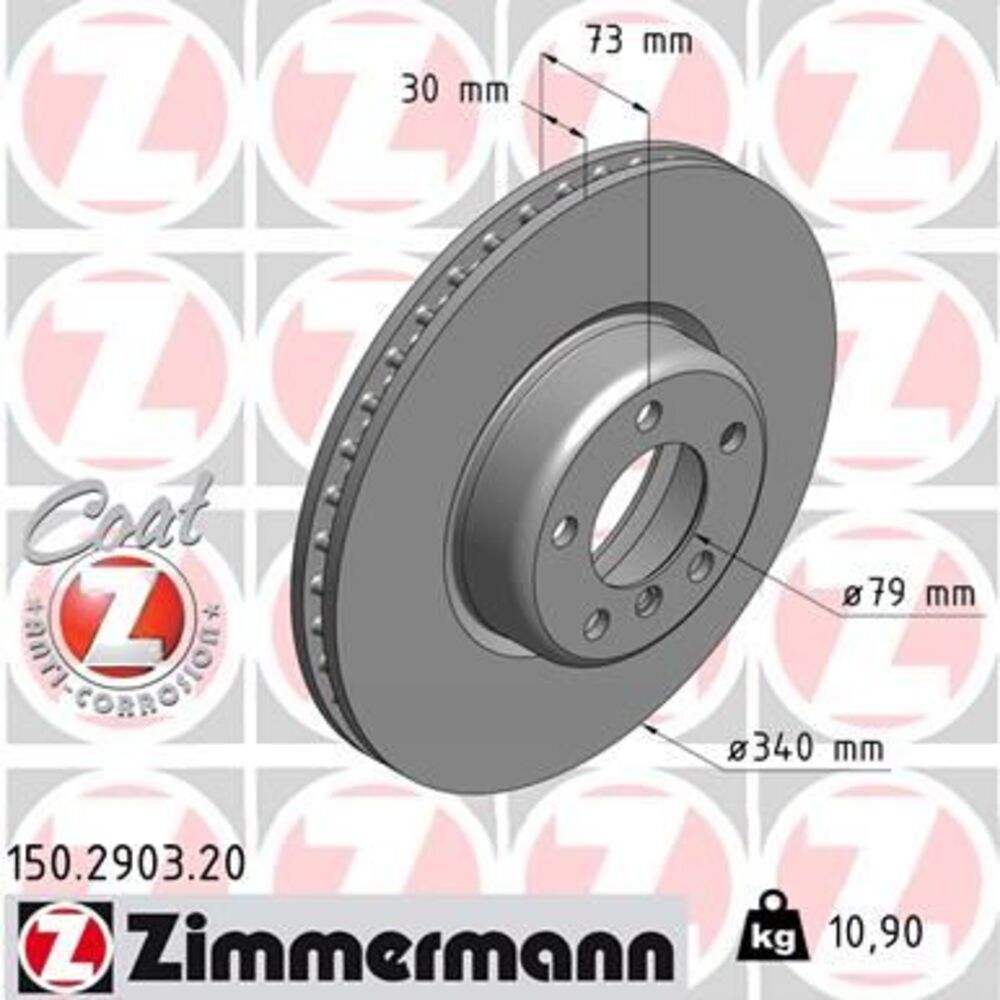

Zimmermann 150.2903.20 is a pair of internally vented brake discs (rotors). Each disc is 340 mm in diameter and 30 mm thick when new, with a 73 mm hat height. The minimum (discard) thickness is 28.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They carry KBA type approval, marked KBA 60787. Cross-referenced to BMW OE 3411 6 792 223. Confirmed to fit 70 Australian-market variants; the full list is in the fitment table on this page.
