Zimmermann 345mm Brake Disc Set (2 pcs) 150.2921.20
Part No. 150.2921.20
Check this part fits your car
Select your vehicle and we will confirm it against the 43 variants listed for this part.
$564.00
incl. GST
Rear axle
345 x 24 mm
Fits 43 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter345 mm
Thickness when new24 mm
Height66 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
Integrated handbrake drum diameter161 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight9.2 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.2921.20
Fits OE / OEM numbers
3420 6 797 605
3420 6 898 719
Vehicle fitment
43 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 1 Series | F20 | 116 i | 2011–2015 | 100 kW |
| BMW 1 Series | F20 | 118 d | 2011–2015 | 105 kW |
| BMW 1 Series | F20 | 118 i, 120 i | 2011–2015 | 125 kW |
| BMW 1 Series | F20 | 125 i | 2012–2017 | 160 kW |
| BMW 1 Series | F20 | 135 i, M 135 i, M 135 i Rear-Wheel Drive | 2012–2015 | 235 kW |
| BMW 1 Series | F20 | 118 d | 2015–2019 | 110 kW |
| BMW 1 Series | F20 | 118 i | 2015–2015 | 100 kW |
| BMW 1 Series | F20 | 120 i | 2015–2016 | 130 kW |
| BMW 1 Series | F20 | M 135 i | 2015–2016 | 240 kW |
| BMW 1 Series | F20 | 118 i | 2015–2019 | 100 kW |
Product overview

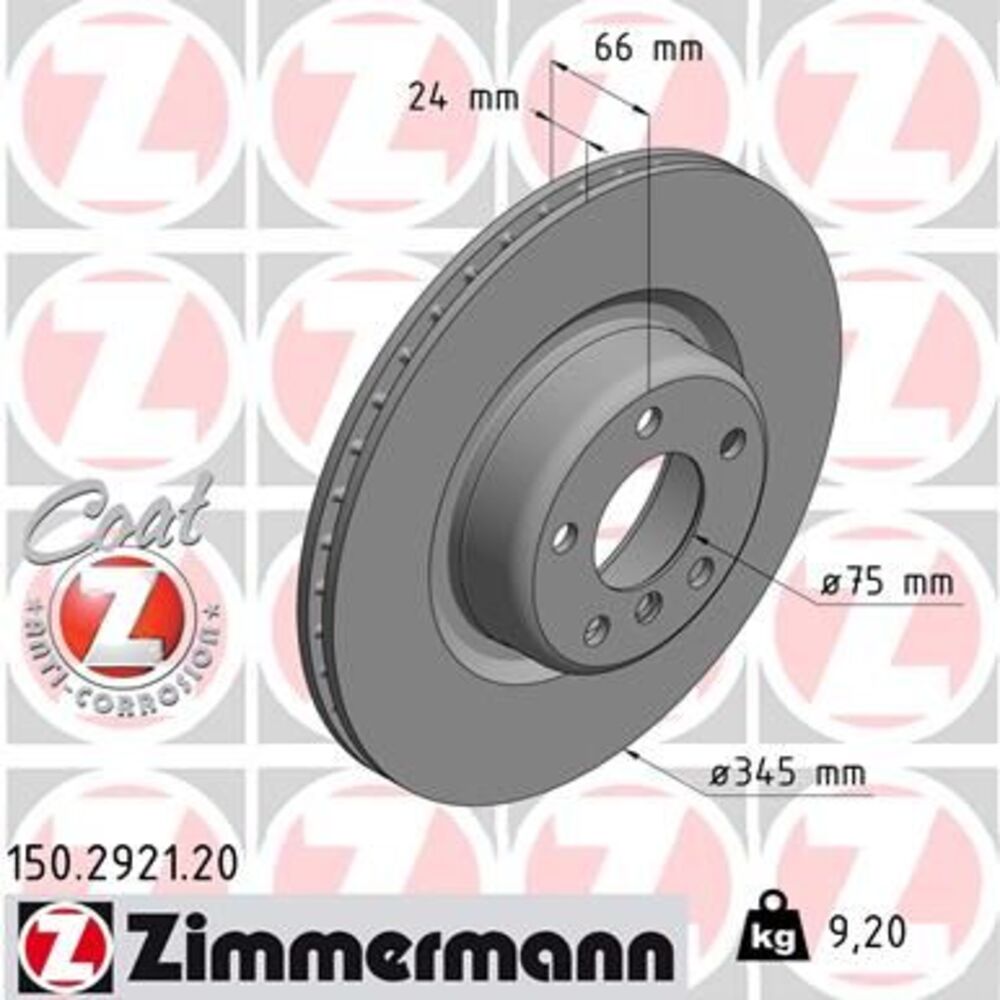

Zimmermann 150.2921.20 is a pair of internally vented brake discs (rotors). Each disc is 345 mm in diameter and 24 mm thick when new, with a 66 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. Each disc has an integrated 161 mm handbrake drum. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3420 6 797 605 and 1 other OE number. Confirmed to fit 43 Australian-market variants; the full list is in the fitment table on this page.
