Home/ Brakes/ Brake Pads/ Zimmermann Brake Pad Set 258.6117.02

Zimmermann

Zimmermann Brake Pad Set 258.6117.02

Name: Zimmermann Brake Pad Set 258.6117.02
Brand: Zimmermann
SKU: ZIM-00178
Price: 261.00 AUD
Availability: InStock

Part No. 258.6117.02

In stock 16 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 82 variants listed for this part.

$261.00 incl. GST

Front axle Akebono 17 mm Accepts a wear sensor Retaining spring Fits 82 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Caliper make (factory-fitted)Akebono

Width194 mm

Height74 mm

Thickness17 mm

Wear sensorAccepts a wear sensor

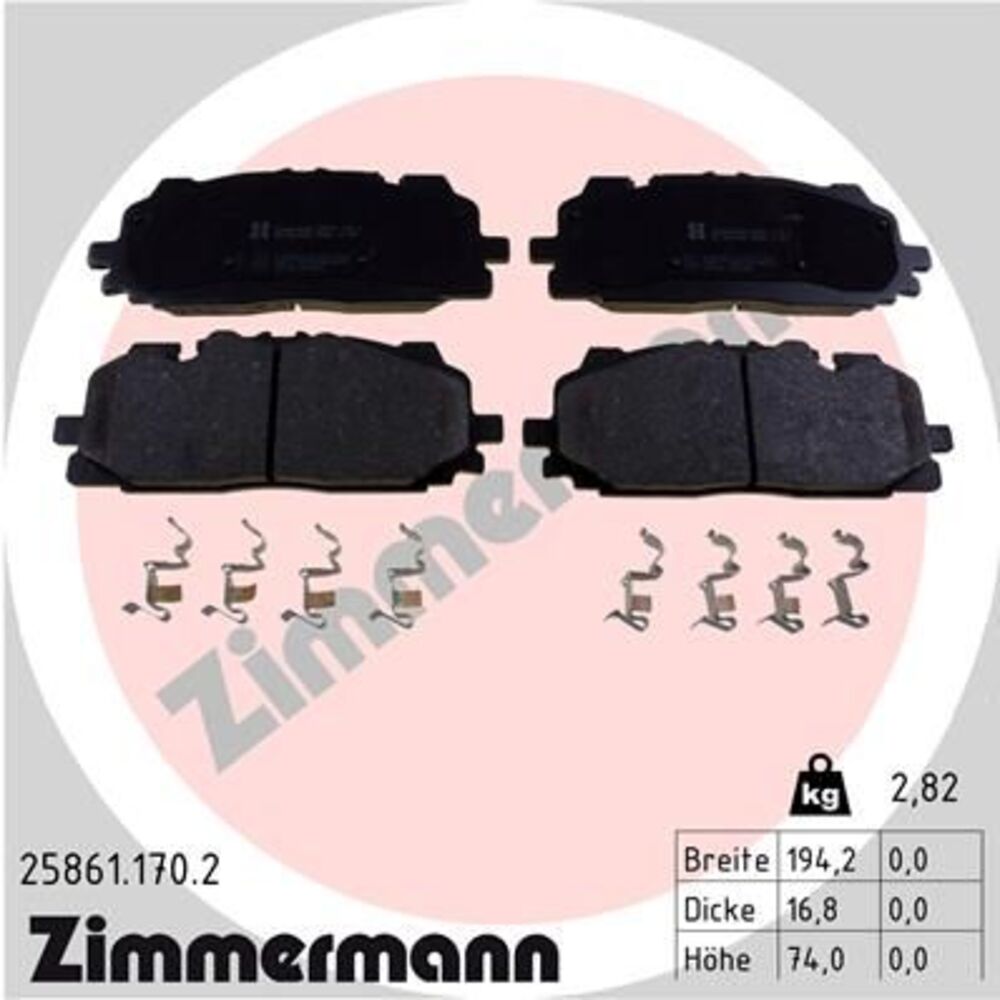

NotesThe photo shows what you receive, Retaining spring included

ApprovalECE R90 approved

OE & OEM cross-reference

Supplier part number

258.6117.02

Fits OE / OEM numbers

4K0 698 151 P 4KE 698 151 H 4KE 698 151 F 4K0 698 151 C 4K0 698 151 4M0 698 151 AA 4M0 698 151 AJ 4M0 698 151 AM 4M0 698 151 AP 4M0 698 151 H 4M0 698 151 T 8W0 698 151 N 8W0 698 151 R 4M0 698 151 BD 8W0 698 151 AN 83A 698 151 B

Vehicle fitment

82 variants

Make & model	Chassis	Variant	Years	Power
Audi A3 Sedan	8YS	RS3 quattro	2021–now	294 kW
Audi A3 Sportback	8YA	RS3 quattro	2021–now	294 kW
Audi A4 Allroad B9	8WH, 8WJ	2.0 TDI quattro	2016–now	140 kW
Audi A4 Allroad B9	8WH, 8WJ	2.0 TFSI quattro	2016–now	185 kW
Audi A4 B9	8W2, 8WC	2.0 TFSI quattro	2015–now	185 kW
Audi A4 B9	8W2, 8WC	2.0 TFSI, 2.0 TFSI Ambiente Attraction Launch Edition	2015–now	140 kW
Audi A4 B9	8W2, 8WC	1.4 TFSI	2015–2019	110 kW
Audi A4 B9	8W2, 8WC	2.0 TDI quattro	2015–2019	140 kW
Audi A4 B9	8W2, 8WC	S4 quattro	2016–now	260 kW
Audi A4 B9	8W2, 8WC	35 TFSI Mild Hybrid	2018–now	110 kW
Audi A4 B9 Avant	8W5, 8WD	2.0 TFSI quattro	2015–2019	185 kW
Audi A4 B9 Avant	8W5, 8WD	2.0 TFSI, 2.0 TFSI Ambiente	2015–now	140 kW
Audi A4 B9 Avant	8W5, 8WD	S4 quattro	2016–2019	260 kW
Audi A4 B9 Avant	8W5, 8WD	RS4 quattro	2017–now	331 kW
Audi A5	F53, F5P	2.0 45 TFSI quattro, 2.0 TFSI quattro	2016–now	185 kW
Audi A5	F53, F5P	S5 quattro	2016–now	260 kW
Audi A5	F53, F5P	2.0 40 TFSI, 2.0 TFSI	2016–now	140 kW
Audi A5	F53, F5P	2.0 TDI quattro	2016–now	140 kW
Audi A5	F53, F5P	RS5 quattro	2017–now	331 kW
Audi A5	F53, F5P	2.0 45 TFSI Mild Hybrid quattro, 2.0 TFSI Mild Hybrid quattro	2017–2020	185 kW
Audi A5	F53, F5P	40 TFSI Mild Hybrid	2017–now	140 kW
Audi A5 Sportback	8TA	2.0 TFSI	2009–2013	155 kW
Audi A5 Sportback	8TA	2.0 TFSI	2009–2014	132 kW
Audi A5 Sportback	8TA	2.0 TFSI quattro	2009–2017	155 kW
Audi A5 Sportback	8TA	3.0 TDI quattro	2009–2012	176 kW
Audi A5 Sportback	8TA	3.0 TFSI quattro, S5 quattro	2010–2017	245 kW
Audi A5 Sportback	8TA	1.8 TFSI	2011–2017	125 kW
Audi A5 Sportback	8TA	2.0 TDI	2011–2017	130 kW
Audi A5 Sportback	8TA	3.0 TDI quattro	2011–2017	180 kW
Audi A5 Sportback	8TA	2.0 TDI quattro	2011–2017	130 kW
Audi A5 Sportback	8TA	3.0 TFSI quattro	2011–2017	200 kW
Audi A5 Sportback	8TA	2.0 45 TFSI quattro, 2.0 TFSI Ambition S-Tronic quattro, 2.0 TFSI quattro	2013–2016	165 kW
Audi A5 Sportback	8TA	1.8 35 TFSI, 1.8 TFSI	2015–2017	130 kW
Audi A5 Sportback	8TA	2.0 45 TFSI quattro, 2.0 TFSI quattro	2015–2017	169 kW
Audi A5 Convertible	F57, F5E	2.0 45 TFSI quattro, 2.0 TFSI quattro	2016–now	185 kW
Audi A5 Convertible	F57, F5E	2.0 40 TFSI, 2.0 TFSI	2017–2019	140 kW
Audi A5 Convertible	F57, F5E	S5 quattro	2017–now	260 kW
Audi A5 Convertible	F57, F5E	2.0 45 TFSI Mild Hybrid quattro, 2.0 TFSI Mild Hybrid quattro	2017–now	185 kW
Audi A5 Convertible	F57, F5E	40 TFSI Mild Hybrid	2017–now	140 kW
Audi A5 Sportback	F5A, F5F	2.0 45 TFSI quattro, 2.0 TFSI quattro	2016–now	185 kW
Audi A5 Sportback	F5A, F5F	S5 quattro	2016–now	260 kW
Audi A5 Sportback	F5A, F5F	2.0 TDI quattro	2016–now	140 kW
Audi A5 Sportback	F5A, F5F	2.0 40 TFSI, 2.0 TFSI	2017–now	140 kW
Audi A5 Sportback	F5A, F5F	RS5 quattro	2018–now	331 kW
Audi A6 C8	4A2	55 TFSi Mild Hybrid quattro	2018–now	250 kW
Audi A6 C8	4A2	45 TFSI Mild Hybrid quattro	2018–now	180 kW
Audi A7 Sportback	4KA	55 TFSI Mild Hybrid quattro	2017–now	250 kW
Audi A7 Sportback	4KA	45 TFSI Mild hybrid quattro	2018–now	180 kW
Audi A8 D5	4N2, 4N8, 4NC, 4NL	50 TDI Mild Hybrid quattro	2017–now	210 kW
Audi A8 D5	4N2, 4N8, 4NC, 4NL	55 TFSI Mild Hybrid quattro	2017–now	250 kW
Audi E-Tron	GEN	55 quattro	2018–now	300 kW
Audi E-Tron	GEN	50 quattro	2019–now	230 kW
Audi E-Tron	GEN	S quattro	2020–now	370 kW
Audi E-Tron Sportback	GEA	50 quattro	2019–now	230 kW
Audi E-Tron Sportback	GEA	55 quattro	2019–now	300 kW
Audi E-Tron Sportback	GEA	S quattro	2020–now	370 kW
Audi Q3	F3B	2.5 RS quattro	2019–now	294 kW
Audi Q3 Sportback	F3N	2.5 RS quattro	2019–now	294 kW
Audi Q5	FYB, FYG	2.0 TDI quattro	2016–2018	140 kW
Audi Q5	FYB, FYG	2.0 TFSI quattro	2016–now	185 kW
Audi Q5	FYB, FYG	SQ5 TFSI quattro	2016–now	260 kW
Audi Q5	FYB, FYG	3.0 TDI quattro	2017–2020	210 kW
Audi Q5	FYB, FYG	40 TDI quattro	2018–now	140 kW
Audi Q5	FYB, FYG	45 TFSI Mild Hybrid quattro	2018–now	180 kW
Audi Q5	FYB, FYG	SQ5 TDI Mild Hybrid quattro	2019–now	255 kW
Audi Q5	FYB, FYG	50 TDI quattro	2019–2020	210 kW
Audi Q5	FYB, FYG	SQ5 TDI Mild Hybrid	2021–now	251 kW
Audi Q7	4MB, 4MG	3.0 TDI quattro	2015–2019	200 kW
Audi Q7	4MB, 4MG	3.0 TDI quattro	2015–2019	160 kW
Audi Q7	4MB, 4MG	3.0 TDI e-tron quattro	2015–2019	275 kW
Audi Q7	4MB, 4MG	SQ7 TDI quattro	2016–2019	320 kW
Audi Q7	4MB, 4MG	45 TDI Mild Hybrid quattro	2018–now	170 kW
Audi Q7	4MB, 4MG	50 TDI Mild Hybrid quattro	2018–now	210 kW
Audi Q7	4MB, 4MG	55 TFSI Mild Hybrid quattro	2019–now	250 kW
Audi Q8	4MN	55 TFSI Mild Hybrid quattro	2018–now	250 kW
Audi Q8	4MN	SQ8 TDI Mild Hybrid quattro	2018–now	320 kW
Audi Q8	4MN	45 TDI Mild Hybrid quattro	2018–now	170 kW
Audi Q8	4MN	50 TDI Mild Hybrid quattro	2018–now	210 kW
Audi Q8	4MN	SQ8 quattro	2020–now	373 kW
VW Touareg	CR7	3.0 TDI 4motion	2017–now	210 kW
VW Touareg	CR7	3.0 TDI 4motion	2018–now	170 kW
VW Touareg	CR7	4.0 V8 TDI 4motion	2019–now	310 kW
No vehicles match your search.

Product overview

Zimmermann 258.6117.02 is a brake pad set for vehicles fitted with Akebono calipers. The pads are 194 mm wide, 74 mm tall, and 17 mm thick. The pads are machined to take a wear sensor. In the box: retaining spring. It is ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to Audi OE 4K0 698 151 P and 15 other OE numbers. Confirmed to fit 82 Australian-market variants; the full list is in the fitment table on this page.
