Zimmermann 345mm Brake Disc Set (2 pcs) 150.2919.20
Part No. 150.2919.20
Check this part fits your car
Select your vehicle and we will confirm it against the 39 variants listed for this part.
$570.00
incl. GST
Rear axle
345 x 24 mm
Fits 39 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter345 mm
Thickness when new24 mm
Height66 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore75 mm
Integrated handbrake drum diameter185 mm
ApprovalECE R90 approved
Minimum (discard) thickness22.4 mm
Part weight9.5 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.2919.20
Fits OE / OEM numbers
3420 6 797 607
Vehicle fitment
39 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | F30, F80 | 320 i, 328 i | 2011–2018 | 180 kW |
| BMW 3 Series | F30, F80 | 335 i | 2011–2015 | 225 kW |
| BMW 3 Series | F30, F80 | ActiveHybrid | 2012–2015 | 250 kW |
| BMW 3 Series | F30, F80 | 330 i | 2015–2018 | 185 kW |
| BMW 3 Series | F30, F80 | 340 i | 2015–2018 | 240 kW |
| BMW 3 Series Gran Turismo | F34 | 320 d | 2013–2015 | 135 kW |
| BMW 3 Series Gran Turismo | F34 | 320 i, 320 i GT Sport | 2013–2016 | 135 kW |
| BMW 3 Series Gran Turismo | F34 | 328 i | 2013–2016 | 180 kW |
| BMW 3 Series Gran Turismo | F34 | 320 d | 2015–now | 140 kW |
| BMW 3 Series Gran Turismo | F34 | 330 i | 2016–now | 185 kW |
Product overview

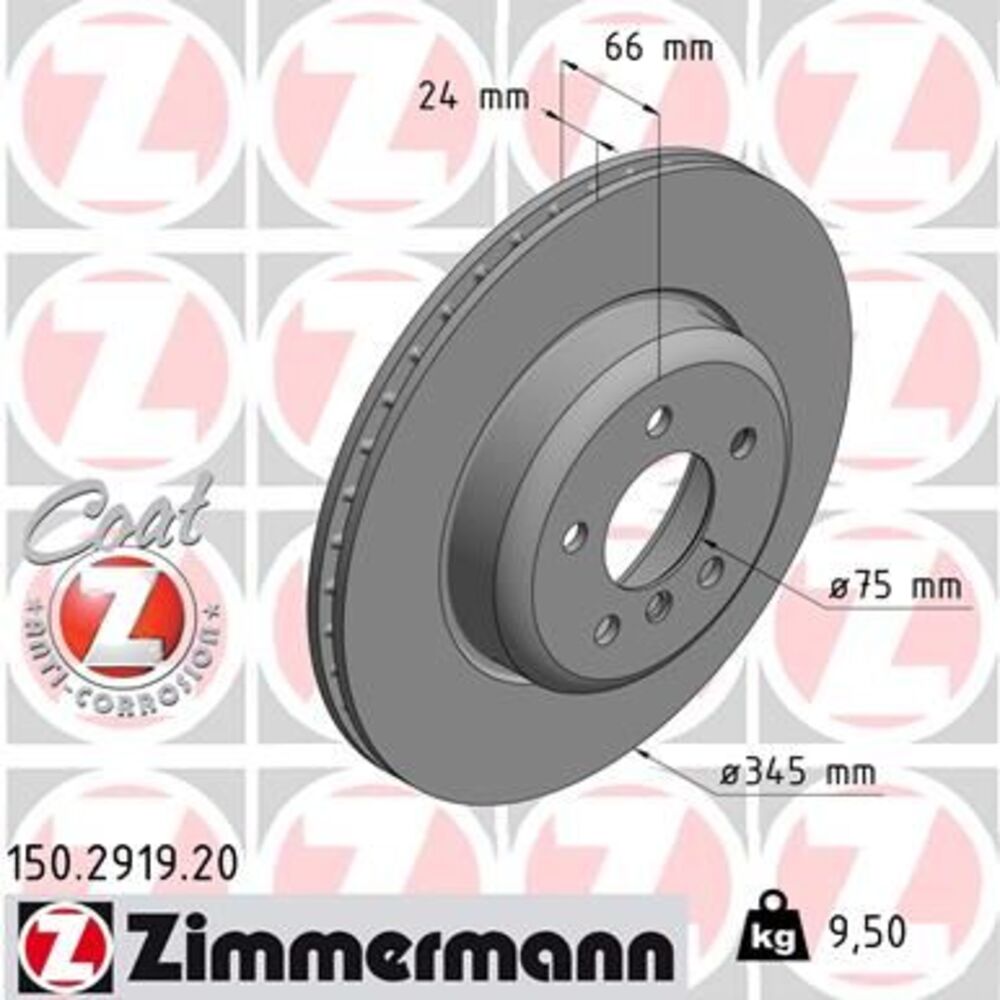

Zimmermann 150.2919.20 is a pair of internally vented brake discs (rotors). Each disc is 345 mm in diameter and 24 mm thick when new, with a 66 mm hat height. The minimum (discard) thickness is 22.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 75 mm centre bore. Each disc has an integrated 185 mm handbrake drum. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3420 6 797 607. Confirmed to fit 39 Australian-market variants; the full list is in the fitment table on this page.
