Zimmermann 340mm Brake Disc Set (2 pcs) 600.3243.20
Part No. 600.3243.20
Check this part fits your car
Select your vehicle and we will confirm it against the 109 variants listed for this part.
$498.00
incl. GST
Front axle
340 x 30 mm
Fits 109 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter340 mm
Thickness when new30 mm
Height50 mm
Stud holes5
Stud circle (PCD)112 mm
Centre bore65 mm
ApprovalECE R90 approved
Minimum (discard) thickness27 mm
Part weight10.7 kg
Hole pattern10/5
OE & OEM cross-reference
Supplier part number
600.3243.20
Fits OE / OEM numbers
5QN 615 301 A
5Q0 615 301 G
5Q0 615 301 C
8S0 615 301
1K0 615 301 AD
3C0 615 301 C
3C0 615 301 D
Vehicle fitment
109 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| AUDI A3 | 8V1, 8VK | 1.4 TFSI | 2012–2014 | 90 kW |
| AUDI A3 | 8V1, 8VK | 1.8 TFSI | 2012–2016 | 132 kW |
| AUDI A3 | 8V1, 8VK | 2.0 TDI | 2012–2017 | 110 kW |
| AUDI A3 | 8V1, 8VK | 1.8 TFSI quattro | 2012–2016 | 132 kW |
| AUDI A3 | 8V1, 8VK | S3 quattro | 2013–2014 | 206 kW |
| AUDI A3 | 8V1, 8VK | 1.4 TFSI | 2013–2016 | 103 kW |
| AUDI A3 | 8V1, 8VK | 1.6 TDI | 2013–2017 | 81 kW |
| AUDI A3 | 8V1, 8VK | 1.4 TFSI | 2014–2016 | 92 kW |
| AUDI A3 | 8V1, 8VK | 1.4 TSI | 2014–2017 | 110 kW |
| AUDI A3 | 8V1, 8VK | S3 quattro | 2014–2016 | 210 kW |
Product overview

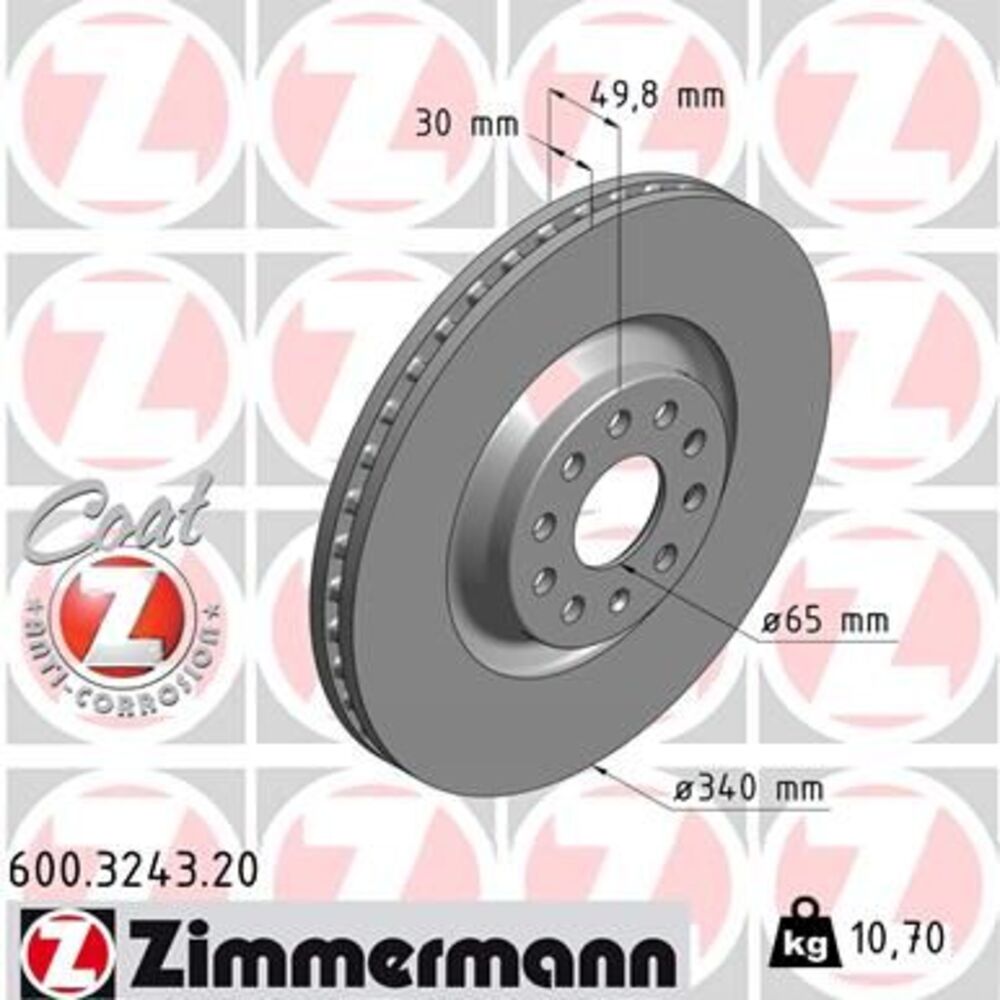

Zimmermann 600.3243.20 is a pair of internally vented brake discs (rotors). Each disc is 340 mm in diameter and 30 mm thick when new, with a 50 mm hat height. The minimum (discard) thickness is 27 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 65 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to VAG OE 5QN 615 301 A and 6 other OE numbers. Confirmed to fit 109 Australian-market variants; the full list is in the fitment table on this page.
