Zimmermann 370mm Brake Disc Set (2 pcs) 150.2911.20
Part No. 150.2911.20
Check this part fits your car
Select your vehicle and we will confirm it against the 22 variants listed for this part.
$646.00
incl. GST
Front axle
370 x 30 mm
Fits 22 vehicle variants
Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.
Estimate delivery date and cost
Technical specification
Disc typeInternally vented
Iron gradeHigh-carbon cast iron
Surface finishCorrosion-protective coating
Outside diameter370 mm
Thickness when new30 mm
Height73 mm
Stud holes5
Stud circle (PCD)120 mm
Centre bore79 mm
ApprovalECE R90 approved
Minimum (discard) thickness28.4 mm
Part weight13.2 kg
Hole pattern6/5
OE & OEM cross-reference
Supplier part number
150.2911.20
Fits OE / OEM numbers
3410 6 797 606
Vehicle fitment
22 variants
| Make & model | Chassis | Variant | Years | Power |
|---|---|---|---|---|
| BMW 3 Series | F30, F80 | 320 i, 328 i | 2011–2018 | 180 kW |
| BMW 3 Series | F30, F80 | 335 i | 2011–2015 | 225 kW |
| BMW 3 Series | F30, F80 | ActiveHybrid | 2012–2015 | 250 kW |
| BMW 3 Series | F30, F80 | 330 i | 2015–2018 | 185 kW |
| BMW 3 Series | F30, F80 | 340 i | 2015–2018 | 240 kW |
| BMW 3 Series Gran Turismo | F34 | 328 i | 2013–2016 | 180 kW |
| BMW 3 Series Gran Turismo | F34 | 330 i | 2016–now | 185 kW |
| BMW 3 Series Touring | F31 | 328 i | 2012–2015 | 180 kW |
| BMW 3 Series Touring | F31 | 330 i | 2015–2019 | 185 kW |
| BMW 4 Series Convertible | F33, F83 | 428 i | 2013–2017 | 180 kW |
Product overview

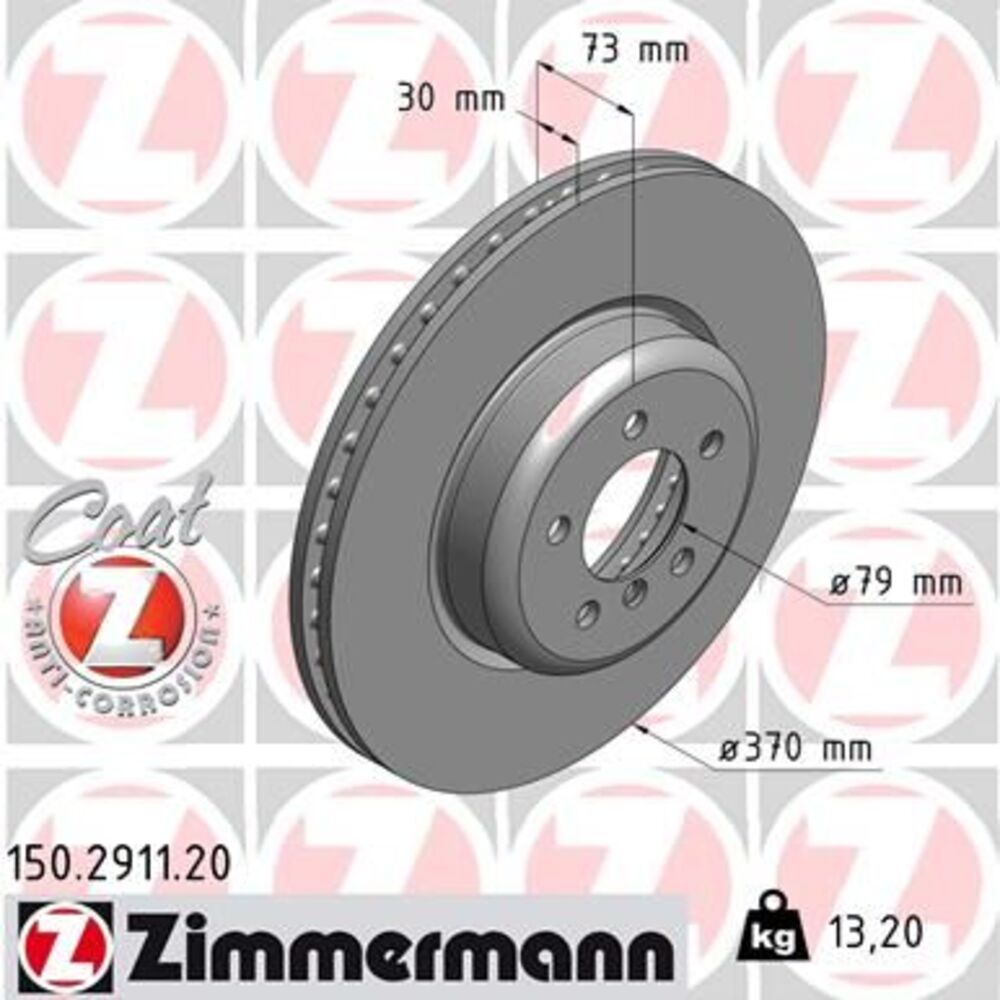

Zimmermann 150.2911.20 is a pair of internally vented brake discs (rotors). Each disc is 370 mm in diameter and 30 mm thick when new, with a 73 mm hat height. The minimum (discard) thickness is 28.4 mm. Each disc has 5 stud holes on a 120 mm stud circle (PCD), with a 79 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to BMW OE 3410 6 797 606. Confirmed to fit 22 Australian-market variants; the full list is in the fitment table on this page.
