Zimmermann 349mm Brake Disc Set (2 pcs) 100.3373.20

Name: Zimmermann 349mm Brake Disc Set (2 pcs) 100.3373.20
Brand: Zimmermann
SKU: ZIM-00011
Price: 618.00 AUD
Availability: InStock

Part No. 100.3373.20

Low stock 4 OE references

Check this part fits your car

Select your vehicle and we will confirm it against the 38 variants listed for this part.

$618.00 incl. GST

Front axle 349 x 34 mm Fits 38 vehicle variants

Manufacturer's warranty Processed within 2 business days 30-day change-of-mind returns

Returned items must be unused and in the original unopened packaging. Return postage is paid by the buyer.

Estimate delivery date and cost

Technical specification

Disc typeInternally vented

Iron gradeHigh-carbon cast iron

Surface finishCorrosion-protective coating

Outside diameter349 mm

Thickness when new34 mm

Height57 mm

Stud holes5

Stud circle (PCD)112 mm

Centre bore68 mm

ApprovalECE R90 approved

Minimum (discard) thickness32 mm

Part weight12.7 kg

Hole pattern6/5

OE & OEM cross-reference

Supplier part number

100.3373.20

Fits OE / OEM numbers

80A 615 301 G 4M0 615 301 AB 4M0 615 301 P 4M0 615 301 AN

Vehicle fitment

38 variants

Make & model	Chassis	Variant	Years	Power
Audi A4 Allroad B9	8WH, 8WJ	2.0 TDI quattro	2016–now	140 kW
Audi A4 Allroad B9	8WH, 8WJ	2.0 TFSI quattro	2016–now	185 kW
Audi A4 B9	8W2, 8WC	2.0 TFSI quattro	2015–now	185 kW
Audi A4 B9	8W2, 8WC	2.0 TFSI, 2.0 TFSI Ambiente Attraction Launch Edition	2015–now	140 kW
Audi A4 B9	8W2, 8WC	1.4 TFSI	2015–2019	110 kW
Audi A4 B9	8W2, 8WC	2.0 TDI quattro	2015–2019	140 kW
Audi A4 B9	8W2, 8WC	S4 quattro	2016–now	260 kW
Audi A4 B9	8W2, 8WC	35 TFSI Mild Hybrid	2018–now	110 kW
Audi A4 B9 Avant	8W5, 8WD	2.0 TFSI quattro	2015–2019	185 kW
Audi A4 B9 Avant	8W5, 8WD	2.0 TFSI, 2.0 TFSI Ambiente	2015–now	140 kW
Audi A4 B9 Avant	8W5, 8WD	S4 quattro	2016–2019	260 kW
Audi A5	F53, F5P	2.0 45 TFSI quattro, 2.0 TFSI quattro	2016–now	185 kW
Audi A5	F53, F5P	S5 quattro	2016–now	260 kW
Audi A5	F53, F5P	2.0 40 TFSI, 2.0 TFSI	2016–now	140 kW
Audi A5	F53, F5P	2.0 TDI quattro	2016–now	140 kW
Audi A5 Convertible	F57, F5E	S5 quattro	2017–now	260 kW
Audi A5 Sportback	F5A, F5F	2.0 45 TFSI quattro, 2.0 TFSI quattro	2016–now	185 kW
Audi A5 Sportback	F5A, F5F	S5 quattro	2016–now	260 kW
Audi A5 Sportback	F5A, F5F	2.0 TDI quattro	2016–now	140 kW
Audi A5 Sportback	F5A, F5F	2.0 40 TFSI, 2.0 TFSI	2017–now	140 kW
Audi A6 C8	4A2	55 TFSi Mild Hybrid quattro	2018–now	250 kW
Audi A6 C8	4A2	45 TFSI Mild Hybrid quattro	2018–now	180 kW
Audi Q5	FYB, FYG	2.0 TDI quattro	2016–2018	140 kW
Audi Q5	FYB, FYG	2.0 TFSI quattro	2016–now	185 kW
Audi Q5	FYB, FYG	SQ5 TFSI quattro	2016–now	260 kW
Audi Q5	FYB, FYG	40 TDI quattro	2018–now	140 kW
Audi Q5	FYB, FYG	45 TFSI Mild Hybrid quattro	2018–now	180 kW
Audi Q5	FYB, FYG	50 TDI quattro	2019–2020	210 kW
Audi Q7	4MB, 4MG	3.0 TDI quattro	2015–2019	200 kW
Audi Q7	4MB, 4MG	3.0 TDI quattro	2015–2019	160 kW
Audi Q7	4MB, 4MG	3.0 TDI e-tron quattro	2015–2019	275 kW
Audi Q7	4MB, 4MG	SQ7 TDI quattro	2016–2019	320 kW
Audi Q7	4MB, 4MG	45 TDI Mild Hybrid quattro	2018–now	170 kW
Audi Q7	4MB, 4MG	50 TDI Mild Hybrid quattro	2018–now	210 kW
Audi Q7	4MB, 4MG	55 TFSI Mild Hybrid quattro	2019–now	250 kW
VW Touareg	CR7	3.0 TDI 4motion	2017–now	210 kW
VW Touareg	CR7	3.0 TDI 4motion	2018–now	170 kW
VW Touareg	CR7	4.0 V8 TDI 4motion	2019–now	310 kW
No vehicles match your search.

Product overview

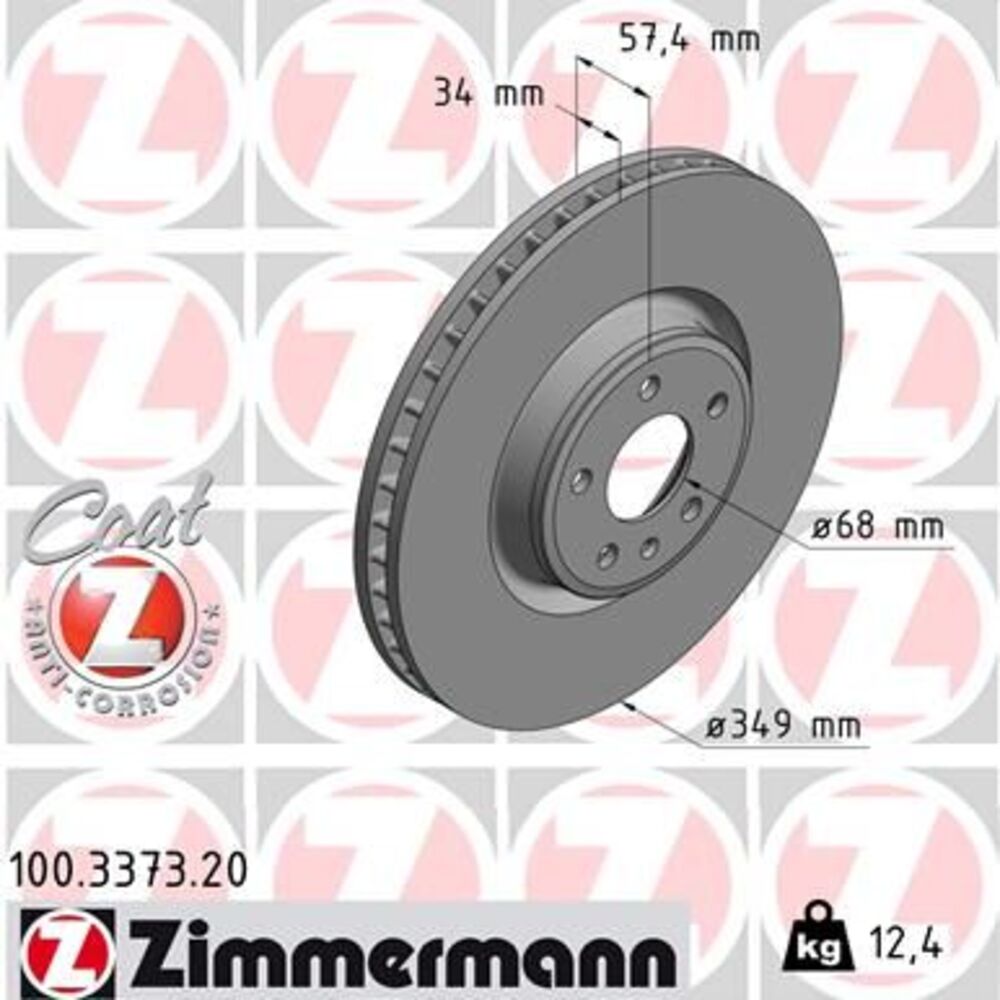

Zimmermann 100.3373.20 is a pair of internally vented brake discs (rotors). Each disc is 349 mm in diameter and 34 mm thick when new, with a 57 mm hat height. The minimum (discard) thickness is 32 mm. Each disc has 5 stud holes on a 112 mm stud circle (PCD), with a 68 mm centre bore. The discs are coated for corrosion protection and made from high-carbon cast iron. They are ECE R90 approved, the European type-approval standard for replacement brake parts. Cross-referenced to VAG OE 80A 615 301 G and 3 other OE numbers. Confirmed to fit 38 Australian-market variants; the full list is in the fitment table on this page.
